Detailed Product Description
Name: Doorknob Ceramic Capacitor Voltage: 100KV
Capacitance: 675PF Dielectric: Y5T
Color: Red Tolerance: ±10%

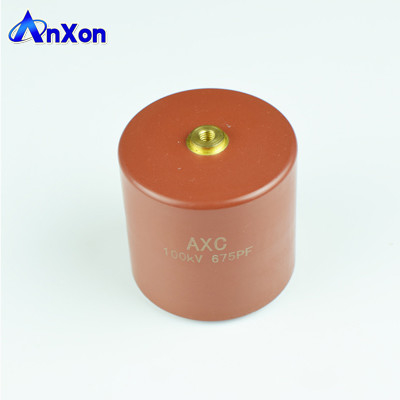

AXCT8G100D6750KDB Y5T Capacitor 100KV 675PF Smart grid capacitor



High Voltage Ceramic Capacitor, Molded type Ultra-high Voltage Ceramic Capacitors offered by AnXon Electronic, high quality ceramic capacitor supplier



Rated Spec: 100KV 675PF, 100KV 675
Tolerance: K ±10%, J ±5% available on request
Type: Molded / Doorknob / Screw Mounting
Ceramic Dielectric : Y5T
Operating Temperature: -35C ~ 85C
Size / Dimension(ΦD×T*F): D: 52mm, T: 50mm, H: 54mm, M5



Product features


AXCT8G100D6750KDB Y5T Capacitor 100KV 675PF Smart grid capacitor



High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage. voltage from 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV, etc. Used for various AC and DC high voltage circuit applications.



Common types of class 1 ceramic materials are: NPO, C0G, UJ, SL, N4700, etc. The temperature coefficient of these type is quite good. There is a linear relationship of temperature and capacitance. Frequency characteristics and voltage characteristics are also very good, but because the dielectric constant is small, it not suitable to make large capacitance capacitors.



The common types of class 2 ceramic materials are: Y5R, Y5P, Y5T, Y5S, Y5U, Y5V, etc. The temperature coefficient of these ceramic material is non-linear, and the capacity can be quite large, However, the frequency and temperature are not constant.



AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.



AXCT8G100D6750KDB Y5T Capacitor 100KV 675PF Smart grid capacitor



The Cylindrical ultra high voltage ceramic capacitors of the AnXon CT8G series have been widely used in power transmission and distribution system power equipment and pulse energy processing equipment such as: power compensation, current limiting, filtering, metering, energy storage and distribution. The particularity of the power system: AC high voltage, high frequency, in the outdoor environment (-40°C to +60°C), lightning strike, high current, etc. In harsh environments, the capacitor is required to have super stability, ie The rate of change is small; at the same time, the measurement, the voltage, etc., require high precision, which places extremely severe demands on the partial discharge of high voltage ceramic capacitors under such circumstances. AnXon high voltage ceramic capacitors have excellent charge and discharge performance, high withstand voltage, good frequency characteristics, can withstand high impulse voltage, ultra low partial discharge characteristics, and AC and DC applications for customers to choose.



High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:



• Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc

• Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc

• Impulse Voltage: 45KVdc-225KVdc

• Capacitance Range: 10pF - 100000pF

• Operating frequency: 20KHZ-1000KHZ

• Materials: K100, K150, K300, K650, K850, K1000, K1500, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V



High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer.



More related specifications



Part Number Dielectric Rated Spec Remark Dimensions(mm)
D T H M
AXCT8G100D6750KDB Y5T 100KV 675PF DC 52 50 54 5
AXCT8GDL751K100DB Y5T 100KV 750PF DC 55 54 58 5
AXCT8G100D8250KDB Y5T 100KV 825PF DC 55 54 58 5
AXCT8GD102K100DB Y5T 100KV 1000PF DC 55 54 58 5
AXCT8GD162K100DB Y5T 100KV 1600PF DC 150KV BIL 60 54 58 5
AXCT8GD202K100DB Y5T 100KV 2000PF DC 70 52 56 5
AXCT8G100D302KDB Y5T 100KV 3000PF DC 80 48 52 8
AXCT8GD332K100DB Y5T 100KV 3300PF DC 125KV BIL 80 48 52 8
AXCT8G100D402KDC K5000 100KV 4000PF DC 80 52 56 8
AXCT8G100D502KDT K6500 100KV 5000PF DC 80 51 55 8
AXCT8G100D502KDB K3500 100KV 5000PF DC 105 52 56 8
AXCT8G150D203KDC Y5T

150KV 20000PF

20NF 0.02UF

DC 280 360 400 ---


Product types



AnXon offers a variety of conventional ultra high voltage ceramic capacitors, but also can customize a variety of special-shaped capacitors according to customer requirements



AXCT8G100D6750KDB Y5T Capacitor 100KV 675PF Smart grid capacitor



Quick Select guide of mainly used ceramic dielectric



Dielectric class SL N4700 Y5T Y5S
Operating temperature range (ºC) -30/+85°C -30/+85°C -30/+85°C -30/+85°C
Capacitance change with temperature (%) +/-650PPM/°C +22/-33% +22/-33% +22/-22%
Typical dielectric constant 150~1000 1850~2150 2500~6500 3500~4500
Dielectric strength (kVDC/mm) 8.0 8.0 6.0 6.0
Dissipation factor (1kHz/1VRMS/20ºC) 0.06% 0.10% 0.20% 0.20%
Insulation resistance (1000VD/20ºC/60s) >1000GΩ >100GΩ >100GΩ >100GΩ
Rated voltage (UR) 10 to 150kVdc 10 to 150kVdc 10 to 150kVdc 10 to 150kVdc
Test voltage (UTT) (50Hz, in oil, 60s) 12 to 100kVrms 12 to 100kVrms 12 to 100kVrms 12 to 100kVrms
Impulse voltage(UI) 35 to 200kVdc 35 to 200kVdc 35 to 200kVdc 35 to 200kVdc
Capacitance range (20ºC – 1kHz – 1VRMS) 10pF to 500pF 10pF to 5600pF 10pF to 0.02uF 10pF to 0.02uF
Tolerance Standard: ±10% Standard: ±10% Standard: ±10% Standard: ±10%



Product applications



1. Used for high power pulse power supply, particle accelerator, electromagnetic microwave equipment, laser photoelectric equipment, electronic information equipment, radar detection, non-destructive testing X_RAY / CT machinery, material detection, electrostatic precipitator electric field, various types of special pulse power supply.

2. Supply of electricity, acceptance of interrupters of electrical equipment, zero-phase detection, breakers, surge arresters, voltage divider elements of high-voltage measurement equipment, and other circuits that use AC high voltage.

3. High voltage power supply circuit for laser equipment, directional energy/high-energy laser source.

4. High voltage power circuits or other DC high-voltage power circuits for various measurement devices.

5. Power storage, voltage divider and protection circuit.



High voltage doorknob ceramic capacitor applications



• Gas lasers

• High-voltage dividers

• Marx generators, Power generators

• High-voltage power supply, DC HV power supplies

• High-voltage coupling devices

• Power line coupling system for Internet & Telecom

• Lightning arresters, voltage distribution systems

• Electron microscopes, synchroscopes

• Electrostatic coating machines



High voltage doorknob ceramic capacitor Features



• Excellent behavior on pulse and fast discharge conditions

• Low dissipation factor

• Very low partial discharge

• Excellent voltage characteristic

• Molded type, Screw or Axial Leads available

• Coated and uncoated devices available



Quality control



High voltage doorknob ceramic capacitor from AnXon are 100% tested of the below parameters

• Capacitance

• Tolerance

• Dielectric withstanding voltage

• Dissipation Factor

• Insulation Resistance

• Partial discharge: as requested

• impulse voltage: sampling

Rigorous design standards, sophisticated production equipment, advanced production technology, and rigorous testing procedures are the quality assurance of AnXon ultra high voltage ceramic capacitors, and it is also the core of our continuous development and growth. Process and inspection data are maintained on file and available upon special request.
