HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor

China HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor supplier
HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor supplier HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor supplier HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor supplier HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor supplier HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor supplier HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor supplier

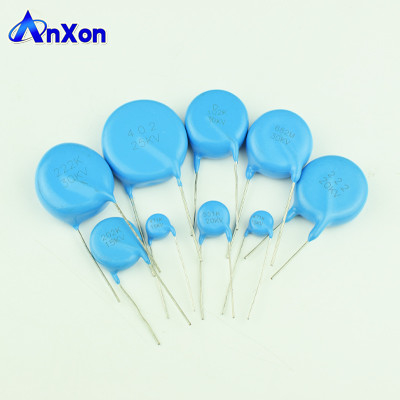

Large Image :  HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor

Product Details:

Place of Origin: China
Brand Name: AnXon
Certification: RoHS/CE/ISO9000
Model Number: CT81

Payment & Shipping Terms:

Packaging Details: Plastic Bag + Box + Carton
Payment Terms: Western Union, D/P, T/T, L/C
Contact Now
Detailed Product Description
Type: Radial Lead Disc Type Color: Blue
Name: Radial Lead Disc Ceramic Capacitor Certificate: RoHS/CE/ISO9000
Package Type: Through Hole Terminal: Wire Lead
Operating Temp: -40C ~ +85C

Product Description
HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor



High Voltage Ceramic Capacitor, Radial lead blue coating epoxy resin disc ceramic capacitor offered by AnXon Electronic, high quality ceramic capacitor supplier

Rated Spec:
 15KV 500PF, 15KV 501
Tolerance:

 K ±10%, J ±5% available on request

Type:

 Radial leaded / disc / THT through hole mounting

Ceramic Dielectric :

 N4700

Operating Temperature:

 -40C ~ 85C

Size / Dimension(ΦD×T*F):

 D:17mm, T:10mm, F:15mm

High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage. Used for various AC and DC high voltage circuit applications.

AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.

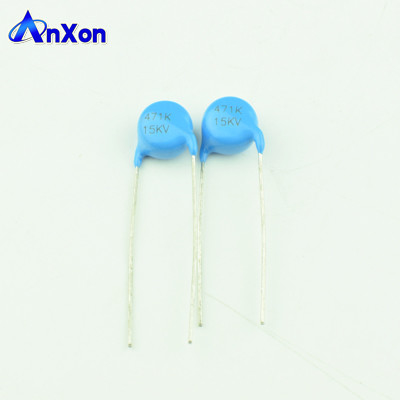

HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor



Ultra High Voltage Ceramic Disc Capacitors



AnXon designs and manufactures high quality ultra high voltage disc ceramic capacitors with blue coating epoxy resin, custom design radial lead disc ceramic capacitors as well as a variety of standard and custom High Voltage & High Capacitance value Ceramic Capacitors.

• Rated Voltage (V): 1KVdc-50KVdc
• Capacitance Range: 10pF - 10000pF
• Operating frequency: 20KHZ-1000KHZ
• Materials: K100, K300, K2500, K3500, K5000, NPO, C0G, SL, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V, Z5U, Z5V

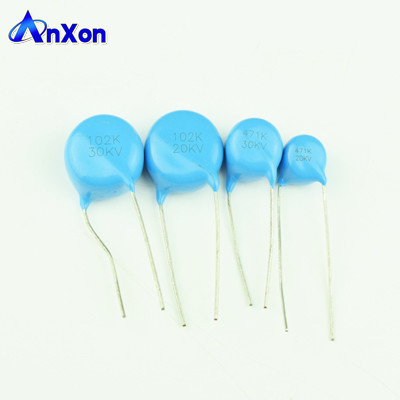

HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor



More related specifications



Custom design radial lead disc ceramic capacitors are available from AnXon electronic, please contact us for details


Capacitor

code

Ceramic Dielectric



Rated Voltage
(kVdc)

Capacitance Max (mm)

C

(pF)

TOL.

(%)

D T F d
15KV 101 N4700 15 100 10 07 7 10 0.65
15KV 221 Y5T 15 220 10 09 7.5 10 0.65
15KV 331 Y5T 15 330 10 09 8 10 0.65
15KV 471 Y5T 15 470 10 11 7 10 0.65
15KV 501 N4700 15 500 10 17 10 15 1.0
15KV 102 N4700 15 1000 10 21 8 12.5 0.8

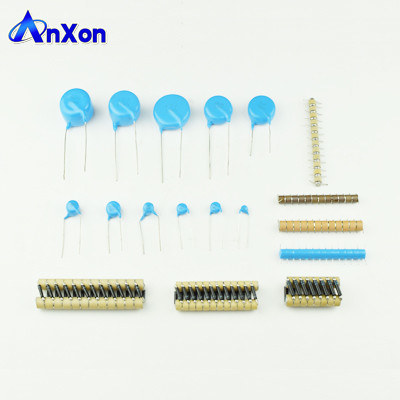

HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor
HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor
HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor



Products Application



High voltage capacitors are specially designed for high voltage applications, such as:

• DC-DC converters, Voltage multipliers,
• Radio and TV receiver, Modems, Interfaces, TV and monitors
• Other electrical appliances where high voltage is present
• High voltage power supplies, HV power supplies
• Electrostatic coating, Arc spray and sputtering, Electrostatic cleaning power supplies, Ion       generator power sources
• X-ray equipment, medical machine



HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor



Quality Control



High voltage radial lead disc ceramic capacitor from AnXon are 100% tested of the below parameters

• Capacitance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance



HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor



Certifications



HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor



Our Company



Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia.



HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor
HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor
HV Disc Condenser 15KV 500PF 501 High voltage plates use ceramic capacitor



Caution Notice



Caution (Rating)

1. Operating Voltage
When DC-rated capacitors are to be used in AC or ripple current circuits, be sure to maintain the Vp-p value of the applied voltage or the Vo-p which contains DC bias within the rated voltage range.When the voltage is applied to the circuit, starting or stopping may generate irregular voltage for a transit period because of resonance or switching. Be sure to use a capacitor with a rated voltage range that includes these irregular voltages.



2. Operating Temperature and Self-generated Heat

Keep the surface temperature of a capacitor below the upper limit of its rated operating temperature range. Be sure to take into account the heat generated by the capacitor itself. When the capacitor is used in a high frequency current, pulse current or similar current, it may self-generate heat due to dielectric loss. The applied voltage load should be such that the capacitor's self generated heat is within 10°C at an atmosphere temperature of 25°C.


Notice (Rating)


Capacitance change of capacitor


1. Class 1 capacitors
Capacitance might change a little depending on the surrounding temperature or an applied voltage. Please contact us if you intend to use this product in a strict time constant circuit.



2. Class 2 and 3 capacitors
Class 2 and 3 capacitors with temperature characteristics B, E and F have an aging characteristic, whereby the capacitor continually decreases its capacitance slightly if the capacitor is left on for a long time. Moreover, capacitance might change greatly depending on the surrounding temperature or an applied voltage. So, it is not likely to be suitable for use in a time constant circuit. Please contact us if you need detailed information.
