Product Details:

Place of Origin: China
Brand Name: AnXon
Certification: RoHS/CE/ISO9000
Model Number: CT81

Payment & Shipping Terms:

Packaging Details: Plastic Bag + Box + Carton
Payment Terms: Western Union, D/P, T/T, L/C
Contact Now
Detailed Product Description
Type: Radial Lead Disc Type Color: Blue
Name: Radial Lead Disc Ceramic Capacitor Certificate: RoHS/CE/ISO9000
Package Type: Through Hole Terminal: Wire Lead
Operating Temp: -40C ~ +85C

Product Description
615R100GASD10 Y5U Capacitor 10KV 1000PF 102 Disc capacitor with epoxy coating



High Voltage Ceramic Capacitor, Radial lead blue coating epoxy resin disc ceramic capacitor offered by AnXon Electronic, high quality ceramic capacitor supplier

Rated Spec:
 10KV 1000PF, 10KV 102
Tolerance:

 K ±10%, J ±5% available on request

Type:

 Radial leaded / disc / THT through hole mounting

Ceramic Dielectric :

 Y5U

Operating Temperature:

 -40C ~ 85C

Size / Dimension(ΦD×T*F):

 D:17.3mm, T:8.4mm, F:12.7mm

High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage. Used for various AC and DC high voltage circuit applications.

AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.

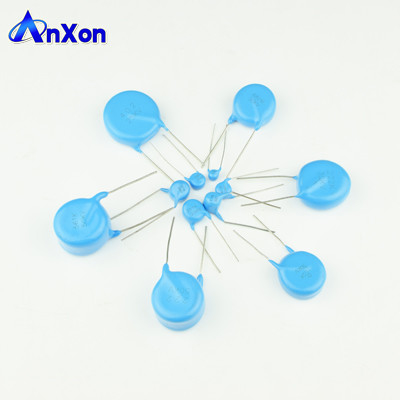

615R100GASD10 Y5U Capacitor 10KV 1000PF 102 Disc capacitor with epoxy coating



Ultra High Voltage Ceramic Disc Capacitors



AnXon designs and manufactures high quality ultra high voltage disc ceramic capacitors with blue coating epoxy resin, custom design radial lead disc ceramic capacitors as well as a variety of standard and custom High Voltage & High Capacitance value Ceramic Capacitors.

• Rated Voltage (V): 1KVdc-50KVdc
• Capacitance Range: 10pF - 10000pF
• Operating frequency: 20KHZ-1000KHZ
• Materials: K100, K300, K2500, K3500, K5000, NPO, C0G, SL, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V, Z5U, Z5V

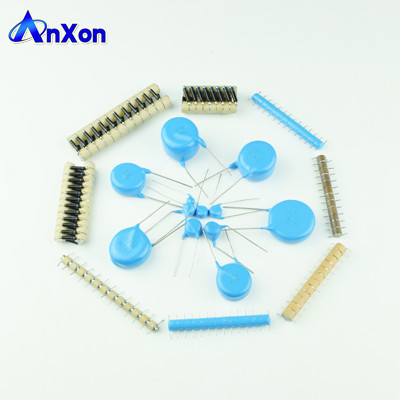

615R100GASD10 Y5U Capacitor 10KV 1000PF 102 Disc capacitor with epoxy coating



More related specifications



Custom design radial lead disc ceramic capacitors are available from AnXon electronic, please contact us for details

Rated Voltage
(kVdc)
Dielectric Capacitance Dimensions (mm) Part Number
C (pF) Tol (%) D (max) T (max) F (max)
10 N4700 250 ±20 12.4 7.4 9.5 615R100GATT25
500 17.3 8.1 12.7 615R100GATT50
680 19.1 7.6 615R100GATT68
820 20.6 615R100GATT82
1000 24.9 8.1 615R100GATD10
Y5U 1000   17.3 8.4 12.7 615R100GASD10
Z5U 2500 + 80/- 20 19.1 8.9 12.7 615R100GAD25
3300 24.9 9.9 615R100GAD33

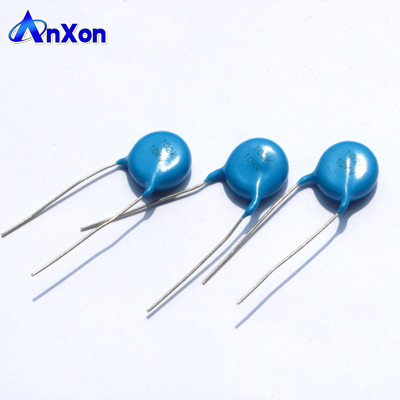

615R100GASD10 Y5U Capacitor 10KV 1000PF 102 Disc capacitor with epoxy coating

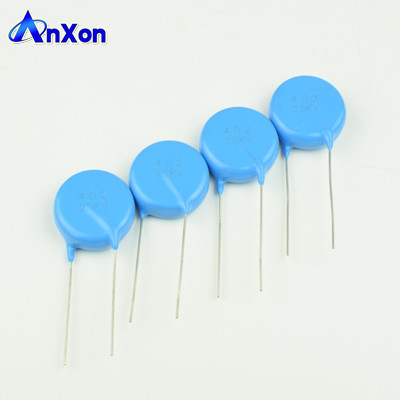

615R100GASD10 Y5U Capacitor 10KV 1000PF 102 Disc capacitor with epoxy coating

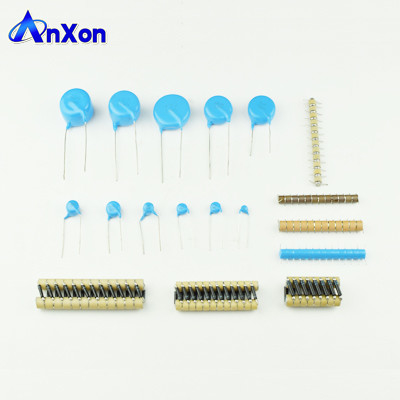

615R100GASD10 Y5U Capacitor 10KV 1000PF 102 Disc capacitor with epoxy coating



Products Application



High voltage capacitors are specially designed for high voltage applications, such as:

• DC-DC converters, Voltage multipliers,
• Radio and TV receiver, Modems, Interfaces, TV and monitors
• Other electrical appliances where high voltage is present
• High voltage power supplies, HV power supplies
• Electrostatic coating, Arc spray and sputtering, Electrostatic cleaning power supplies, Ion       generator power sources
• X-ray equipment, medical machine



615R100GASD10 Y5U Capacitor 10KV 1000PF 102 Disc capacitor with epoxy coating



Quality Control



High voltage radial lead disc ceramic capacitor from AnXon are 100% tested of the below parameters

• Capacitance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance



615R100GASD10 Y5U Capacitor 10KV 1000PF 102 Disc capacitor with epoxy coating



Certifications



615R100GASD10 Y5U Capacitor 10KV 1000PF 102 Disc capacitor with epoxy coating



Our Company



Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia.



615R100GASD10 Y5U Capacitor 10KV 1000PF 102 Disc capacitor with epoxy coating
615R100GASD10 Y5U Capacitor 10KV 1000PF 102 Disc capacitor with epoxy coating
615R100GASD10 Y5U Capacitor 10KV 1000PF 102 Disc capacitor with epoxy coating



Caution Notice



Caution (Rating)

1. Operating Voltage
When DC-rated capacitors are to be used in AC or ripple current circuits, be sure to maintain the Vp-p value of the applied voltage or the Vo-p which contains DC bias within the rated voltage range.When the voltage is applied to the circuit, starting or stopping may generate irregular voltage for a transit period because of resonance or switching. Be sure to use a capacitor with a rated voltage range that includes these irregular voltages.



2. Operating Temperature and Self-generated Heat

Keep the surface temperature of a capacitor below the upper limit of its rated operating temperature range. Be sure to take into account the heat generated by the capacitor itself. When the capacitor is used in a high frequency current, pulse current or similar current, it may self-generate heat due to dielectric loss. The applied voltage load should be such that the capacitor's self generated heat is within 10°C at an atmosphere temperature of 25°C.


Notice (Rating)


Capacitance change of capacitor


1. Class 1 capacitors
Capacitance might change a little depending on the surrounding temperature or an applied voltage. Please contact us if you intend to use this product in a strict time constant circuit.



2. Class 2 and 3 capacitors
Class 2 and 3 capacitors with temperature characteristics B, E and F have an aging characteristic, whereby the capacitor continually decreases its capacitance slightly if the capacitor is left on for a long time. Moreover, capacitance might change greatly depending on the surrounding temperature or an applied voltage. So, it is not likely to be suitable for use in a time constant circuit. Please contact us if you need detailed information.
