Detailed Product Description
Name: Capacitor & Diode Multiplier Module Rated Voltage: 8KV, 10KV, 12KV, 15KV, 20KV, 25KV, 30KV
Capacitance: 220PF,250pF,330PF,470pF,500pF,1000pF,2400pF,others No. Of Capacitors: 4,5,6,8,10,12, Others
Capacitance Tolerance: 10%(K) Output Voltage: 40kV~150kV
Brand: AnXon Material: Y5T,Y5U,others

Product Description

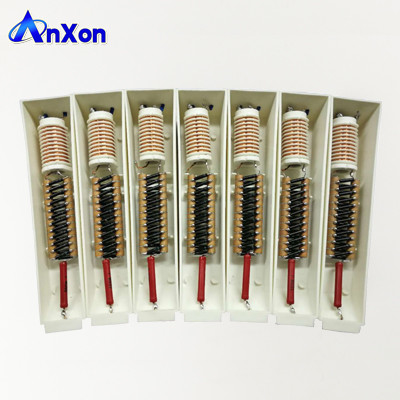

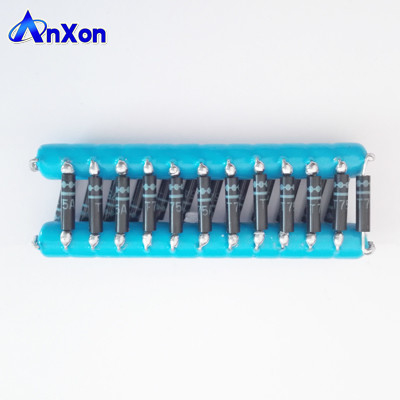

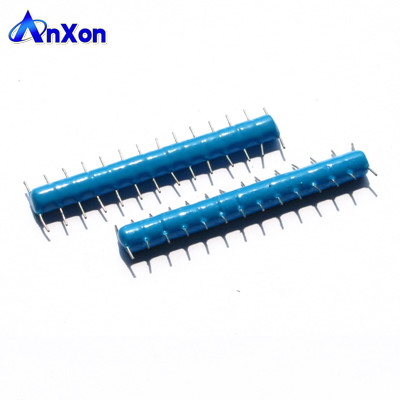

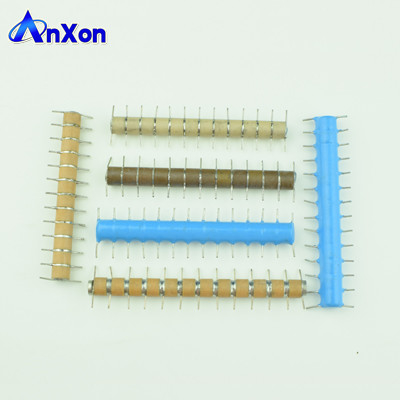

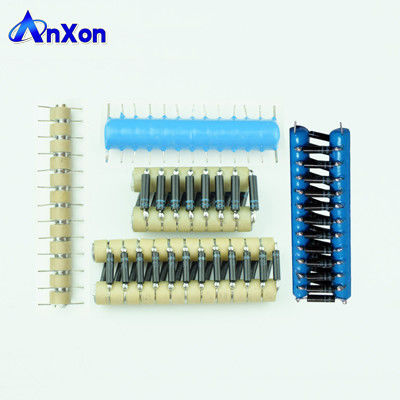

15KV 220PF customized High voltage capacitor arrays with 2CL74 diode



Specifications

1, Multiple designs up to 12 stages
2, Voltage ratings of the individual discs from 8 kVdc to 30 kVdc
3, Capacitance ratings of the individual discs from 100pF to 2400pF
4, Stacks with diodes, Other versions on request
5, Small size, Lead (Pb)-free version on request

15KV 220PF customized  High voltage capacitor arrays with 2CL74 diode
15KV 220PF customized  High voltage capacitor arrays with 2CL74 diode

AnXon provide high quality customized ceramic capacitor stacks and High Voltage Ceramic Capacitor Multiplier Sets, Please see below table to select our standard parts.

All the capacitance, voltage, number of stacks, diodes specs can be as your request,

Individual
discs
Capacitance
Individual
discs
Voltage
Number of
Stacks
Ceramic
Dielectric
Diode
for Multiplier
100pF


8kV

10kV

12kV

15kV

20kV

25kV

30kV

others



4 stacks

5 stacks

6 stacks

8 stacks

10 stacks

12 stacks

others





N4700

Y5T

Y5U

others



2CL73 12kV 5mA

2CL74 14kV 5mA

2CL75 16kV 5mA

2CL76 18kV 5mA

2CL77 20kV 5mA

JB99T 20kV 20mA

HVRT150 15kV 30mA

HVRT200 20kV 30mA

others
150pF
220pF
250pF
280pF
310pF
330pF
350pF
470pF
500pF
1000pF
2200pF
2400pF

15KV 220PF customized  High voltage capacitor arrays with 2CL74 diode
15KV 220PF customized  High voltage capacitor arrays with 2CL74 diode




Products Application



Ceramic capacitor stacks have been developed for use in low power voltage multipliers used in high voltage DC generators. The major applications are x-ray equipment for medical diagnostics or electrostatic paint spraying equipment.



HV Voltage Multiplier Unit Application Guide
The major applications are x-ray equipment for:
• Medical diagnosis
• Dentistry x-ray application
• Industrial x-ray for material control
• Airport security x-ray scanner
• Low power voltage multipliers
• High voltage DC generators.
• X-ray equipment for medical diagnostics
Electrostatic paint spraying equipment.



15KV 220PF customized  High voltage capacitor arrays with 2CL74 diode





Quality Control



High voltage radial lead disc ceramic capacitor from AnXon are 100% tested of the below parameters

• Capacitance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance



15KV 220PF customized  High voltage capacitor arrays with 2CL74 diode



Certifications
15KV 220PF customized  High voltage capacitor arrays with 2CL74 diode



Our Company



Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia.


15KV 220PF customized  High voltage capacitor arrays with 2CL74 diode
15KV 220PF customized  High voltage capacitor arrays with 2CL74 diode15KV 220PF customized  High voltage capacitor arrays with 2CL74 diode
Caution Notice

Caution (Rating)



1. Operating Voltage

When DC-rated capacitors are to be used in AC or ripple current circuits, be sure to maintain the Vp-p value of the applied voltage or the Vo-p which contains DC bias within the rated voltage range.When the voltage is applied to the circuit, starting or stopping may generate irregular voltage for a transit period because of resonance or switching. Be sure to use a capacitor with a rated voltage range that includes these irregular voltages.
2. Operating Temperature and Self-generated Heat

Keep the surface temperature of a capacitor below the upper limit of its rated operating temperature range. Be sure to take into account the heat generated by the capacitor itself. When the capacitor is used in a high frequency current, pulse current or similar current, it may self-generate heat due to dielectric loss. The applied voltage load should be such that the capacitor's self generated heat is within 10°C at an atmosphere temperature of 25°C.


Notice (Rating)
Capacitance change of capacitor
1. Class 1 capacitors
Capacitance might change a little depending on the surrounding temperature or an applied voltage. Please contact us if you intend to use this product in a strict time constant circuit.
2. Class 2 and 3 capacitors
Class 2 and 3 capacitors with temperature characteristics B, E and F have an aging characteristic, whereby the capacitor continually decreases its capacitance slightly if the capacitor is left on for a long time. Moreover, capacitance might change greatly depending on the surrounding temperature or an applied voltage. So, it is not likely to be suitable for use in a time constant circuit. Please contact us if you need detailed information.

Contact Details
Cixi AnXon Electronic Co., Ltd

Contact Person: Ms. Jenny Lao

Tel: 86-574-63301865

Send your inquiry directly to us (0 / 3000)
