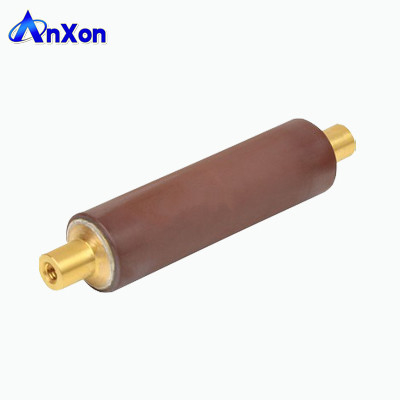

Large Image :  Ultra HV live line Condensateur 24KV 15pf Mining Switchgear Live Line Ceramic Capacitor

Product Details:

Place of Origin: China
Brand Name: China
Certification: RoHs
Model Number: CT85

Payment & Shipping Terms:

Minimum Order Quantity: 10
Delivery Time: 25 to 28 days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 10000pcs / month
Contact Now
Detailed Product Description
Type: AC Ceramic Capacitor Capacitance: 10pF~1000pF
Rated Voltage: 3.6kV~36kV Application: Live Line
Operating Temperature: -30C ~ 85C Partial Discharge: 1PC Min At 50% Of Rated Voltage
Special: Custom Service Is Available

Product Description



Ultra HV live line Condensateur 24KV 15pf Mining Switchgear Live Line Ceramic Capacitor



AnXon provide high quality customized AC live line ceramic capacitors



Ultra HV live line Condensateur 24KV 15pf Mining Switchgear Live Line Ceramic Capacitor



Specifications

Withstanding Voltage

Test

50Hz 1min

Impulse

voltage

Test

1.2/50us

Partial

Discharge

Terminals
24KV 15pf 68KVac 125KVac ≤5pc 26.4KVac M4
24KV 38pf 68KVac 125KVac ≤5pc 26.4KVac M4
24KV 50pf 68KVac 125KVac ≤5pc 26.4KVac M4
24KV 75pf 68KVac 125KVac ≤5pc 26.4KVac M4
24KV 80pf 68KVac 125KVac ≤5pc 26.4KVac M4
24KV 90pf 68KVac 125KVac ≤5pc 26.4KVac M4
24KV 110pf 68KVac 125KVac ≤5pc 26.4KVac M4
24KV 120pf 68KVac 125KVac ≤5pc 26.4KVac M4
24KV 150pf 68KVac 125KVac ≤5pc 26.4KVac M4
35KV 10pf 115KVac 185KVac ≤5pc 44.5KVac M6
35KV 45pf 115KVac 185KVac ≤5pc 44.5KVac M4
36KV 50pf 115KVac 185KVac ≤5pc 44.5KVac M4



Related Products



High voltage ceramic capacitor one stop customized solutions by AnXon



High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage, Excellent behavior on pulse and fast discharge conditions, Low dissipation factor, Very low partial discharge, Coated and uncoated devices available Used for various AC and DC high voltage circuit applications.



Ultra HV live line Condensateur 24KV 15pf Mining Switchgear Live Line Ceramic Capacitor



Product Type



Ultra HV live line Condensateur 24KV 15pf Mining Switchgear Live Line Ceramic Capacitor



Product Applications



High Voltage AC Live Line Ceramic Capacitor Applications



High voltage AC uses live line ceramic capacitor, the main applications include live line indicators, AC dividers, grading systems for power distribution network, protection for HV switches and power circuit breakers.Coupling, by-passing high frequency circuits also use HV ceramic disc capacitors.

Ultra HV live line Condensateur 24KV 15pf Mining Switchgear Live Line Ceramic Capacitor
Quality Control



High Voltage AC Live Line Ceramic Capacitor



High Voltage AC Live Line Ceramic Capacitor from AnXon are 100% tested of the below parameters
• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.



Ultra HV live line Condensateur 24KV 15pf Mining Switchgear Live Line Ceramic Capacitor



Certifications



Ultra HV live line Condensateur 24KV 15pf Mining Switchgear Live Line Ceramic Capacitor



Our Company



Cixi AnXon Electronic Co., Ltd is a proven and reliable capacitor manufacturer and supplier in China with brand of AnXon & AXC, with years rapidly growing, AnXon now become a leader in the R&D, production and sales of high quality Capacitors.

In the year 2010, AnXon acquired Max Capacitor which have 20 years manufacturing experience of high voltage ceramic capacitors, RF power ceramic capacitors, the products are convinced as good cross of the brand AVX, TDK, VISHAY, MURATA by customers in USA, Spain, UK, Switzerland, Germany, Korea, India and etc...

Through 10 years efforts, , AnXon now is the top ten largest subcontractors of film capacitor, aluminum electrolytic capacitor, mica capacitor, tantalum capacitor, super capacitor, vacuum capacitor, high voltage capacitor, high temperature capacitor, high frequency capacitor, DC Link capacitor, filter capacitor, snubber capacitor as well as High Voltage Diodes, RF power tubes and other components. Our powerful R & D make us able to provide high performance Custom Capacitors, we are always ready to help to make your project goes smoothly and your products most competitive. You buy from AnXon not only a component but also a completely solution of your applications.
