Payment & Shipping Terms:
|Type:||AC Ceramic Capacitor||Capacitance:||10pF~1000pF|
|Rated Voltage:||3.6kV~36kV||Application:||Live Line|
|Operating Temperature:||-30C ~ 85C||Partial Discharge:||1PC Min At 50% Of Rated Voltage|
|Special:||Custom Service Is Available|

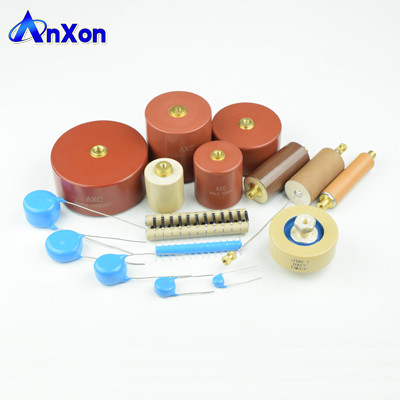

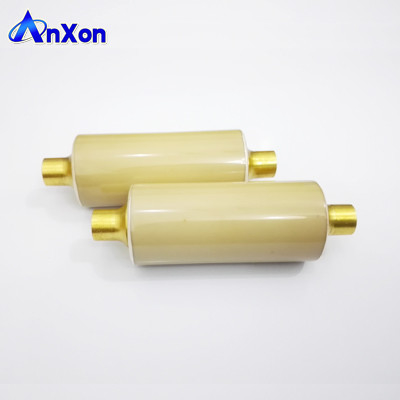

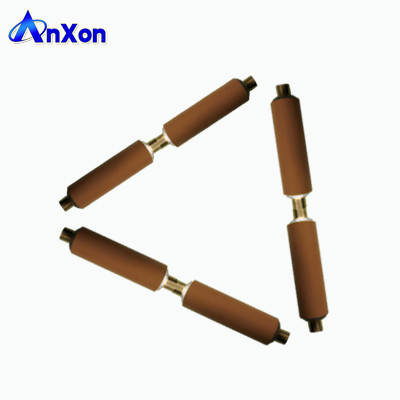

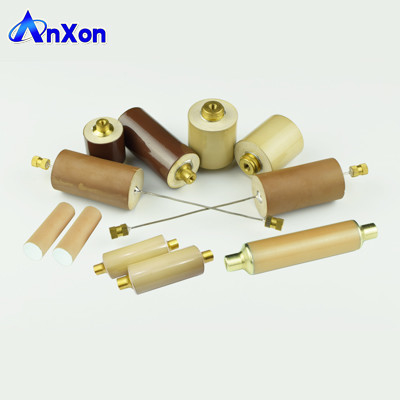

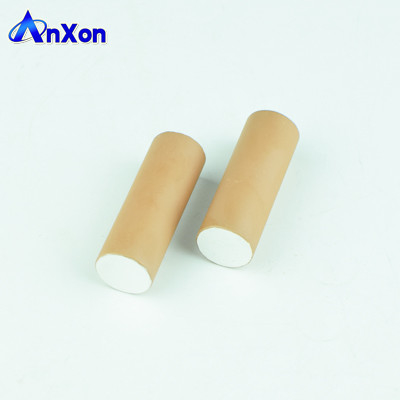

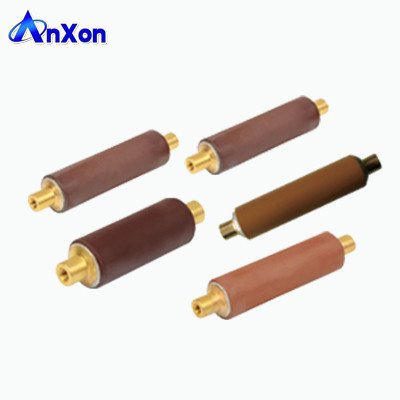

AnXon China supplier Low Dissipation Live Line Ceramic Capacitor
AnXon provide high quality customized AC live line ceramic capacitors
|6KV 40pf||40KVac||60KVac||≤8pc 8KVac||M4|
|6KV 150pf||40KVac||60KVac||≤8pc 8KVac||M4/M6|
|10KV 20pf||50KVac||75KVac||≤8pc 13.5KVac||M4|
|10KV 80pf||60KVac||95KVac||≤3pc 15KVac||M4|
|10KV 100pf||50KVac||75KVac||≤8pc 13.5KVac||M4/M6|
|10KV 120pf||60KVac||95KVac||≤3pc 15KVac||M4|
|10KV 125pf||50KVac||75KVac||≤8pc 13.5KVac||M4|
|10KV 200pf||50KVac||75KVac||≤8pc 13.5KVac||M4|
|10KV 500pf||60KVac||95KVac||≤3pc 15KVac||M4|
|24KV 15pf||80KVac||125KVac||≤5pc 32KVac||M4/M6|
|24KV 80pf||80KVac||125KVac||≤5pc 32KVac||M4/M6|
|24KV 280pf||75KVac||125KVac||≤3pc 32kVAC||M4/M6|
|24KV 500pf||75KVac||125KVac||≤3pc 32kVAC||M4/M6|
|35KV 10pf||110KVac||150KVac||≤8pc 45kVAC||M4/M6|
|35KV 45pf||110KVac||150KVac||≤8pc 45kVAC||M4/M6|
|35KV 45pf||135KVac||185KVac||≤8pc 45kVAC||M4/M6|
|35KV 45pf||190KVac||225KVac||≤8pc 45kVAC||M4/M6|
High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage, Excellent behavior on pulse and fast discharge conditions, Low dissipation factor, Very low partial discharge, Coated and uncoated devices available Used for various AC and DC high voltage circuit applications.
High voltage AC uses live line ceramic capacitor, the main applications include live line indicators, AC dividers, grading systems for power distribution network, protection for HV switches and power circuit breakers.Coupling, by-passing high frequency circuits also use HV ceramic disc capacitors.
High Voltage AC Live Line Ceramic Capacitor from AnXon are 100% tested of the below parameters
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.
Cixi AnXon Electronic Co., Ltd is a proven and reliable capacitor manufacturer and supplier in China with brand of AnXon & AXC, with years rapidly growing, AnXon now become a leader in the R&D, production and sales of high quality Capacitors.
In the year 2010, AnXon acquired Max Capacitor which have 20 years manufacturing experience of high voltage ceramic capacitors, RF power ceramic capacitors, the products are convinced as good cross of the brand AVX, TDK, VISHAY, MURATA by customers in USA, Spain, UK, Switzerland, Germany, Korea, India and etc...
Through 10 years efforts, , AnXon now is the top ten largest subcontractors of film capacitor, aluminum electrolytic capacitor, mica capacitor, tantalum capacitor, super capacitor, vacuum capacitor, high voltage capacitor, high temperature capacitor, high frequency capacitor, DC Link capacitor, filter capacitor, snubber capacitor as well as High Voltage Diodes, RF power tubes and other components. Our powerful R & D make us able to provide high performance Custom Capacitors, we are always ready to help to make your project goes smoothly and your products most competitive. You buy from AnXon not only a component but also a completely solution of your applications.
