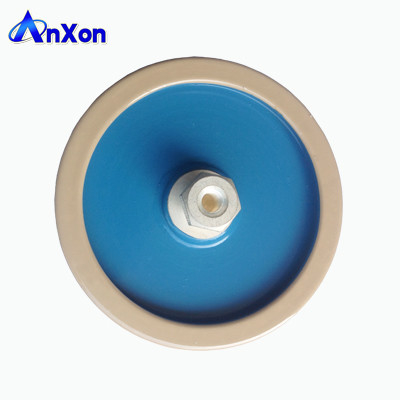

Large Image :  Ceramic disc Condensador 12KV 1000PF 90KVA RF plasma generators capacitor

Product Details:

Place of Origin: China
Brand Name: China
Certification: ROHS
Model Number: CCG81

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: PE Foam and Carton for high frequency RF Power plate capacitor
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Product Name: RF Power Plate Capacitor Application: RF / Microwave
Capacitance: 1000PF Rated Voltage: 12kV
Dielectric: R85, N750 Operating Temp: Erature: -30°C ~ 85°C
Dissipation Factor: Max. 0.08% (1kHz 1V) Temperature Characteristics: -750PPM/°C

Product Description



Ceramic disc Condensador 12KV 1000PF 90KVA RF plasma generators capacitor



Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. AnXon specializes in the development and production of dielectric and ferroelectric materials and components. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.



Ceramic disc Condensador 12KV 1000PF 90KVA RF plasma generators capacitor



P/N Rated Spec Max Current Size(mm)
(A) D H d
CCG81-4 / DT110 12KV 1000PF 90KVA 30 110



45







M8



CCG81-5 / DT120 12KV 1500PF 90KVA 40 120
CCG81-6 / DT140 12KV 2000PF 125KVA



60



140
CCG81-7 / DT150 12KV 2500PF 125KVA 152
CCG81-6 / DT140 12KV 3000PF 125KVA 145 44
PE140 12KV 3000PF 90KVA 45 140 40 M8
CCG81-9 / PE200 12KV 6000PF 150KVA 60 205 45 M10
PE220 12KV 6000PF 150KVA 60 220 45 M10
PD70 / DT70 13KV 400PF 20KVA 16 70 35 M6
PD70 / DT70 13KV 500PF 20KVA 16 70 35 M6
PD80 13KV 500PF 75KVA 30 80 40 M6



Related Products

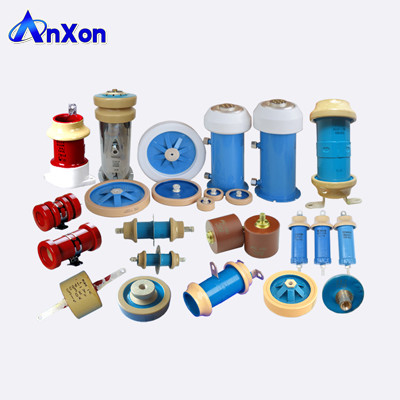

High frequency high power RF ceramic capacitors one stop solutions by AnXon



These capacitors are used in oscillators, coupling circuits or bypass capacitors in industrial or medical high frequency equipment. They are suitable to use as coupling capacitors for transmission line and carrier frequency equipment. X-ray equipment, broadcast equipment, induction heating power supplies (tube and solid state), cable fault finders, plasma generators, RF power supplies, dielectric heating, lasers and more.



Ceramic disc Condensador 12KV 1000PF 90KVA RF plasma generators capacitor



Product Type

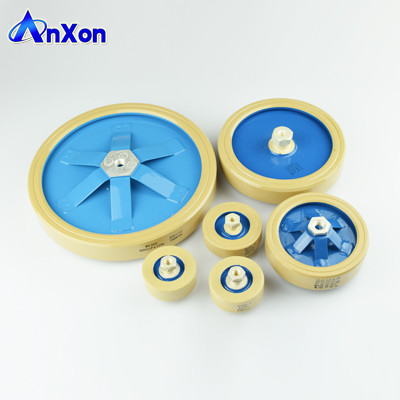

AnXon High frequency high power RF plate ceramic capacitors Features



Low loss Class 1 ceramic dielectric materials
Noble metal electrodes with low self heating
Very low capacitance-temperature characteristics available
Correspondingly low tuned frequency drift.
Low Inductance construction, higher frequency use
High voltage, High Reactive Power Ratings
Low magnetic susceptibility



Ceramic disc Condensador 12KV 1000PF 90KVA RF plasma generators capacitor
Product Application

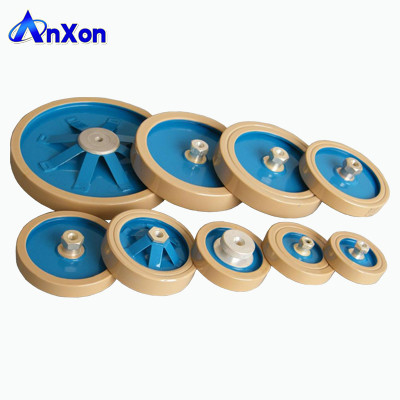

AnXon High frequency high power RF plate ceramic capacitors Applications



Radio broadcast transmitters
HF filter, By-Pass & Coupling Circuits
High power matching tuned circuits, Antenna circuits
High power matching networks, Plasma Generators
High quality medical imaging systems (MRI)
Induction and Dielectric Heating Equipment
Industrial Applications



Ceramic disc Condensador 12KV 1000PF 90KVA RF plasma generators capacitor



Quality Control



AnXon High frequency high power RF plate ceramic capacitors are 100% tested of the below parameters



• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.



Ceramic disc Condensador 12KV 1000PF 90KVA RF plasma generators capacitor



Certifications



Ceramic disc Condensador 12KV 1000PF 90KVA RF plasma generators capacitor



Our Company



Cixi AnXon Electronic Co., Ltd, A China based manufacturing company, specialized manufacturer and supplier of high voltage ceramic capacitors, doorknob capacitors, pulse power capacitors, RF power capacitors, AC live line capacitors, high Q capacitors, high temperature capacitors.


Main Products:
1). High Voltage Disc Ceramic Capacitors

HV ceramic disc capacitors, ultra hv screw doorknob capacitors, AC live line capacitors, Voltage Multiplier Assembly, Ceramic capacitor stacks, Pulse power capacitors, high voltage AC ceramic capacitors
2). RF power ceramic capacitors,
Disk / plate capacitors, Water cooled power capacitors, Feedthrough RF capacitors, Tubular ceramic capacitors
3). High Q power ceramic capacitors
High Q multilayer capacitors, RF / Microwave Multilayer Capacitors, High Q MLCC
4). High Voltage Chip SMD Ceramic Capacitors, High Voltage MLCC
250V, 500V, 1000V 1KV, 1500V, 2000V 2KV, 2500V, 3000V 3KV, 4000V 4KV, 5000V 5KV, 6000V, 6KV, 7000V, 7KV, 8000V, 8KV, 9000V, 9KV 10KV HV MLCC
5). High temperature Chip SMD ceramic capacitors, High temperature MLCC
125°C, 150°C, 175°C, 200°C, 250°C, 300°C Radial Leaded High Voltage Ceramic Capacitors, HV MLCC
125C, 150C, 175C, 200C, 250C, 300C High Voltage Multilayer Chip SMD Uncoated Ceramic Capacitors MLCC with lead
