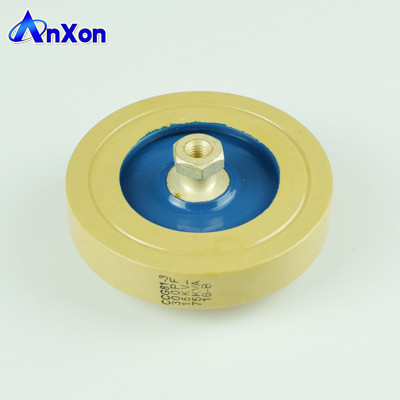

AnXon CCG81-3 15KV 300PF 75KVA High voltage RF disc ceramic capacitor

I'm Online Chat Now

AnXon CCG81-3 15KV 300PF 75KVA High voltage RF disc ceramic capacitor

China AnXon CCG81-3 15KV 300PF 75KVA  High voltage RF disc ceramic capacitor supplier
AnXon CCG81-3 15KV 300PF 75KVA  High voltage RF disc ceramic capacitor supplier AnXon CCG81-3 15KV 300PF 75KVA  High voltage RF disc ceramic capacitor supplier AnXon CCG81-3 15KV 300PF 75KVA  High voltage RF disc ceramic capacitor supplier AnXon CCG81-3 15KV 300PF 75KVA  High voltage RF disc ceramic capacitor supplier AnXon CCG81-3 15KV 300PF 75KVA  High voltage RF disc ceramic capacitor supplier

Large Image :  AnXon CCG81-3 15KV 300PF 75KVA High voltage RF disc ceramic capacitor

Product Details:

Place of Origin: China
Brand Name: AnXon
Certification: ROHS
Model Number: CCG81

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: PE Foam and Carton for high frequency RF Power plate capacitor
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Product Name: RF Power Plate Capacitor Application: RF / Microwave
Capacitance: 300PF Rated Voltage: 15kV
Dielectric: R85, N750 Operating Temp: Erature: -30°C ~ 85°C
Dissipation Factor: Max. 0.08% (1kHz 1V) Temperature Characteristics: -750PPM/°C

Product Description



AnXon CCG81-3 15KV 300PF 75KVA High voltage RF disc ceramic capacitor



Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. AnXon specializes in the development and production of dielectric and ferroelectric materials and components. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.



AnXon CCG81-3 15KV 300PF 75KVA  High voltage RF disc ceramic capacitor



P/N Rated Spec Max Current Size(mm)
(A) D H d





CCG81-1

15KV 100PF 60KVA 20 58 37 M6
15KV 150PF 60KVA 60 37
15KV 200PF 60KVA 36
15KV 250PF 60KVA 35
15KV 300PF 60KVA 65 35
CCG81-3 15KV 300PF 75KVA 30 78 37 M6
CCG81-3 / DT80 15KV 350PF 75KVA 80 37
PD80 15KV 500PF 75KVA 82 36
CCG81-4 / DT110 15KV 500PF 90KVA 30 110 47 M8



Related Products



High frequency high power RF ceramic capacitors one stop solutions by AnXon



These capacitors are used in oscillators, coupling circuits or bypass capacitors in industrial or medical high frequency equipment. They are suitable to use as coupling capacitors for transmission line and carrier frequency equipment. X-ray equipment, broadcast equipment, induction heating power supplies (tube and solid state), cable fault finders, plasma generators, RF power supplies, dielectric heating, lasers and more.



AnXon CCG81-3 15KV 300PF 75KVA  High voltage RF disc ceramic capacitor



Product Type



AnXon High frequency high power RF plate ceramic capacitors Features



Low loss Class 1 ceramic dielectric materials
Noble metal electrodes with low self heating
Very low capacitance-temperature characteristics available
Correspondingly low tuned frequency drift.
Low Inductance construction, higher frequency use
High voltage, High Reactive Power Ratings
Low magnetic susceptibility



AnXon CCG81-3 15KV 300PF 75KVA  High voltage RF disc ceramic capacitor
Product Application



AnXon High frequency high power RF plate ceramic capacitors Applications



Radio broadcast transmitters
HF filter, By-Pass & Coupling Circuits
High power matching tuned circuits, Antenna circuits
High power matching networks, Plasma Generators
High quality medical imaging systems (MRI)
Induction and Dielectric Heating Equipment
Industrial Applications



AnXon CCG81-3 15KV 300PF 75KVA  High voltage RF disc ceramic capacitor



Quality Control



AnXon High frequency high power RF plate ceramic capacitors are 100% tested of the below parameters



• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.



AnXon CCG81-3 15KV 300PF 75KVA  High voltage RF disc ceramic capacitor



Certifications



AnXon CCG81-3 15KV 300PF 75KVA  High voltage RF disc ceramic capacitor



Our Company



Cixi AnXon Electronic Co., Ltd, A China based manufacturing company, specialized manufacturer and supplier of high voltage ceramic capacitors, doorknob capacitors, pulse power capacitors, RF power capacitors, AC live line capacitors, high Q capacitors, high temperature capacitors.


Main Products:
1). High Voltage Disc Ceramic Capacitors

HV ceramic disc capacitors, ultra hv screw doorknob capacitors, AC live line capacitors, Voltage Multiplier Assembly, Ceramic capacitor stacks, Pulse power capacitors, high voltage AC ceramic capacitors
2). RF power ceramic capacitors,
Disk / plate capacitors, Water cooled power capacitors, Feedthrough RF capacitors, Tubular ceramic capacitors
3). High Q power ceramic capacitors
High Q multilayer capacitors, RF / Microwave Multilayer Capacitors, High Q MLCC
4). High Voltage Chip SMD Ceramic Capacitors, High Voltage MLCC
250V, 500V, 1000V 1KV, 1500V, 2000V 2KV, 2500V, 3000V 3KV, 4000V 4KV, 5000V 5KV, 6000V, 6KV, 7000V, 7KV, 8000V, 8KV, 9000V, 9KV 10KV HV MLCC
5). High temperature Chip SMD ceramic capacitors, High temperature MLCC
125°C, 150°C, 175°C, 200°C, 250°C, 300°C Radial Leaded High Voltage Ceramic Capacitors, HV MLCC
125C, 150C, 175C, 200C, 250C, 300C High Voltage Multilayer Chip SMD Uncoated Ceramic Capacitors MLCC with lead
