Name: Doorknob Ceramic Capacitor Voltage: 3.6~150kV
Capacitance: 10pF~20000pF Dielectric: NPO, N4700, Y5T, Y5S, Y5R, Y5U
Color: Red Tolerance: ±10%

Product Description

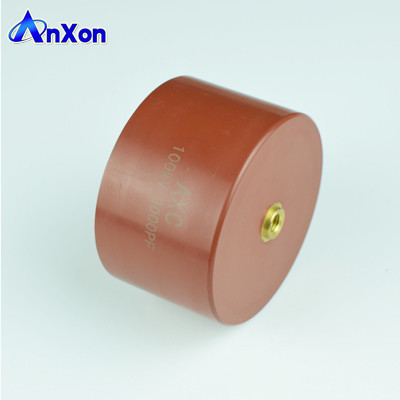

AnXon CT8G100KVD302M HV capacitor 100KV 3000PF ceramic capacitor for pulse generator



AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.



Rated Spec:
100KV 3000PF, 100KV 302
Tolerance:
K ±10%, J ±5% available on request
Type:
Molded / Doorknob / Screw Mounting
Ceramic Dielectric :
Y5T
Operating Temperature:
-35C ~ 85C
Size / Dimension(ΦD×T*F):
D:80mm, T:48mm, H:52mm, M8

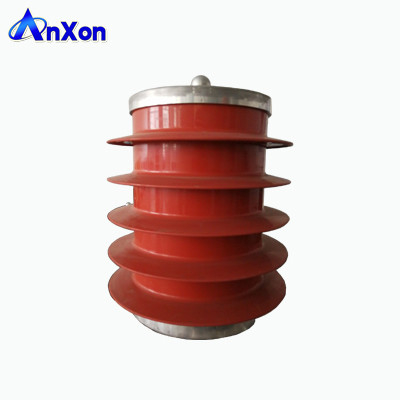

AnXon CT8G series Cylindrical ultra high voltage doorknob ceramic capacitor



The Cylindrical ultra high voltage ceramic capacitors of the AnXon CT8G series have been widely used in power transmission and distribution system power equipment and pulse energy processing equipment. AnXon high voltage ceramic capacitors have excellent charge and discharge performance, high withstand voltage, good frequency characteristics, can withstand high impulse voltage, ultra low partial discharge characteristics, and AC and DC applications for customers to choose.
Main voltage: 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV
• Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
• Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
• Impulse Voltage: 45KVdc-225KVdc
• Capacitance Range: 10pF - 100000pF
• Operating frequency: 20KHZ-1000KHZ
• Materials: K100, K150, K300, K650, K850, K1000, K1500, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V



AnXon CT8G100KVD302M HV capacitor 100KV 3000PF ceramic capacitor for pulse generator



Related Products



Part Number
Dielectric
Rated Spec
Remark
Dimensions(mm)
D
T
H
M
AXCT8GD102K100DB
Y5T
100KV 1000PF
DC 125KV BIL
55
54
58
5
AXCT8GD202K100DB
Y5T
100KV 2000PF
DC
70
52
56
5
AXCT8G100D302KDB
Y5T
100KV 3000PF
DC 125KV BIL
80
48
52
8
AXCT8GD332K100DB
Y5T
100KV 3300PF
DC 125KV BIL
80
48
52
8
AXCT8G100D402KDC
Y5T
100KV 4000PF
DC
80
52
56
5
AXCT8G150D203KDC

 Y5T

150KV 20000PF
DC
280
360
400
--



High voltage ceramic capacitors



High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage.Common types of class 1 ceramic materials are: NPO, C0G, UJ, SL, N4700, etc. The common types of class 2 ceramic materials are: Y5R, Y5P, Y5T, Y5S, Y5U, Y5V, etc.



AnXon CT8G100KVD302M HV capacitor 100KV 3000PF ceramic capacitor for pulse generator



Product Type

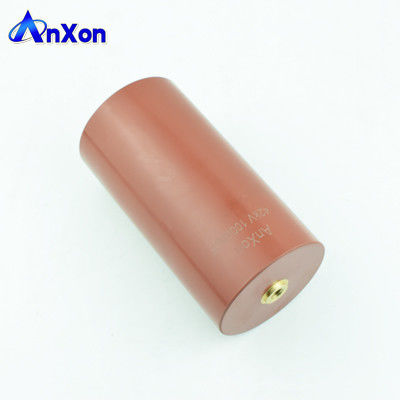

AnXon offers a variety of conventional ultra high voltage ceramic capacitors, but also can customize a variety of special-shaped capacitors according to customer requirements



AnXon CT8G100KVD302M HV capacitor 100KV 3000PF ceramic capacitor for pulse generator



Product Applications



High voltage doorknob ceramic capacitor main applications



• High voltage supply for gas laser
• High-voltage dividers
• Marx generators, Power generators
• High voltage columns for collider of HV accelerator
• High-voltage coupling devices
• Power line coupling system for Internet & Telecom
• Lightning arresters, voltage distribution systems
• HV Power Supply for X-ray, excimer lasers



AnXon CT8G100KVD302M HV capacitor 100KV 3000PF ceramic capacitor for pulse generator



Quality Control



High voltage doorknob ceramic capacitor from AnXon are 100% tested of the below parameters



• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
• Partial discharge: as requested
• impulse voltage: sampling



AnXon CT8G100KVD302M HV capacitor 100KV 3000PF ceramic capacitor for pulse generator



Certifications



AnXon CT8G100KVD302M HV capacitor 100KV 3000PF ceramic capacitor for pulse generator



Our Company



Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia. In particular, high voltage screw terminal ceramic capacitors, high voltage lead type disc ceramic capacitors, high voltage MLCC, high frequency high power ceramic capacitors, high voltage ceramic capacitors stacks and multiplier assembly, high temperature ceramic capacitors are greatly trusted by the majority of domestic and foreign customers. AnXon Electronics looking forward to cooperate with you in the near future.
