AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply

China AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply supplier
AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply supplier AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply supplier AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply supplier AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply supplier AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply supplier AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply supplier

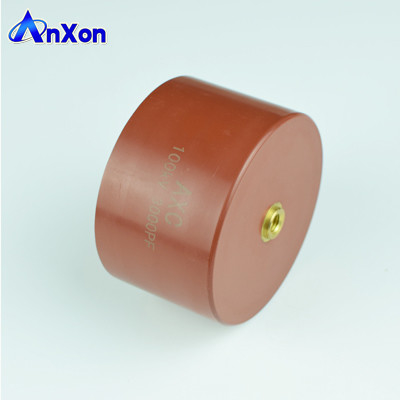

Large Image :  AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply

Product Details:

Place of Origin: China
Brand Name: AnXon
Certification: ISO, RoHs
Model Number: CT8G

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Foam + Carton
Delivery Time: 25-28 days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 10000/Month
Contact Now
Detailed Product Description
Name: Doorknob Ceramic Capacitor Voltage: 3.6~150kV
Capacitance: 10pF~20000pF Dielectric: NPO, N4700, Y5T, Y5S, Y5R, Y5U
Color: Red Tolerance: ±10%

Product Description



AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply



AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.



Rated Spec:
40KV 2000PF, 40KV 202
Tolerance:
K ±10%, J ±5% available on request
Type:
Molded / Doorknob / Screw Mounting
Ceramic Dielectric :
N4700
Operating Temperature:
-35C ~ 85C
Size / Dimension(ΦD×T*F):
D:60mm, T:28mm, H:32mm, M5



AnXon CT8G series Cylindrical ultra high voltage doorknob ceramic capacitor



The Cylindrical ultra high voltage ceramic capacitors of the AnXon CT8G series have been widely used in power transmission and distribution system power equipment and pulse energy processing equipment. AnXon high voltage ceramic capacitors have excellent charge and discharge performance, high withstand voltage, good frequency characteristics, can withstand high impulse voltage, ultra low partial discharge characteristics, and AC and DC applications for customers to choose.
Main voltage: 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV
• Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
• Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
• Impulse Voltage: 45KVdc-225KVdc
• Capacitance Range: 10pF - 100000pF
• Operating frequency: 20KHZ-1000KHZ
• Materials: K100, K150, K300, K650, K850, K1000, K1500, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V



AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply



Related Products



Part Number
Dielectric
Rated Spec
Remark
Dimensions(mm)
D
T
H
M
AXCT8G40D172KAB
Y5T
40KV 1700PF
AC 125KV BIL
60
51
55
8
AXCT8GD202K40DB
Y5T
40KV 2000PF
DC
60
32
36
5
AXCT8GD202K40DS
Y5T
40KV 2000PF
DC
60
28
32
5
AXCT8G40D202KDB
Y5T
40KV 2000PF
DC
60
28
32
5
AXCT8G40DL202KDB
N4700
40KV 2000PF
DC
60
28
32
5
AXCT8GS202K40DB
Y5S
40KV 2000PF
DC
52
30
34
4



High voltage ceramic capacitors



High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage.Common types of class 1 ceramic materials are: NPO, C0G, UJ, SL, N4700, etc. The common types of class 2 ceramic materials are: Y5R, Y5P, Y5T, Y5S, Y5U, Y5V, etc.



AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply

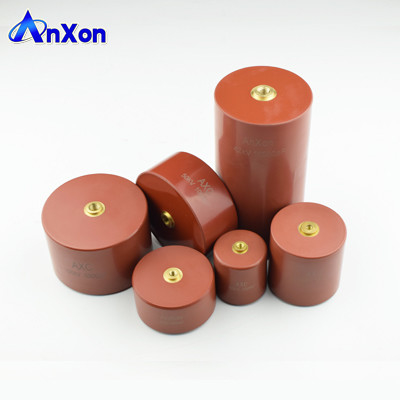

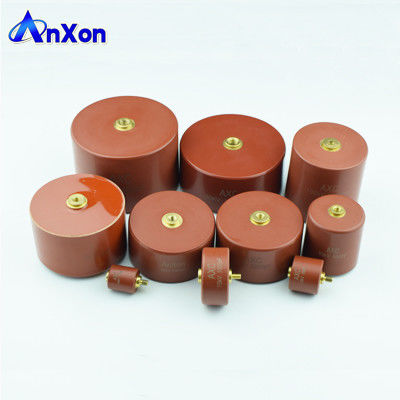

Product Type

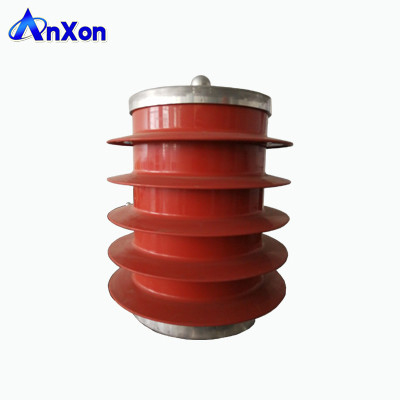

AnXon offers a variety of conventional ultra high voltage ceramic capacitors, but also can customize a variety of special-shaped capacitors according to customer requirements



AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply



Product Applications



High voltage doorknob ceramic capacitor main applications



• High voltage supply for gas laser
• High-voltage dividers
• Marx generators, Power generators
• High voltage columns for collider of HV accelerator
• High-voltage coupling devices
• Power line coupling system for Internet & Telecom
• Lightning arresters, voltage distribution systems
• HV Power Supply for X-ray, excimer lasers



AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply



Quality Control



High voltage doorknob ceramic capacitor from AnXon are 100% tested of the below parameters



• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
• Partial discharge: as requested
• impulse voltage: sampling



AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply



Certifications



AnXon 40KV 3000PF capacitor for high voltage bank of laser power supply



Our Company



Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia. In particular, high voltage screw terminal ceramic capacitors, high voltage lead type disc ceramic capacitors, high voltage MLCC, high frequency high power ceramic capacitors, high voltage ceramic capacitors stacks and multiplier assembly, high temperature ceramic capacitors are greatly trusted by the majority of domestic and foreign customers. AnXon Electronics looking forward to cooperate with you in the near future.
