Home ProductsRF Water Cooled Ceramic Capacitor

14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor

I'm Online Chat Now

14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor

China 14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor supplier
14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor supplier 14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor supplier 14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor supplier 14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor supplier 14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor supplier 14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor supplier

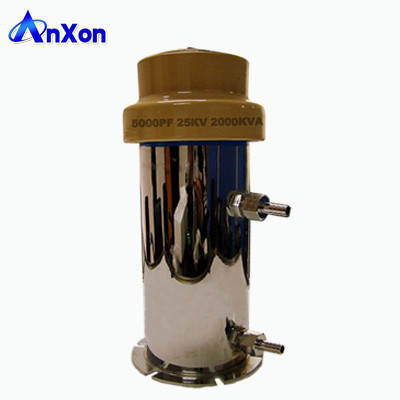

Large Image :  14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor

Product Details:

Place of Origin: China
Brand Name: AnXon watercooled capacitor
Certification: ISO, ROHS
Model Number: CCGS, CCGSF, TWXF, CCW

Payment & Shipping Terms:

Minimum Order Quantity: 1
Payment Terms: T/T, Western Union, PayPal
Contact Now
Detailed Product Description
Name: Watercooled Capacitor Dielectric: R85, N750
Voltage: 12kV~30kV Capacitance: 1500pF~10000pF



Product Description



14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor



Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. AnXon specializes in the development and production of dielectric and ferroelectric materials and components. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.



14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor



P/N
Rated Spec
Max
Current

Size(mm)
Cross VISHAY
P/N

(A)
D
H
h1
h2
d







CCGSF-0
14KV 1500PF 1000KVA
150





095
162

18
55


7-M5


TWXF095162
14KV 2000PF 1500KVA
14KV 2200PF 1500KVA
14KV 2500PF 1500KVA
12KV 5000PF 1275KVA
220
110
TWXF095220
14KV 4000PF 2000KVA
250
115

TWXF110250
14KV 5000PF 2000KVA
14KV 4700PF 2000KVA
14KV 7600PF 2500KVA
250
125
300
30
180
TWXF125300
14KV 10000PF 2800KVA
250
125
405
30
280
TWXF125405





CCGSF-2
20KV 2000PF 2000KVA
250
135
242





22
108

TWXF135242
25KV 2500PF 2500KVA
20KV 3000PF 2000KVA
16KV 4000PF 2500KVA
218
TWXF135218
16KV 5000PF 2830KVA
250
128
TWXF135250
20KV 5000PF 3000KVA
285
134
TWXF135285
16KV 6000PF 2830KVA
272
134
TWXF135272
20KV 6000PF 3000KVA
320
170
TWXF135320

CCGSF-3
24KV 4000PF 3000KVA
250
142
285
25
134
TWXF142285
24KV 5000PF 3000KVA
314
TWXF142314
25KV 5000PF 3000KVA
TWXF142314
CCGSF-4
30KV 5000PF 3500KVA
250
158
340
30
170




Related Products



High frequency high power RF ceramic capacitors one stop solutions by AnXon



These capacitors are used in oscillators, coupling circuits or bypass capacitors in industrial or medical high frequency equipment. They are suitable to use as coupling capacitors for transmission line and carrier frequency equipment. X-ray equipment, broadcast equipment, induction heating power supplies (tube and solid state), cable fault finders, plasma generators, RF power supplies, dielectric heating, lasers and more.



14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor



Product Type



AnXon High frequency high power RF Watercooled ceramic capacitors Features



Low loss Class 1 ceramic dielectric materials
Noble metal electrodes with low self heating
Very low capacitance-temperature characteristics available
Correspondingly low tuned frequency drift.
Low Inductance construction, higher frequency use
High voltage, High Reactive Power Ratings
Low magnetic susceptibility



14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor



Product Application



AnXon High frequency high power RF watercooled ceramic capacitors Applications



Radio broadcast transmitters
HF filter, By-Pass & Coupling Circuits
High power matching tuned circuits, Antenna circuits
High power matching networks, Plasma Generators
High quality medical imaging systems (MRI)
Induction and Dielectric Heating Equipment
Industrial Applications



14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor



Quality Control



AnXon High frequency high power RF plate ceramic capacitors are 100% tested of the below parameters



• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.



14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor



Certifications



14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor



Our Company



Cixi AnXon Electronic Co., Ltd, A China based manufacturing company, specialized manufacturer and supplier of high voltage ceramic capacitors, doorknob capacitors, pulse power capacitors, RF power capacitors, AC live line capacitors, high Q capacitors, high temperature capacitors.


Main Products:
1). High Voltage Disc Ceramic Capacitors
HV ceramic disc capacitors, ultra hv screw doorknob capacitors, AC live line capacitors, Voltage Multiplier Assembly, Ceramic capacitor stacks, Pulse power capacitors, high voltage AC ceramic capacitors
2). RF power ceramic capacitors,
Disk / plate capacitors, Water cooled power capacitors, Feedthrough RF capacitors, Tubular ceramic capacitors
3). High Q power ceramic capacitors
High Q multilayer capacitors, RF / Microwave Multilayer Capacitors, High Q MLCC
4). High Voltage Chip SMD Ceramic Capacitors, High Voltage MLCC
250V, 500V, 1000V 1KV, 1500V, 2000V 2KV, 2500V, 3000V 3KV, 4000V 4KV, 5000V 5KV, 6000V, 6KV, 7000V, 7KV, 8000V, 8KV, 9000V, 9KV 10KV HV MLCC
5). High temperature Chip SMD ceramic capacitors, High temperature MLCC
125°C, 150°C, 175°C, 200°C, 250°C, 300°C Radial Leaded High Voltage Ceramic Capacitors, HV MLCC
125C, 150C, 175C, 200C, 250C, 300C High Voltage Multilayer Chip SMD Uncoated Ceramic Capacitors MLCC with lead



14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor
14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor
14KV 5000PF 2000KVA Induction and Dielectric Heating water cooled capacitor
