CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor

I'm Online Chat Now

CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor

China CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor supplier
CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor supplier CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor supplier CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor supplier CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor supplier CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor supplier CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor supplier

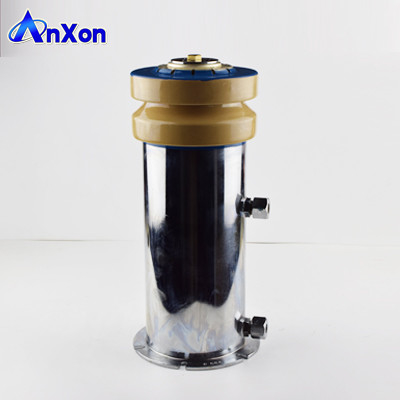

Large Image :  CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor

Product Details:

Place of Origin: China
Brand Name: AnXon watercooled capacitor
Certification: ISO, ROHS
Model Number: CCGS, CCGSF, TWXF, CCW

Payment & Shipping Terms:

Minimum Order Quantity: 1
Payment Terms: T/T, Western Union, PayPal
Contact Now
Detailed Product Description
Name: Watercooled Capacitor Dielectric: R85, N750
Voltage: 12kV~30kV Capacitance: 1500pF~10000pF



Product Description



CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor



Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. AnXon specializes in the development and production of dielectric and ferroelectric materials and components. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.



CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor



P/N Rated Spec

Max

Current

Size(mm)
(A) D H h1 h2 d
CCGS-0 14KV 2000PF 1500KVA 150 095 162 18 55 M8
14KV 2500PF 1500KVA
12KV 5000PF 1275KVA 220 20 110
CCGS-1 20KV 2000PF 2000KVA 200 110 225 20 105
20KV 3000PF 2000KVA
CCGS-2 20KV 2000PF 2000KVA 250 135 242 22 108
25KV 2500PF 2500KVA
20KV 3000PF 2000KVA
16KV 4000PF 2500KVA 218
16KV 5000PF 2830KVA 250 128
20KV 5000PF 3000KVA 285 134
16KV 6000PF 2830KVA 272 134
20KV 6000PF 3000KVA 320 170
CCGS-3 24KV 4000PF 3000KVA 250 142 285 25 134
24KV 5000PF 3000KVA 314
25KV 5000PF 3000KVA 320
CCGS-4 30KV 5000PF 3500KVA 300 158 340 30 170 M10



Related Products



High frequency high power RF ceramic capacitors one stop solutions by AnXon



These capacitors are used in oscillators, coupling circuits or bypass capacitors in industrial or medical high frequency equipment. They are suitable to use as coupling capacitors for transmission line and carrier frequency equipment. X-ray equipment, broadcast equipment, induction heating power supplies (tube and solid state), cable fault finders, plasma generators, RF power supplies, dielectric heating, lasers and more.



CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor



Product Type



AnXon High frequency high power RF Watercooled ceramic capacitors Features



Low loss Class 1 ceramic dielectric materials
Noble metal electrodes with low self heating
Very low capacitance-temperature characteristics available
Correspondingly low tuned frequency drift.
Low Inductance construction, higher frequency use
High voltage, High Reactive Power Ratings
Low magnetic susceptibility



CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor



Product Application



AnXon High frequency high power RF watercooled ceramic capacitors Applications



Radio broadcast transmitters
HF filter, By-Pass & Coupling Circuits
High power matching tuned circuits, Antenna circuits
High power matching networks, Plasma Generators
High quality medical imaging systems (MRI)
Induction and Dielectric Heating Equipment
Industrial Applications



CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor



Quality Control



AnXon High frequency high power RF plate ceramic capacitors are 100% tested of the below parameters



• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.



CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor



Certifications



CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor



Our Company



Cixi AnXon Electronic Co., Ltd, A China based manufacturing company, specialized manufacturer and supplier of high voltage ceramic capacitors, doorknob capacitors, pulse power capacitors, RF power capacitors, AC live line capacitors, high Q capacitors, high temperature capacitors.


Main Products:
1). High Voltage Disc Ceramic Capacitors
HV ceramic disc capacitors, ultra hv screw doorknob capacitors, AC live line capacitors, Voltage Multiplier Assembly, Ceramic capacitor stacks, Pulse power capacitors, high voltage AC ceramic capacitors
2). RF power ceramic capacitors,
Disk / plate capacitors, Water cooled power capacitors, Feedthrough RF capacitors, Tubular ceramic capacitors
3). High Q power ceramic capacitors
High Q multilayer capacitors, RF / Microwave Multilayer Capacitors, High Q MLCC
4). High Voltage Chip SMD Ceramic Capacitors, High Voltage MLCC
250V, 500V, 1000V 1KV, 1500V, 2000V 2KV, 2500V, 3000V 3KV, 4000V 4KV, 5000V 5KV, 6000V, 6KV, 7000V, 7KV, 8000V, 8KV, 9000V, 9KV 10KV HV MLCC
5). High temperature Chip SMD ceramic capacitors, High temperature MLCC
125°C, 150°C, 175°C, 200°C, 250°C, 300°C Radial Leaded High Voltage Ceramic Capacitors, HV MLCC
125C, 150C, 175C, 200C, 250C, 300C High Voltage Multilayer Chip SMD Uncoated Ceramic Capacitors MLCC with lead



CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor
CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor
CCGS-2 16KV 6000PF 2830KVA Alternative for Vishay Draloric External Cooling Watercooled Capacitor
