AnXon CKTB Variable vacuum capacitor for plasma generators

I'm Online Chat Now

AnXon CKTB Variable vacuum capacitor for plasma generators

China AnXon CKTB Variable vacuum capacitor for plasma generators supplier
AnXon CKTB Variable vacuum capacitor for plasma generators supplier AnXon CKTB Variable vacuum capacitor for plasma generators supplier AnXon CKTB Variable vacuum capacitor for plasma generators supplier AnXon CKTB Variable vacuum capacitor for plasma generators supplier

Large Image :  AnXon CKTB Variable vacuum capacitor for plasma generators

Product Details:

Place of Origin: China
Brand Name: AnXon
Certification: ISO, ROHS
Model Number: CKT

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: PE Foam and Carton for Vacuum capacitor
Payment Terms: T/T, Western Union, PayPal
Contact Now
Detailed Product Description
Product Name:: Fixed Vacuum Capacitor Rated Voltage:: 3.5kV~90kV
Capacitance:: 1pF~8000pF Operating Temp: -30°C ~125°C
Test Voltage:: 5kV~128kV Max RF Current:: 8A~2000A
Application:: RF / Microwave Operating Freq: Up To 200Mhz



Product Description

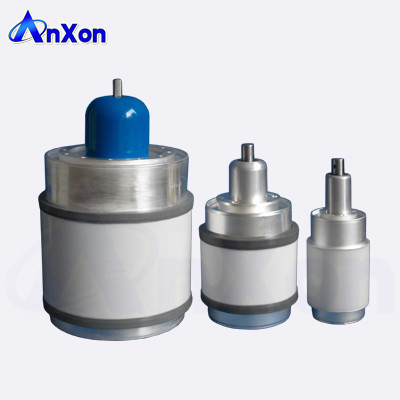

AnXon CKTB Variable vacuum capacitor for plasma generators



Cixi AnXon Electronic Co., Ltd develops and manufactures high quality vacuum capacitors. These specialized products are used for precise control of plasma processes like thin-film deposition and etching for semiconductors, flat panel displays, solar panels and industrial coatings. With years of experience in designing vacuum capacitors, AnXon combines expertise and technology to meet your demand for high performance vacuum capacitors.




AnXon CKTB Variable vacuum capacitor for plasma generators



Model Capacitance Range Peak TEST
Voltage
HF Peak
Working
Voltage

Max. RF
Current

(13.56MHz)

Max.
Tuner
Torque
Tuner
Turns
Max. Weight Replacement
(pF) (kV) (kV) (A) (N.m) (Circle) (Kg)
AXCTB500/3/49 5-500 5 3 49 0.2 19 0.3
AXCTB1000/2/49 8-1000 2.8 2 49 0.25 19 0.45



Products Dimensions



AnXon CKTB Variable vacuum capacitor for plasma generators



Related Product



Original High Performance Vacuum Capacitors by AnXon



AnXon's capacitor product line offers the broadest selection of capacitance, power, voltage and drive systems in the market. They are produced with the best materials, fabrication processes and quality standards.

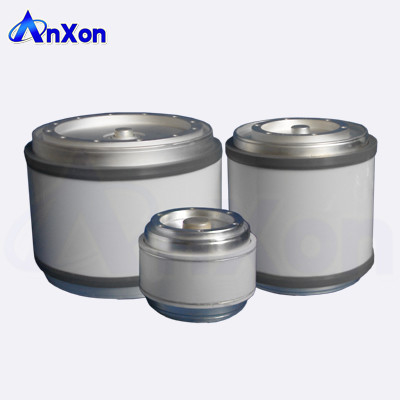

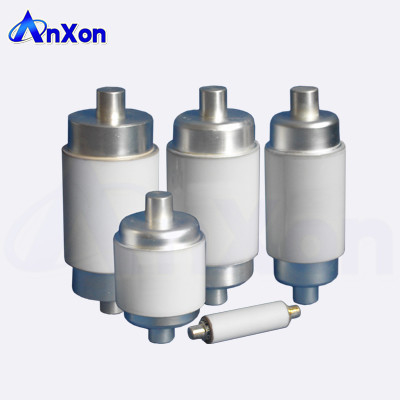

Fixed Capacitors
Fixed capacitors have a single, fixed capacitance value, which cannot be adjusted. They are designed for a wide variety of applications like broadcast and communication transmitters, antenna network systems, output filters, coupling capacitors, industrial RF generators and nuclear research.

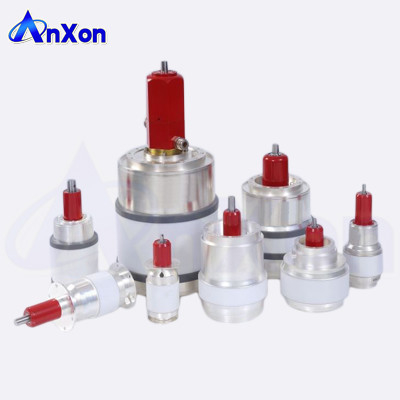

Variable Capacitors
Variable Capacitors are just that: capacitors that can be intentionally and repeatedly changed, both mechanically and electronically.



AnXon CKTB Variable vacuum capacitor for plasma generators



Product Application



AnXon High Performance Vacuum Capacitors Applications



AnXon offers you the benefit of more than 50 years of expertise in vacuum technology, producing the world’s finest non-thermionic vacuum components for high voltage and high frequency applications, including:
• Broadcast Radio Transmitters
• Semiconductor Manufacturing Equipment
• Plasma Generating Equipment
• Industrial Dielectric Heating Equipment
• Power Switching and Interrupting
• Avionic and Mobile Radio Systems
• Radar Antenna Switching
• MRI and NMR
• High Voltage Capacitor Banks



AnXon CKTB Variable vacuum capacitor for plasma generators



Certifications



AnXon CKTB Variable vacuum capacitor for plasma generators



Our Company



Cixi AnXon Electronic Co., Ltd, A China based manufacturing company, specialized manufacturer and supplier of High Performance Vacuum Capacitors, products have convinced as good replacements of Jennings vacuum capacitors & Comet vacuum capacitors



AnXon CKTB Variable vacuum capacitor for plasma generators
AnXon CKTB Variable vacuum capacitor for plasma generators
