Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Voltage Diode | Repetitive Peak Reverse Voltage: | 3-80KV |
|---|---|---|---|
| Average Forward Current: | 5-1000mA | Reverse Recovery Time: | 80-100nS |
| Maximum Surge Current: | 0.5-25A | Peak Forward Voltage: | 15-125V |
| Peak Reverse Current (Irrm1): | 2uA | Peak Reverse Current (Irrm2): | 20uA |
| Package: | Through Hole | Operation Temperature: | -40~+100℃ |

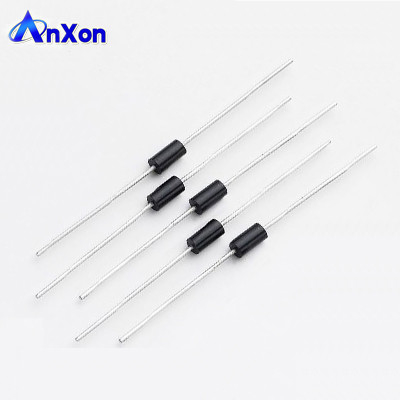

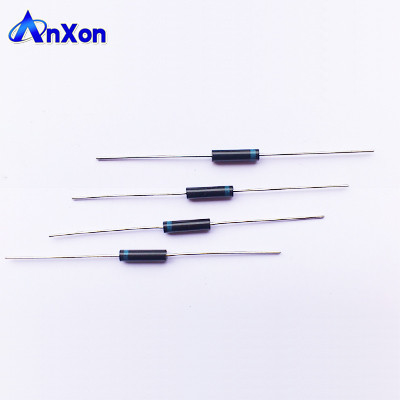

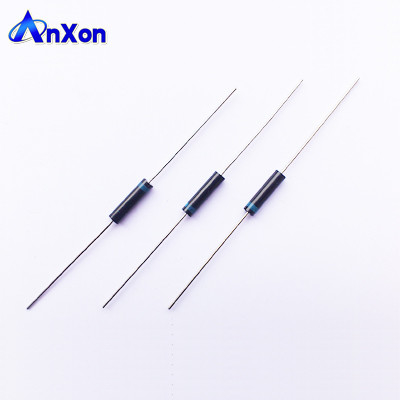

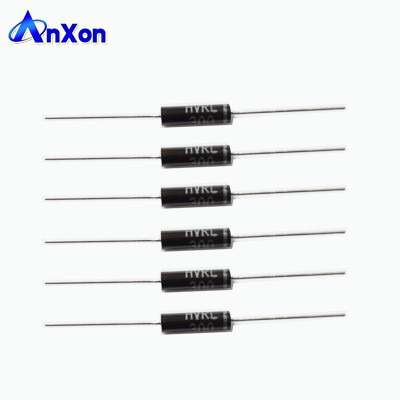

Product name: HVRT080 8KV 30mA 100nS High Electric Current Diode China supplier
|
Items
|
Symbols
|
Condition
|
HVRT080
|
Units
|
|
Repetitive Peak Reverse Voltage
|
VRRM
|
TA=25°C, IR=0.5μA
|
8 |
KV
|
|
Max Average Forward Current
|
IFAVM
|
50Hz at TA=55°C
|
30
|
mA
|
|
Max Reverse Recovery Time
|
Trr
|
TA=25°C
|
100
|
nS
|
|
Max Surge Current
|
IFSM
|
|
0.5
|
A
|
|
Max Forward Voltage Drop
|
VFM
|
TA=25°C
|
20
|
V
|
|
Max Reverse Current
|
IRRM1
|
TA=25°C & VRRM
|
2
|
μA
|
|
IRRM2
|
TA=100°C & VRRM
|
20
|
μA
|
|
|
Operating Temperature
|
Ta
|
|
-40~+100
|
°C
|
|
Storage Temperature
|
Tstg
|
|
-40~+120
|
°C
|
Features Applications
• High speed switching • High voltage, Medium Power
• High voltage power supply • High voltage generator
• High reliability design • Small package, Epoxy resin
• Voltage multiplier assembly • Microwave Power
