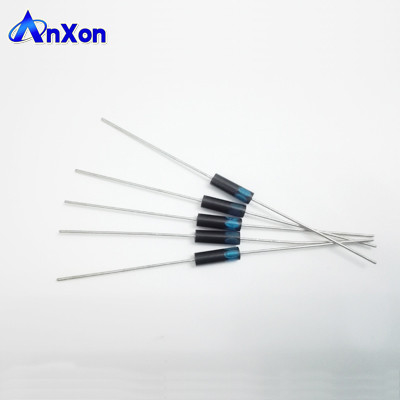

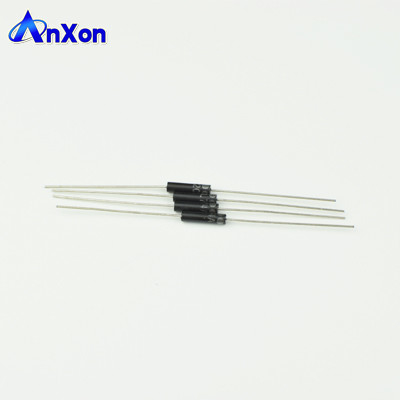

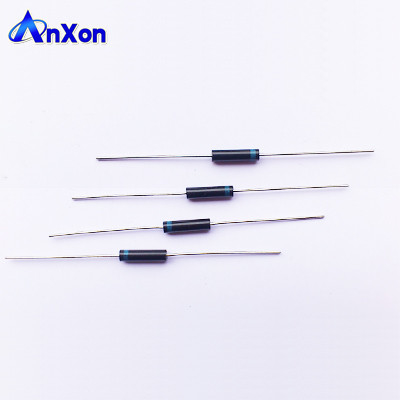

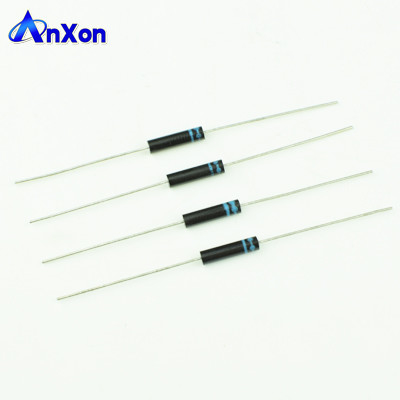

Large Image :  2CL2FJ 15KV 60mA 150nS Silicon High Electric Current Rectifier Diode

Product Details:

Place of Origin: China
Brand Name: China
Model Number: 2CL2FJ

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: USD 2-3 /piece
Packaging Details: Plastic bag + Box + Carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 100000 piece per week
Contact Now
Detailed Product Description
Product Name: High Voltage Diode Repetitive Peak Reverse Voltage: 3-80KV
Average Forward Current: 5-1000mA Reverse Recovery Time: 80-100nS
Maximum Surge Current: 0.5-25A Peak Forward Voltage: 15-125V
Peak Reverse Current (Irrm1): 2uA Peak Reverse Current (Irrm2): 15uA
Package: Through Hole Operation Temperature: -40~+100℃

Product Description



2CL2FJ 15KV 60mA 150nS Silicon High Electric Current Rectifier Diode



Product name: 2CL2FJ 15KV 60mA 150nS Silicon High Electric Current Rectifier Diode



Items
Symbols
Condition
2CL2FJ
Units
Repetitive Peak Reverse Voltage
VRRM
TA=25°C, IR=0.5μA
15
KV
Max Average Forward Current
IFAVM
50Hz at TA=55°C
60
mA
Max Reverse Recovery Time
Trr
TA=25°C
150
nS
Max Surge Current
IFSM

10
A
Max Forward Voltage Drop
VFM
TA=25°C
24
V
Max Reverse Current
IRRM1
TA=25°C & VRRM
2
μA
IRRM2
TA=100°C & VRRM
15
μA
Operating Temperature
Ta

-40~+100
°C
Storage Temperature
Tstg

-40~+120
°C



Out Drawing





2CL2FJ 15KV 60mA 150nS Silicon High Electric Current Rectifier Diode

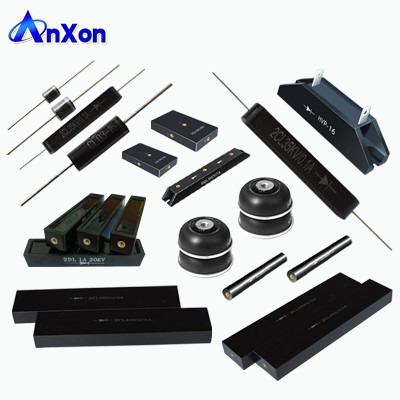

Related Products



2CL2FJ 15KV 60mA 150nS Silicon High Electric Current Rectifier Diode



2CL2FJ 15KV 60mA 150nS Silicon High Electric Current Rectifier Diode

Application



2CL2FJ 15KV 60mA 150nS Silicon High Electric Current Rectifier Diode



Features                                                         Applications
• High speed switching                                      • High voltage, Medium Power
• High voltage power supply                              • High voltage generator
• High reliability design                                      • Small package, Epoxy resin
• Voltage multiplier assembly                             • Microwave Power
