China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode

I'm Online Chat Now

China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode

China China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode supplier
China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode supplier China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode supplier China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode supplier China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode supplier China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode supplier

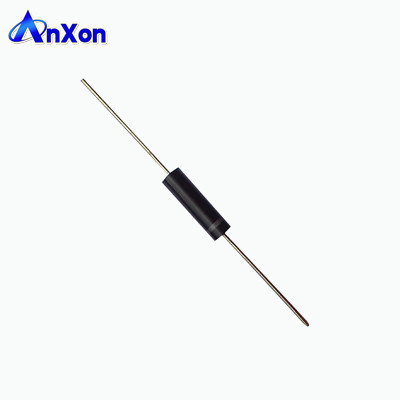

Large Image :  China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode

Product Details:

Place of Origin: CN
Brand Name: China
Model Number: 2CL2FM

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: USD 2-3 /piece
Packaging Details: Plastic bag + Box + Carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 100000 piece per week
Contact Now
Detailed Product Description
Product Name: High Voltage Diode Repetitive Peak Reverse Voltage: 3-80KV
Average Forward Current: 5-1000mA Reverse Recovery Time: 80-200nS
Maximum Surge Current: 0.5-25A Peak Forward Voltage: 15-125V
Peak Reverse Current (Irrm1): 2uA Peak Reverse Current (Irrm2): 15uA
Package: Through Hole Operation Temperature: -40~+100℃

Product Description



China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode



Product name: China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode



Items
Symbols
Condition
2CL2FM
Units
Repetitive Peak Reverse Voltage
VRRM
TA=25°C, IR=0.5μA
20
KV
Max Average Forward Current
IFAVM
50Hz at TA=55°C
100
mA
Max Reverse Recovery Time
Trr
TA=25°C
100
nS
Max Surge Current
IFSM

10
A
Max Forward Voltage Drop
VFM
TA=25°C
35
V
Max Reverse Current
IRRM1
TA=25°C & VRRM
2
μA
IRRM2
TA=100°C & VRRM
15
μA
Operating Temperature
Ta

-40~+100
°C
Storage Temperature
Tstg

-40~+120
°C



Out Drawing





China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode



Related Products



China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode



China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode

Application



China made 2CL2FM 20KV 100mA 100nS Axial Lead High Voltage Fast Recovery Diode



Features                                                         Applications
• High speed switching                                      • High voltage, Medium Power
• High voltage power supply                              • High voltage generator
• High reliability design                                      • Small package, Epoxy resin
• Voltage multiplier assembly                             • Microwave Power
