China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode

I'm Online Chat Now

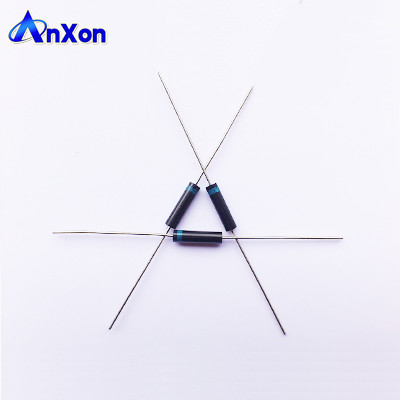

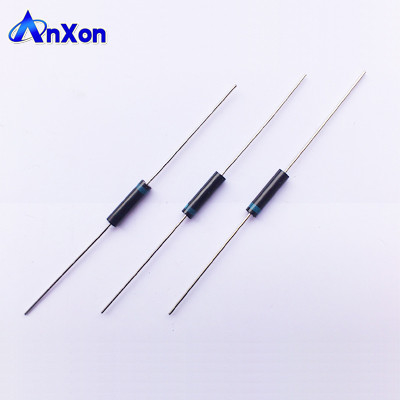

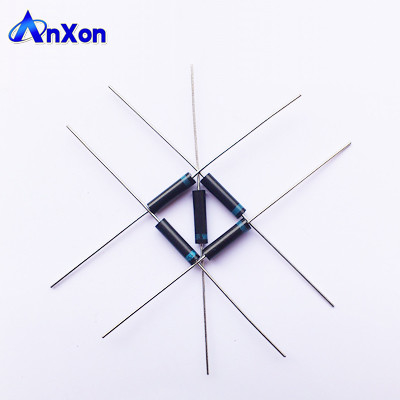

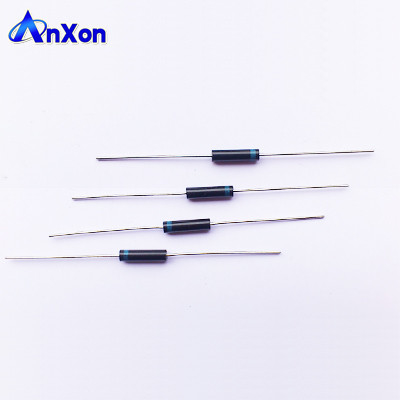

China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode

China China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode supplier
China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode supplier China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode supplier China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode supplier China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode supplier China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode supplier

Large Image :  China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode

Product Details:

Place of Origin: China
Brand Name: China
Model Number: BR4

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: USD 2-3 /piece
Packaging Details: Plastic bag + Box + Carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 100000 piece per week
Contact Now
Detailed Product Description
Product Name: High Voltage Diode Repetitive Peak Reverse Voltage: 3-80KV
Average Forward Current: 5-1000mA Reverse Recovery Time: 80-200nS
Maximum Surge Current: 0.5-25A Peak Forward Voltage: 15-125V
Peak Reverse Current (Irrm1): 3uA Peak Reverse Current (Irrm2): 30uA
Package: Through Hole Operation Temperature: -40~+100℃

Product Description



China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode



Product name: China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode



Items
Symbols
Condition
BR4
Units
Repetitive Peak Reverse Voltage
VRRM
TA=25°C, IR=0.5μA
4
KV
Reverse current VB   4.8 KV
Max Average Forward Current
IFAVM
50Hz at TA=55°C
1
A
Max Reverse Recovery Time
Trr
TA=25°C
 -
nS
Max Surge Current
IFSM

40
A
Max Forward Voltage Drop
VFM
TA=25°C
4.4
V
Max Reverse Current
IRRM1
TA=25°C & VRRM
3
μA
IRRM2
TA=100°C & VRRM
30
μA
Operating Temperature
Ta

-40~+100
°C
Storage Temperature
Tstg

-40~+120
°C



Out Drawing





China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode

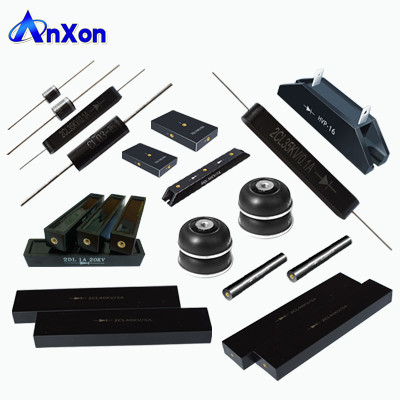

Related Products



China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode



China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode

Application



China Supplier BR4 4KV 1A High Voltage Ultrafast Rectifier Diode



Features                                                         Applications
• High speed switching                                      • High voltage, Medium Power
• High voltage power supply                              • High voltage generator
• High reliability design                                      • Small package, Epoxy resin
• Voltage multiplier assembly                             • Microwave Power
