AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode

I'm Online Chat Now

AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode

China AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode supplier
AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode supplier AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode supplier AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode supplier AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode supplier AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode supplier

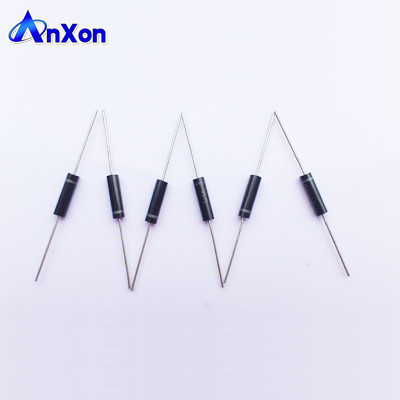

Large Image :  AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode

Product Details:

Place of Origin: China
Brand Name: China
Model Number: BR6F

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: USD 2-3 /piece
Packaging Details: Plastic bag + Box + Carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 100000 piece per week
Contact Now
Detailed Product Description
Product Name: High Voltage Diode Repetitive Peak Reverse Voltage: 3-80KV
Average Forward Current: 5-1000mA Reverse Recovery Time: 80-200nS
Maximum Surge Current: 0.5-25A Peak Forward Voltage: 15-125V
Peak Reverse Current (Irrm1): 5uA Peak Reverse Current (Irrm2): 50uA
Package: Through Hole Operation Temperature: -40~+100℃

Product Description



AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode



Product name: AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode



Items
Symbols
Condition
BR6F
Units
Repetitive Peak Reverse Voltage
VRRM
TA=25°C, IR=0.5μA
6
KV
Reverse current VB   7.2 KV
Max Average Forward Current
IFAVM
50Hz at TA=55°C
0.6
A
Max Reverse Recovery Time
Trr
TA=25°C
150
nS
Max Surge Current
IFSM

30
A
Max Forward Voltage Drop
VFM
TA=25°C
16
V
Max Reverse Current
IRRM1
TA=25°C & VRRM
5
μA
IRRM2
TA=100°C & VRRM
50
μA
Operating Temperature
Ta

-40~+100
°C
Storage Temperature
Tstg

-40~+120
°C



Out Drawing





AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode

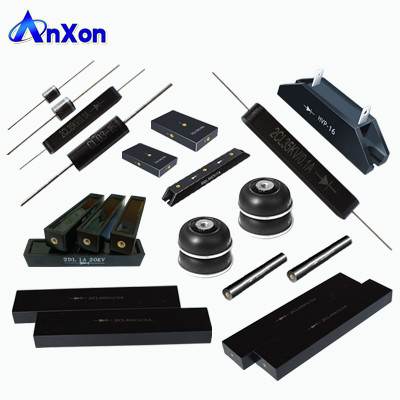

Related Products



AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode



AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode

Application



AnXon BR6F 6KV 0.6A 150nS Recovery Rectifier High Current High Voltage Diode



Features                                                         Applications
• High speed switching                                      • High voltage, Medium Power
• High voltage power supply                              • High voltage generator
• High reliability design                                      • Small package, Epoxy resin
• Voltage multiplier assembly                             • Microwave Power
