HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode

I'm Online Chat Now

HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode

China HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode supplier
HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode supplier HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode supplier HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode supplier HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode supplier HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode supplier

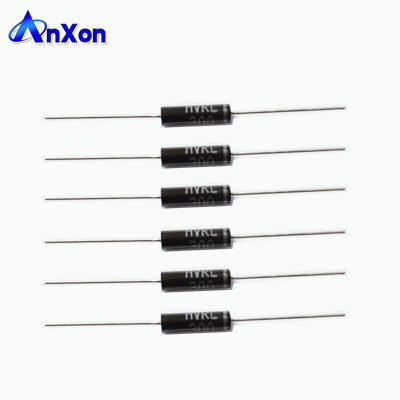

Large Image :  HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode

Product Details:

Place of Origin: China
Brand Name: China
Model Number: HV600S25

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: USD 2-3 /piece
Packaging Details: Plastic bag + Box + Carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 100000 piece per week
Contact Now
Detailed Product Description
Product Name: High Voltage Diode Repetitive Peak Reverse Voltage: 3-80KV
Average Forward Current: 5-1000mA Reverse Recovery Time: 80-200nS
Maximum Surge Current: 0.5-25A Peak Forward Voltage: 15-125V
Peak Reverse Current (Irrm1): 5uA Peak Reverse Current (Irrm2): 50uA
Package: Through Hole Operation Temperature: -40~+100℃

Product Description



HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode



Product name: HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode​​



Items
Symbols
Condition
HV600S25
Units
Repetitive Peak Reverse Voltage
VRRM
TA=25°C, IR=0.5μA
25
KV
Max Average Forward Current
IFAVM
50Hz at TA=55°C
300
mA
Max Reverse Recovery Time
Trr
TA=25°C
 -
nS
Max Surge Current
IFSM

40
A
Max Forward Voltage Drop
VFM
TA=25°C
21
V
Max Reverse Current
IRRM1
TA=25°C & VRRM
5
μA
IRRM2
TA=100°C & VRRM
50
μA
Operating Temperature
Ta

-40~+100
°C
Storage Temperature
Tstg

-40~+120
°C



Out Drawing





HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode

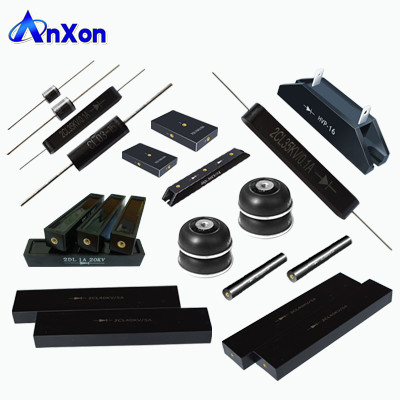

Related Products



HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode



HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode

Application



HV600S25 25KV 300mA High Voltage New and Original Ultra Recovery Diode



Features                                                         Applications
• High speed switching                                      • High voltage, Medium Power
• High voltage power supply                              • High voltage generator
• High reliability design                                      • Small package, Epoxy resin
• Voltage multiplier assembly                             • Microwave Power
