China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode

I'm Online Chat Now

China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode

China China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode supplier
China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode supplier China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode supplier China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode supplier China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode supplier China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode supplier

Large Image :  China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode

Product Details:

Place of Origin: CN
Brand Name: China
Model Number: 2CL20KV/3A

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: USD 2-3 /piece
Packaging Details: Plastic bag + Box + Carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 100000 piece per week
Detailed Product Description
Product Name: High Voltage Diode Repetitive Peak Reverse Voltage: 7.5-300KV
Average Forward Current: 0.1-6A Reverse Recovery Time: 80-200nS
Maximum Surge Current: 0.5-120A Peak Forward Voltage: 11-400V
Peak Reverse Current (Irrm1): 10uA Peak Reverse Current (Irrm2): 100uA
Package: Through Hole Operation Temperature: -40~+100℃

Product Description



China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode



Product name: China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode



Items
Symbols
Condition
2CL20KV/3A
Units
Repetitive Peak Reverse Voltage
VRRM
TA=25°C, IR=0.5μA
20
KV
Max Average Forward Current
IFAVM
50Hz at TA=55°C
3
A
Max Reverse Recovery Time
Trr
TA=25°C
 -
nS
Max Surge Current
IFSM

90
A
Max Forward Voltage Drop
VFM
TA=25°C
24
V
Max Reverse Current
IRRM1
TA=25°C & VRRM
10
μA
IRRM2
TA=100°C & VRRM
100
μA
Operating Temperature
Ta

-40~+100
°C
Storage Temperature
Tstg

-40~+120
°C



Out Drawing





China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode

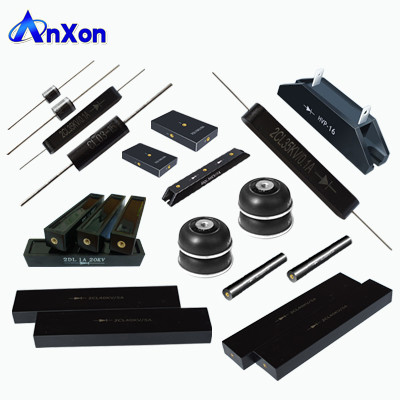

Related Products



China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode



China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode

Application



China Supplier 2CL20KV/3A 20KV 3A Silicon Rectifier High Voltage Diode



Features                                                         Applications
• High speed switching                                      • High voltage, Medium Power
• High voltage power supply                              • High voltage generator
• High reliability design                                      • Small package, Epoxy resin
• Voltage multiplier assembly                             • Microwave Power
