China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode

I'm Online Chat Now

China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode

China China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode supplier
China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode supplier China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode supplier China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode supplier China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode supplier China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode supplier

Large Image :  China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode

Product Details:

Place of Origin: China
Brand Name: AnXon
Model Number: JH950

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: USD 2-3 /piece
Packaging Details: Plastic bag + Box + Carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 100000 piece per week
Contact Now
Detailed Product Description
Product Name: High Voltage Diode Repetitive Peak Reverse Voltage: 7.5-300KV
Average Forward Current: 0.1-6A Reverse Recovery Time: 80-200nS
Maximum Surge Current: 0.5-120A Peak Forward Voltage: 11-400V
Peak Reverse Current (Irrm1): 5uA Peak Reverse Current (Irrm2): 50uA
Package: Through Hole Operation Temperature: -40~+100℃

Product Description



China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode



Product name: China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode



Items
Symbols
Condition
JH950
Units
Repetitive Peak Reverse Voltage
VRRM
TA=25°C, IR=0.5μA
240
KV
Max Average Forward Current
IFAVM
50Hz at TA=55°C
0.1
A
Max Reverse Recovery Time
Trr
TA=25°C
 -
nS
Max Surge Current
IFSM

3
A
Max Forward Voltage Drop
VFM
TA=25°C
288
V
Max Reverse Current
IRRM1
TA=25°C & VRRM
5
μA
IRRM2
TA=100°C & VRRM
50
μA
Operating Temperature
Ta

-40~+100
°C
Storage Temperature
Tstg

-40~+120
°C



Out Drawing





China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode

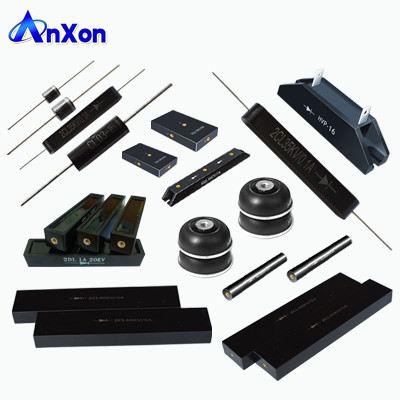

Related Products



China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode



China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode

Application



China made JH950 240KV 0.1A High Frequency Bridge Rectifier HV Diode



Features                                                         Applications
• High speed switching                                      • High voltage, Medium Power
• High voltage power supply                              • High voltage generator
• High reliability design                                      • Small package, Epoxy resin
• Voltage multiplier assembly                             • Microwave Power
