AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor

I'm Online Chat Now

AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor

China AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor supplier
AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor supplier AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor supplier AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor supplier AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor supplier AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor supplier AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor supplier

Large Image :  AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor

Product Details:

Place of Origin: China
Brand Name: China
Model Number: 900V 1075UF

Payment & Shipping Terms:

Minimum Order Quantity: 1
Payment Terms: T/T, Western Union, PayPal
Contact Now
Detailed Product Description
Rated Voltage: 900VDC Rated Capacitance: 1075UF
Product Name: Metallized Polypropylene Film Capacitor Certificate: RoHS/ISO9000
Material: Metalized Polypropylene Brand: AnXon
Keywords: AnXon Film Capacitor

Product Description

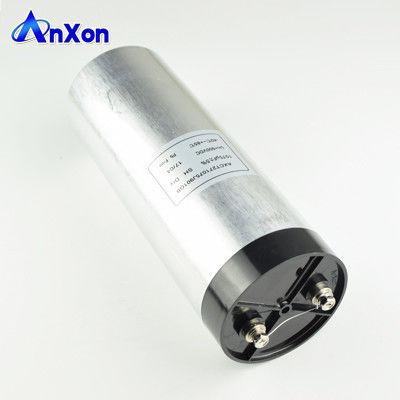

AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor



AnXon DC Link capacitors are especially designed for applications in high power converter technology where due to increasing electrical requirements they are more and more substituting electrolytic capacitors. Manufactured with a low loss polypropylene dielectric they show a higher current carrying capability as well as lower dissipation/self-heating at high frequencies compared to electrolytic capacitors. High capacity DC-Link Capacitor consists of wound metallized Polypropylene film, cylindrical plastic casing sealed with thermosetting resin. This capacitor is suitable for use in DC filter circuits, Solar Inverter, Industrial Inverter.






AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor

Specification
Specifications
Reference value
Reference standards
IEC 61071:2007, GB/T 17702-2013
Working temperature range
-40℃~+85℃, 105℃ upon request
Rated voltage
900VDC
Rated capacitance
1075UF
Size / Dimension(DxH)
D:96mm, H:265mm,M6X9,M16X25
Capacitance tolerance
±5%(J),±10%(K)
Test voltage between terminals
1.5Un 10s(25℃±5℃)
Test voltage terminals to case

   1.5Un+1000VAC 10s(50Hz,25℃±5℃)

Dielectric dissipation factor
≤2x10-4 @100Hz,25℃±5℃
Life expectancy
100,000 hours [Θmax(hotspot)≤+70℃]



AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor





Product Application



DC Link capacitors are especially designed for applications in high power converter technology where due to increasing electrical requirements they are more and more substituting electrolytic capacitors. mostly used in Transportation, Automotive, Renewable Energy, Power Distribution sectors and other industrial applications such as: DC Link, Traction, Industrial drives, Elevators, Power Electronics Welding, Furnaces, Induction Heating, Lasers, Electric / Hybrid Vehicles, DC Filters, Converters, Inverters, Motor drives, Wind energy, power modules and stacks, Solar energy, Car charger stations, Energy storage, Urban transport equipment, Electrical transportation applications, Uninterruptible power supplies, Impulse discharge capacitors.
AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor
Typical Application
PWM Frequency Converter, PWM (Pulse Width Modulation) frequency converter controlled AC motors are being used in a big numbers throughout a wide range of industrial applications. PWM frequency converter controlled AC motors are usually more reliable than those supplied directly on grid. The power supplied to the induction motor by a PWM frequency converter has some disadvantages too, Most industrial applications use of Voltage Source Inverter (VSI) type converters. A typical voltage source inverter frequency converter is designed of three power sections : AC/DC converter (rectifier), DC-link, and DC/AC
inverter. Frequency Converter, also named as AC power source, is an electronic device to convert fixed frequency, fixed
voltage to variable frequency variable voltage. both single phase and three phase solid state (static) frequency converters,
power capacity from 500VA to 600kVA.
Variable Frequency Drive (VFD), also named as frequency inverter, AC drive, variable speed drive (VSD), adjustable frequency
drive (AFD) etc. is an energy saving device special for AC motor speed controls by changing fixed frequency to variable
frequency to adjust the motor speed according to the loads demand. single phase input & output VFD (1/2hp to 5hp),
single phase to three phase VFD (1/2hp to 10hp) and three phase VFD (1hp to 500hp)
Variable Speed Drive (VSD), medium voltage variable speed drives (VSD) that delivers energy efficiency and reliability to drive
profitable operations in wide range of industrial applications high frequency variable speed drives (also known as Adjustable
Speed Drives). Variable Speed Drive is a device that regulates the rotational force and speed of electric motor by changing the
frequency of the input power to the motor.
AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor



Related Products

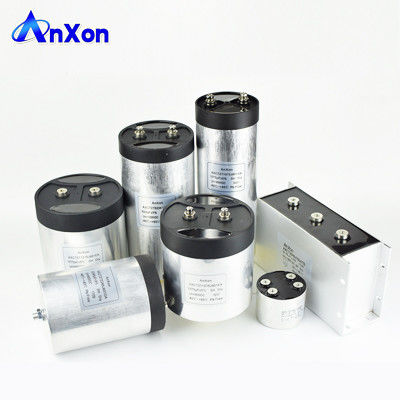

Power electronics film capacitor contains a wide range of DC link film capacitors, AC filter film capacitors, IGBT snubber film capacitor, GTO snubber capacitors, Resonant capacitors, Welding machine film capacitors, Induction heating machine capacitors, AC power supply capacitors, Energy storage capacitors, Power factor compensation capacitors etc...
AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor



AnXon DC-Link capacitors are especially designed for applications in high power converter technology where due to increasing electrical requirements they are more and more substituting electrolytic capacitors. Manufactured with a low loss polypropylene dielectric they show a higher current carrying capability as well as lower dissipation/self-heating at high frequencies compared to electrolytic capacitors. Further outstanding features are, e.g.:
* Very high capacitance/volume ratio
* High voltage rating per component
* Very low dissipation factor (ESR)
* Very high insulation resistance
* Excellent self-healing properties
* Long life expectancy
* Non-polar construction
* Particularly reliable contact configuration
* High shock and vibration resistance
* Outstanding mechanical stability

AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor



Company Profie



AnXon strength lies in the design and production of customized products requiring experience and highly developed expertise. Solutions can therefore be offered to all customer needs. Major customer groups are in automotive, consumer and industrial electronics and the lighting industry. Having a strong focus on innovation AnXon has since the very first day set milestones in capacitor technology, we develop and manufacture high quality film capacitors for professional use in all areas of electronics.

AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor

AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor

AnXon High quality CT27 High Voltage Storage 900V 1075UF DC Link Film Capacitor
