Product Details:
Payment & Shipping Terms:
|
| Rated Voltage: | 1100VDC | Rated Capacitance: | 360UF |
|---|---|---|---|
| Product Name: | Metallized Polypropylene Film Capacitor | Certificate: | RoHS/ISO9000 |
| Material: | Metalized Polypropylene | Brand: | AnXon |
| Keywords: | AnXon Film Capacitor |

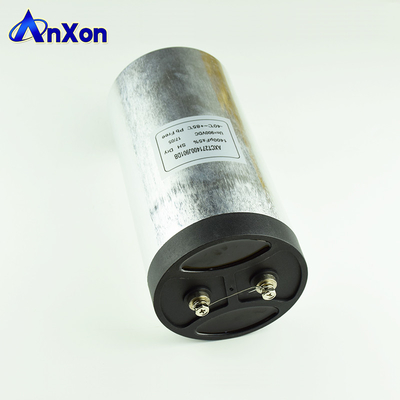

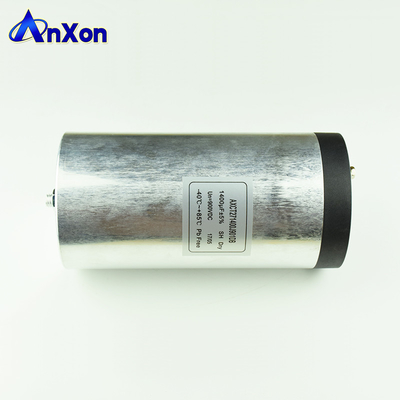

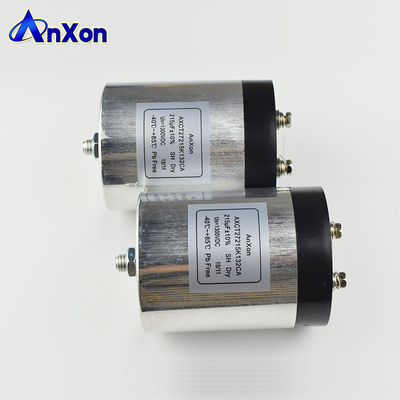

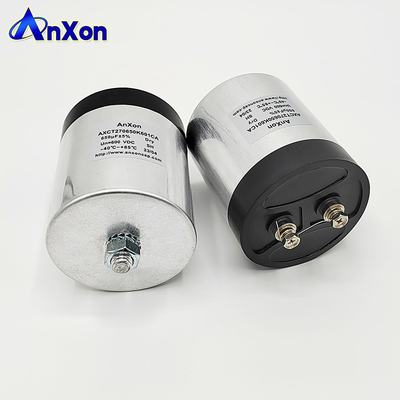

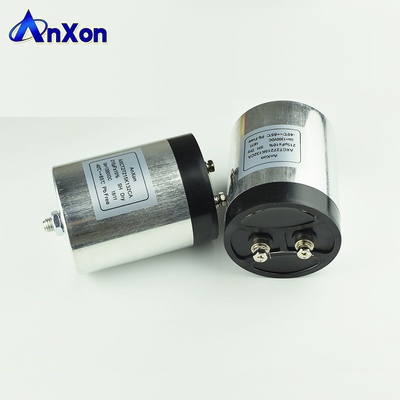

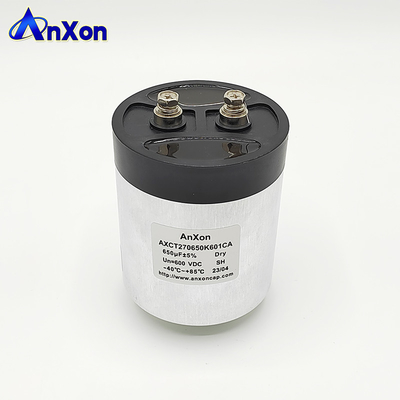

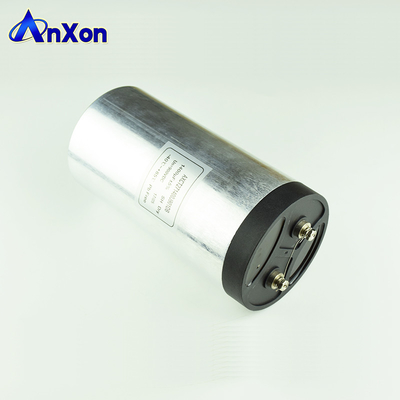

1100V 360UF High Quality Customized CT27 Capacitors For Air Conditioning Capacitor
AnXon DC Link capacitors are especially designed for applications in high power converter technology where due to increasing electrical requirements they are more and more substituting electrolytic capacitors. Manufactured with a low loss polypropylene dielectric they show a higher current carrying capability as well as lower dissipation/self-heating at high frequencies compared to electrolytic capacitors. High capacity DC-Link Capacitor consists of wound metallized Polypropylene film, cylindrical plastic casing sealed with thermosetting resin. This capacitor is suitable for use in DC filter circuits, Solar Inverter, Industrial Inverter.
|
Part Number |
Cn
(μF)
|
ESR
(mΩ)
|
Rth
(℃/W)
|
Imax
(A)
|
Ip
(kA)
|
îs
(kA)
|
Ls
(nH)
|
ФD
(mm)
|
L
(mm)
|
Weight (Kg) |
| UN=1100Vdc, Us=1650Vdc,Ur= 250V | ||||||||||
| AXCT270180K112FAR | 180 | 2.3 | 5.6 | 59 | 2.16 | 4.32 | 55 | 76 | 95 | 0.6 |
| AXCT270240K112CAR | 240 | 1.9 | 5.1 | 65 | 2.88 | 5.76 | 55 | 86 | 95 | 0.72 |
| AXCT270300K112FAR | 300 |
3.5 |
4.6 | 52 | 2.7 | 5.4 | 65 | 76 | 140 | 0.75 |
| AXCT270330K112CAR | 330 | 2.4 | 4.7 | 63 | 3.3 | 6.6 | 60 | 86 | 120 | 1 |
| AXCT270360K112FAR | 360 | 2 | 4.2 | 65 | 3.6 | 7.2 | 55 | 76 | 175 | 1 |
| AXCT270420K112CAR | 420 | 2 | 4.5 | 60 | 4.2 | 8.4 | 65 | 86 | 135 | 1.1 |
| AXCT270420K112CAC | 420 | 1.6 | 4.4 | 75 | 4.7 | 9.4 | 50 | 86 | 155 | 1.25 |
| AXCT270500K112CAR | 500 | 1.8 | 4.3 | 65 | 5.28 | 10.56 | 55 | 86 | 175 | 1.3 |
| AXCT270620K112DAR | 620 | 1.4 | 5 | 80 | 4.96 | 9.92 | 60 | 116 | 120 | 1.5 |
| AXCT270750K112DAR | 750 | 1.6 | 4.9 | 75 | 6 | 12 | 65 | 116 | 140 | 1.75 |
| AXCT270780K112DAR | 780 | 0.9 | 3.6 | 100 | 8.58 | 17.16 | 50 | 116 | 160 | 2 |
| AXCT270920K112DAR | 920 | 1.1 | 3.4 | 100 | 7.36 | 14.72 | 60 | 116 | 175 | 2.2 |
| AXCT271020K112DAR | 1020 | 1 | 2.7 | 100 | 10.2 | 20.4 | 50 | 116 | 230 | 2.8 |
| AXCT271200K112DAR | 1200 | 0.9 | 2.7 | 100 | 10.8 | 21.6 | 50 | 116 | 230 | 2.9 |
AnXon DC-Link capacitors are especially designed for applications in high power converter technology where due to increasing electrical requirements they are more and more substituting electrolytic capacitors. Manufactured with a low loss polypropylene dielectric they show a higher current carrying capability as well as lower dissipation/self-heating at high frequencies compared to electrolytic capacitors. Further outstanding features are, e.g.:
* Very high capacitance/volume ratio
* High voltage rating per component
* Very low dissipation factor (ESR)
* Very high insulation resistance
* Excellent self-healing properties
* Long life expectancy
* Non-polar construction
* Particularly reliable contact configuration
* High shock and vibration resistance
* Outstanding mechanical stability
AnXon strength lies in the design and production of customized products requiring experience and highly developed expertise. Solutions can therefore be offered to all customer needs. Major customer groups are in automotive, consumer and industrial electronics and the lighting industry. Having a strong focus on innovation AnXon has since the very first day set milestones in capacitor technology, we develop and manufacture high quality film capacitors for professional use in all areas of electronics.
