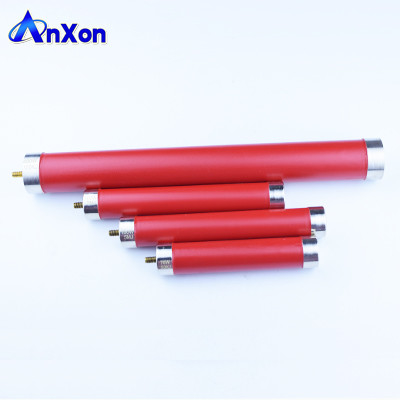

Large Image :  High Voltage Power Supplies Medical Device Motor Drive Circuits Resistor

Product Details:

Place of Origin: China
Brand Name: AnXon for High Voltage Resistor
Certification: RoHS
Model Number: RI80S High Voltage Resistor

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: USD1/PC-USD80/PC
Packaging Details: PE Foam + Carton
Delivery Time: 2-3 Weeks
Payment Terms: Western Union, D/P, T/T, L/C
Supply Ability: 1000000PCS
Contact Now
Detailed Product Description
Product Name: Power Supplies Resistor Rated Power: 5W-500W
Resistance: 50K~999M Packaging: Surface Mount
Application: High Voltage Color: Red, Black , Green
Temperature Coefficient: ≤150ppm/℃ Performance Requirements: R≤ ± (1% R + 0.05Ω)
Reference Standard: GB/T5728-2003 Conditions Of Use: -55 °C - +70 °C

Product Description
High Voltage Power Supplies Medical Device Motor Drive Circuits Resistor

High Voltage Power Supplies Medical Device Motor Drive Circuits Resistor

Rated Power: 5W 8W 10W 15W 20W 30W 50W 80W 100W 150W 200W 300W 400W 500W

RI80S Outdrawing
High Voltage Power Supplies Medical Device Motor Drive Circuits Resistor





Testing





High Voltage Power Supplies Medical Device Motor Drive Circuits Resistor
Test items
Testing method
GB / T5729 IEC115-1
Performance requirements
Rapid changes in temperature
Lower category temperature - room temperature - upper category temperature - room temperature, 5 cycles each limit temperature is kept 30min
ΔR≤ ± (1% R + 0.05Ω)
Climatic sequence
Dry heat - Damp heat, cyclic - cold - Low pressure - cycle heat - DC load DC voltage is applied Length 1min
ΔR≤ ± (5% R + 0.1Ω)
Terminal Strength
Rally test
ΔR≤ ± (1% R + 0.05Ω)
Resistance to soldering heat
Groove welding method, the bath temperature: 350 ± 10 ℃ time: 3.5 ± 0.5s Immersion depth: 2 ± 0.5mm
ΔR≤ ± (1% R + 0.05Ω)
overload
Applying a 2.5 or 2 times the rated power load 5s
ΔR≤ ± (1% R + 0.05Ω)
Steady heat
Applying a DC voltage (limit voltage of the rated voltage or elements) Length 1min
ΔR≤ ± (5% R + 0.1Ω)
Upper category temperature durability
Resistor on the upper category temperature specified duration 1000h
ΔR≤ ± (5% R + 0.1Ω)

Reference standard

GB/T5728-2003 Fixed Resistors for Use in Electronic Equipment Part I: General Specifications
GB/T2828-2002 batch inspection technology sampling procedures and sampling tables
GB/T2691-1994 resistor capacitor marking method

Conditions of use

1, the cooling method: natural cooling
2, the use of temperature: -55 °C - +70 °C



How To Order



High Voltage Power Supplies Medical Device Motor Drive Circuits Resistor



Related Products

High Voltage Power Supplies Medical Device Motor Drive Circuits Resistor

P/N
Rated Power
Resistance
(Ohm)
P/N
Rated Power
Resistance
(Ohm)
AXRI80-2W-1MR-J
2W
1M
AXRI80-10W- 3GR-J
10W
3G
AXRI80-2W-2MR-J
2W
2M
AXRI80-10W- 5GR-J
10W
5G
AXRI80-2W- 3MR-J
2W
3M
AXRI80-10W- 10GR-J
10W
10G
AXRI80-5W- 1MR-J
5W
1M
AXRI80-10W- 20GR-J
10W
20G
AXRI80-5W- 2MR-J
5W
2M
AXRI80-10W- 30GR-J
10W
30G
AXRI80-5W- 3MR-J
5W
3M
AXRI80-10W- 50GR-J
10W
50G
AXRI80-5W- 5MR-J
5W
5M
AXRI80-10W- 100GR-J
10W
100G
AXRI80-5W- 10MR-J
5W
10M
AXRI80-10W- 2KR-J
10W
2K
AXRI80-5W- 20MR-J
5W
20M
AXRI80-10W- 10KR-J
10W
10K
AXRI80-5W- 25MR-J
5W
25M
AXRI80-10W- 11KR-J
10W
11K
AXRI80-5W- 30MR-J
5W
30M
AXRI80-10W- 20KR-J
10W
20K
AXRI80-5W- 50MR-J
5W
50M
AXRI80-10W- 50KR-J
10W
50K
AXRI80-5W- 100MR-J
5W
100M
AXRI80-10W- 100KR-J
10W
100K
AXRI80-5W- 200MR-J
5W
200M
AXRI80-10W- 150KR-J
10W
150K
AXRI80-5W- 300MR-J
5W
300M
AXRI80-10W- 300KR-J
10W
300K
AXRI80-5W- 500MR-J
5W
500M
AXRI80-10W- 200KR-J
10W
200K
AXRI80-5W- 2KR-J
5W
2K
AXRI80-10W- 500KR-J
10W
500K
AXRI80-5W- 5KR-J
5W
5K
AXRI80-20W- 10R-J
20W
10
AXRI80-5W- 10KR-J
5W
10K
AXRI80-20W- 1MR-J
20W
1M
AXRI80-5W- 20KR-J
5W
20K
AXRI80-20W- 5MR-J
20W
5M
AXRI80-5W-50 KR-J
5W
50K
AXRI80-20W- 10MR-J
20W
10M
AXRI80-5W- 100KR-J
5W
100K
AXRI80-20W- 50MR-J
20W
50M
AXRI80-5W- 150KR-J
5W
150K
AXRI80-20W- 100MR-J
20W
100M
AXRI80-5W- 200KR-J
5W
200K
AXRI80-20W- 10KR-J
20W
10K
AXRI80-5W- 300KR-J
5W
300K
AXRI80-20W- 50KR-J
20W
50K
AXRI80-5W- 500KR-J
5W
500K
AXRI80-20W- 100KR-J
20W
100K
AXRI80-5W- 1GR-J
5W
1G
AXRI80-20W- 500KR-J
20W
500K
AXRI80-5W- 2GR-J
5W
2G
AXRI80-50W- 200R-J
50W
200
AXRI80-5W- 3GR-J
5W
3G
AXRI80-50W- 1MR-J
50W
1M
AXRI80-5W- 5GR-J
5W
5G
AXRI80-50W- 2MR-J
50W
2M
AXRI80-5W- 10GR-J
5W
10G
AXRI80-50W- 5MR-J
50W
5M
AXRI80-5W- 20GR-J
5W
20G
AXRI80-50W- 10MR-J
50W
10M
AXRI80-5W- 30GR-J
5W
30G
AXRI80-50W- 100MR-J
50W
100M
AXRI80-5W- 50GR-J
5W
50G
AXRI80-50W- 1KR-J
50W
1K
AXRI80-5W- 100GR-J
5W
100G
AXRI80-50W- 100KR-J
50W
100K
AXRI80-10W- 10R-J
10W
10
AXRI80-50W- 200KR-J
50W
200K
AXRI80-10W- 1MR-J
10W
1M
AXRI80-70W- 50KR-J
70W
50K
AXRI80-10W- 2MR-J
10W
2M
AXRI80-100W- 1MR-J
100W
1M
AXRI80-10W- 3MR-J
10W
3M
AXRI80-100W- 2MR-J
100W
2M
AXRI80-10W- 5MR-J
10W
5M
AXRI80-100W- 5MR-J
100W
5M
AXRI80-10W- 10MR-J
10W
10M
AXRI80-100W- 10MR-J
100W
10M
AXRI80-10W- 20MR-J
10W
20M
AXRI80-100W- 100MR-J
100W
100M
AXRI80-10W-30 MR-J
10W
30M
AXRI80-130W- 1MR-J
130W
1M
AXRI80-10W-50 MR-J
10W
50M
AXRI80-250W- 6KR-J
250W
6K
AXRI80-10W- 100MR-J
10W
100M
AXRI80-250W- 10KR-J
250W
10K
AXRI80-10W- 150MR-J
10W
150M
AXRI80-250W- 27K2R-J
250W
27.2K
AXRI80-10W- 200MR-J
10W
200M
AXRI80-250W- 38KR-J
250W
38K
AXRI80-10W- 300MR-J
10W
300M
AXRI80-250W- 50KR-J
250W
50K
AXRI80-10W- 500MR-J
10W
500M
AXRI80-400W- 100KR-J
400W
100K
