Payment & Shipping Terms:
|Type:||AC Ceramic Capacitor||Capacitance:||10pF~1000pF|
|Rated Voltage:||3.6kV~36kV||Application:||Live Line|
|Operating Temperature:||-30C ~ 85C||Partial Discharge:||1PC Min At 50% Of Rated Voltage|
|Special:||Custom Service Is Available|

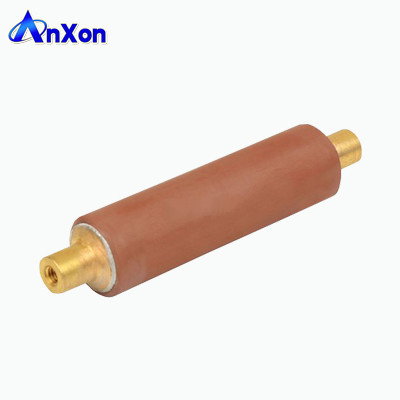

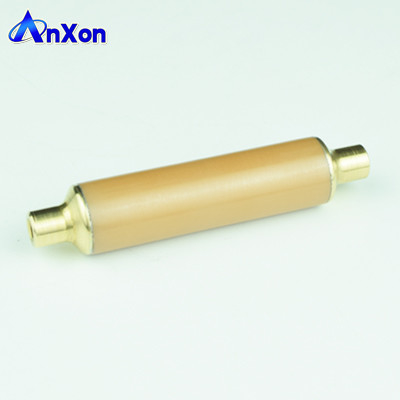

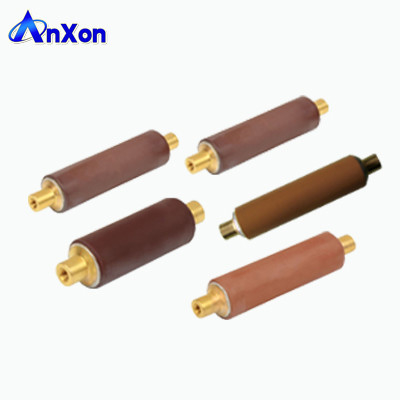

AnXon High Voltage AC Ceramic Capacitor 12KV 20pf High voltage live line capacitor
AnXon provide high quality customized AC live line ceramic capacitors
|12KV 20pf||48KVac||75KVac||≤5pc 13.2KVac||M4|
|12KV 25pf||48KVac||75KVac||≤5pc 13.2KVac||M4|
|12KV 30pf||48KVac||75KVac||≤5pc 13.2KVac||M4|
|12KV 40pf||48KVac||75KVac||≤5pc 13.2KVac||M4|
|12KV 50pf||48KVac||75KVac||≤5pc 13.2KVac||M4|
|12KV 55pf||52KVac||75KVac||≤5pc 13.2KVac||M4/M6|
|12KV 100pf||48KVac||75KVac||≤5pc 13.2KVac||M4|
|12KV 125pf||52KVac||75KVac||≤5pc 13.2kVAC||M4/M6|
|12KV 150pf||52KVac||75KVac||≤5pc 13.2kVAC||M4|
|12KV 200pf||52KVac||75KVac||≤5pc 13.2kVAC||M4/M6|
|15KV 75pf||60KVac||95KVac||≤5pc 13.2KVac||M4|
High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage, Excellent behavior on pulse and fast discharge conditions, Low dissipation factor, Very low partial discharge, Coated and uncoated devices available Used for various AC and DC high voltage circuit applications.
High voltage AC uses live line ceramic capacitor, the main applications include live line indicators, AC dividers, grading systems for power distribution network, protection for HV switches and power circuit breakers.Coupling, by-passing high frequency circuits also use HV ceramic disc capacitors.
High Voltage AC Live Line Ceramic Capacitor from AnXon are 100% tested of the below parameters
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.
