20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor

I'm Online Chat Now

20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor

China 20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor supplier
20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor supplier 20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor supplier 20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor supplier

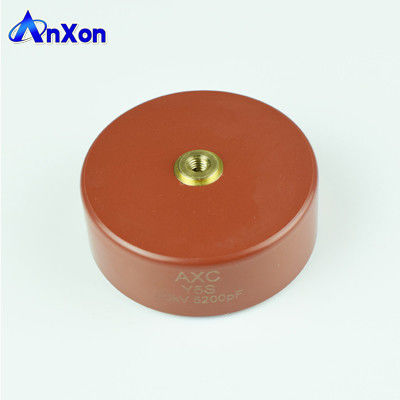

Large Image :  20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor

Product Details:

Place of Origin: CN
Brand Name: AnXon
Model Number: CT8G

Payment & Shipping Terms:

Minimum Order Quantity: 50
Packaging Details: Foam + Carton
Delivery Time: 25-28 days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 10000/Month
Detailed Product Description
Name: Doorknob Ceramic Capacitor Voltage: 20KV
Capacitance: 5200PF Dielectric: N4700
Color: Red Tolerance: ±10%



20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor



High Voltage Ceramic Capacitor, Molded type Ultra-high Voltage Ceramic Capacitors offered by AnXon Electronic, high quality ceramic capacitor supplier



Rated Spec: 20KV 5200PF,20KV 522
Tolerance: K ±10%, J ±5% available on request
Type: Molded / Doorknob / Screw Mounting
Ceramic Dielectric : N4700
Operating Temperature: -35C ~ 85C
Size / Dimension(ΦD×T*F): D:60mm, T:22mm, H:26mm, M5



Product features


20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor



High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage. voltage from 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV, etc. Used for various AC and DC high voltage circuit applications.



Common types of class 1 ceramic materials are: NPO, C0G, UJ, SL, N4700, etc. The temperature coefficient of these type is quite good. There is a linear relationship of temperature and capacitance. Frequency characteristics and voltage characteristics are also very good, but because the dielectric constant is small, it not suitable to make large capacitance capacitors.



The common types of class 2 ceramic materials are: Y5R, Y5P, Y5T, Y5S, Y5U, Y5V, etc. The temperature coefficient of these ceramic material is non-linear, and the capacity can be quite large, However, the frequency and temperature are not constant.



AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.



20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor



The Cylindrical ultra high voltage ceramic capacitors of the AnXon CT8G series have been widely used in power transmission and distribution system power equipment and pulse energy processing equipment such as: power compensation, current limiting, filtering, metering, energy storage and distribution. The particularity of the power system: AC high voltage, high frequency, in the outdoor environment (-40°C to +60°C), lightning strike, high current, etc. In harsh environments, the capacitor is required to have super stability, ie The rate of change is small; at the same time, the measurement, the voltage, etc., require high precision, which places extremely severe demands on the partial discharge of high voltage ceramic capacitors under such circumstances. AnXon high voltage ceramic capacitors have excellent charge and discharge performance, high withstand voltage, good frequency characteristics, can withstand high impulse voltage, ultra low partial discharge characteristics, and AC and DC applications for customers to choose.



High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:



• Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc

• Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc

• Impulse Voltage: 45KVdc-225KVdc

• Capacitance Range: 10pF - 100000pF

• Operating frequency: 20KHZ-1000KHZ

• Materials: K100, K150, K300, K650, K850, K1000, K1500, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V



High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer.



More related specifications



Part No. Spec. Dimension(mm) Replacement of P/ N.
D T H M
CT8G20KVDL172K 20KV 1700PF 38 20 24 5 FHV-1AN
CT8G20KVDL202K 20KV 2000PF 48 20 24 5 HP50EY0202M
CT8G20KVDL222M 20KV 2200PF 48 20 24 5 HP50EY0222M
CT8G20KVDL242M 20KV 2400PF 43 22 26 4 DHSF44D242ZN2B
CT8G20KVDL252M 20KV 2500PF 48 20 24 5 HP50EY0252M / UHV-2A
CT8G20KVDL302M 20KV 3000PF 58 20 24 5 HP60EY0302M
CT8G20KVDL332M 20KV 3300PF 58 20 24 5 HP60EY0332M
CT8G20KVDL372M 20KV 3700PF 58 20 24 5 HP60EY0372M
CT8G20KVDL402M 20KV 4000PF 58 20 24 5 HP60EY0402M / UHV-3A
CT8G20KVDL472M 20KV 4700PF 58 20 24 5 715C20DKD47
CT8G20KVDL482K 20KV 4800PF 60 22 26 4 DHSF44D482ZT2B
CT8G20KVDL532M 20KV 5200PF 60 22 26 5 FHV-3AN
CT8G20KVDL682M 20KV 6800PF 60 22 26 5 715C20DKD68
CT8G20KVD103M 20KV 10000PF 80 34 38 5



Product types



AnXon offers a variety of conventional ultra high voltage ceramic capacitors, but also can customize a variety of special-shaped capacitors according to customer requirements

20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor

Quick Select guide of mainly used ceramic dielectric



Dielectric class SL N4700 Y5T Y5S
Operating temperature range (ºC) -30/+85°C -30/+85°C -30/+85°C -30/+85°C
Capacitance change with temperature (%) +/-650PPM/°C +22/-33% +22/-33% +22/-22%
Typical dielectric constant 150~1000 1850~2150 2500~6500 3500~4500
Dielectric strength (kVDC/mm) 8.0 8.0 6.0 6.0
Dissipation factor (1kHz/1VRMS/20ºC) 0.06% 0.10% 0.20% 0.20%
Insulation resistance (1000VD/20ºC/60s) >1000GΩ >100GΩ >100GΩ >100GΩ
Rated voltage (UR) 10 to 150kVdc 10 to 150kVdc 10 to 150kVdc 10 to 150kVdc
Test voltage (UTT) (50Hz, in oil, 60s) 12 to 100kVrms 12 to 100kVrms 12 to 100kVrms 12 to 100kVrms
Impulse voltage(UI) 35 to 200kVdc 35 to 200kVdc 35 to 200kVdc 35 to 200kVdc
Capacitance range (20ºC – 1kHz – 1VRMS) 10pF to 500pF 10pF to 5600pF 10pF to 0.02uF 10pF to 0.02uF
Tolerance Standard: ±10% Standard: ±10% Standard: ±10% Standard: ±10%



Product applications



1. Used for high power pulse power supply, particle accelerator, electromagnetic microwave equipment, laser photoelectric equipment, electronic information equipment, radar detection, non-destructive testing X_RAY / CT machinery, material detection, electrostatic precipitator electric field, various types of special pulse power supply.

2. Supply of electricity, acceptance of interrupters of electrical equipment, zero-phase detection, breakers, surge arresters, voltage divider elements of high-voltage measurement equipment, and other circuits that use AC high voltage.

3. High voltage power supply circuit for laser equipment, directional energy/high-energy laser source.

4. High voltage power circuits or other DC high-voltage power circuits for various measurement devices.

5. Power storage, voltage divider and protection circuit.



High voltage doorknob ceramic capacitor applications



• Gas lasers

• High-voltage dividers

• Marx generators, Power generators

• High-voltage power supply, DC HV power supplies

• High-voltage coupling devices

• Power line coupling system for Internet & Telecom

• Lightning arresters, voltage distribution systems

• Electron microscopes, synchroscopes

• Electrostatic coating machines



High voltage doorknob ceramic capacitor Features



• Excellent behavior on pulse and fast discharge conditions

• Low dissipation factor

• Very low partial discharge

• Excellent voltage characteristic

• Molded type, Screw or Axial Leads available

• Coated and uncoated devices available



Quality control



High voltage doorknob ceramic capacitor from AnXon are 100% tested of the below parameters

• Capacitance

• Tolerance

• Dielectric withstanding voltage

• Dissipation Factor

• Insulation Resistance

• Partial discharge: as requested

• impulse voltage: sampling

Rigorous design standards, sophisticated production equipment, advanced production technology, and rigorous testing procedures are the quality assurance of AnXon ultra high voltage ceramic capacitors, and it is also the core of our continuous development and growth. Process and inspection data are maintained on file and available upon special request.

20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor



Company advantage



Since its establishment, Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia. In particular, high voltage screw terminal ceramic capacitors, high voltage lead type disc ceramic capacitors, high voltage MLCC, high frequency high power ceramic capacitors, high voltage ceramic capacitors stacks and multiplier assembly, high temperature ceramic capacitors are greatly trusted by the majority of domestic and foreign customers. AnXon Electronics looking forward to cooperate with you in the near future.

20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor20KV 5200PF high voltage capacitor 20KV 522 Low PD high voltage capacitor

FAQ
What are the Advantages of a High Voltage Doorknob Ceramic Capacitor?



In high voltage ceramic capacitors application field, requiring a small, high voltage and high frequency characteristics. With the progress of materials, electrodes and manufacturing technology, great progress has been made in the development of high voltage ceramic capacitors, and has been widely used. High voltage ceramic capacitors have become an indispensable component of high power high voltage electronic products.

  • Name: doorknob shape high voltage ceramic capacitor
  • Appearance of small size
  • Relative to other material more portable and reliable
  • Rapid pulse charge and discharge performance
  • Capacity with low temperature gradient
  • Under high or low temperature applications
  • Different shapes can be customized

Widely used in high power pulse power, particle accelerators, electromagnetic microwave equipment, laser photoelectric equipment, electronic equipment, radar detection, nondestructive testing, material, electrostatic dust removal electric field, all kinds of special pulse power supply, ect
