| Name: | Doorknob Ceramic Capacitor | Voltage: | 50KV |
|---|---|---|---|
| Capacitance: | 700PF | Dielectric: | Y5S |
| Color: | Red | Tolerance: | ±10% |

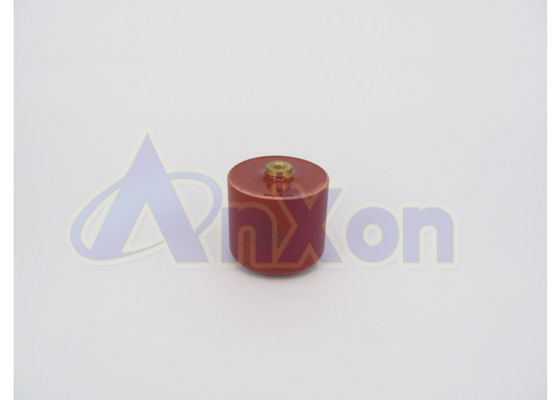

Molded Type CT8G 50KV 700PF High Voltage Door Knob Ceramic Capacitor
High Voltage Ceramic Capacitor 50KV 700PF, Molded type Ultra-high Voltage Ceramic Capacitors 50KVDC 701 high voltage doorknob capacitor, UHV doorknob ceramic capacitor offered by AnXon Electronic
| Rated Spec: | 50KV 700PF , 50KV701 |
| AnXon P/N | AXCHV50D701KDB |
| Tolerance: | K, ±10% |
| Type: | Molded / Doorknob / Screw Mounting |
| Ceramic Dielectric : | Y5S |
| Operating Temperature: | -30C ~ 85C |
| Size / Dimension(ΦD×TH): |
D:38mm, H:36mm |
High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:
High voltage ceramic capacitor supplier, molded doorknob capacitor China manufacturer AnXon Brand Capacitor.
Rated Products
| Part No. | Spec. | Dimension(mm) | Replacement of P/ N. | |||
| D | H | L | M | |||
| CT8G50KVDL101K | 50KV 100PF | 20 | 31 | 35 | 4 | UHV-251A |
| CT8G50KVDL201K | 50KV 200PF | 30 | 31 | 35 | 4 | UHV-252A |
| CT8G50KVDL281K | 50KV 280PF | 30 | 31 | 35 | 5 | HP30E50281M |
| CT8G50KVDL401K | 50KV 400PF | 34 | 31 | 35 | 4 | UHV-253A |
| CT8G50KVDL411K | 50KV 410PF | 38 | 31 | 35 | 5 | HP40E50411M |
| CT8G50KVDL501K | 50KV 500PF | 38 | 31 | 35 | 5 | HP40E50501M |
| CT8G50KVDL561K | 50KV 560PF | 38 | 31 | 35 | 5 | HP40E50561M / UHV-10A |
| CT8G50KVDL701K | 50KV 700PF | 38 | 30 | 34 | 5 | FHV-10AN |
| CT8G50KVDL751K | 50KV 750PF | 48 | 31 | 35 | 5 | HP50E50751M |
| CT8G50KVDL851K | 50KV 850PF | 48 | 31 | 35 | 5 | HP50E50851M |
| CT8G50KVDL102M | 50KV 1000PF | 48 | 31 | 35 | 5 | HP50E50102M / UHV-11A |
| CT8G50KVDL132M | 50KV 1300PF | 48 | 31 | 35 | 5 | FHV-11AN |
| CT8G50KVDL1351M | 50KV 1350PF | 58 | 31 | 35 | 5 | HP60E51351M |
| CT8G50KVDL152M | 50KV 1500PF | 58 | 31 | 35 | 5 | HP60E50152M |
| CT8G50KVDL1651M | 50KV 1650PF | 58 | 31 | 35 | 5 | HP60E51651M |
| CT8G50KVDL172M | 50KV 1700PF | 60 | 31 | 35 | 5 | UHV-12A |
| CT8G50KVDL212M | 50KV 2100PF | 60 | 30 | 34 | 5 | FHV-12AN |
| CT8G50KVDL222M | 50KV 2200PF | 60 | 30 | 34 | 5 | |
| CT8G50KVDL502M | 50KV 5000PF | 80 | 31 | 35 | 5 | |
High Voltage Capacitor Application Guide
• Gas lasers
• High-voltage dividers
• Marx generators, Power generators
• High-voltage power supply, DC HV power supplies
• High-voltage coupling devices
• Power line coupling system for Internet & Telecom
• Lightning arresters, voltage distribution systems
• Electron microscopes, synchroscopes
• Electrostatic coating machines
High Voltage Doorknob Capacitor Features
• Excellent behavior on pulse and fast discharge conditions
• Low dissipation factor
• Very low partial discharge
• Excellent voltage characteristic
• Molded type, Screw or Axial Leads available
• Coated and uncoated devices available
