Home ProductsLeaded Disc Ceramic Capacitor

High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor

I'm Online Chat Now

High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor

China High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor supplier
High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor supplier High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor supplier High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor supplier High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor supplier High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor supplier High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor supplier

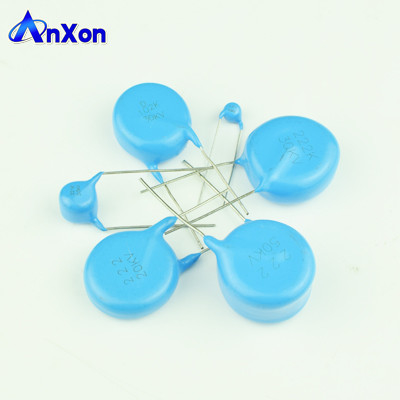

Large Image :  High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor

Product Details:

Place of Origin: China
Brand Name: AnXon
Certification: RoHS/CE/ISO9000
Model Number: CT81

Payment & Shipping Terms:

Packaging Details: Plastic Bag + Box + Carton
Payment Terms: Western Union, D/P, T/T, L/C
Contact Now
Detailed Product Description
Type: Radial Lead Disc Type Color: Blue
Name: Radial Lead Disc Ceramic Capacitor Certificate: RoHS/CE/ISO9000
Package Type: Through Hole Terminal: Wire Lead
Operating Temp: -40C ~ +85C

Product Description
High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor



High Voltage Ceramic Capacitor, Radial lead blue coating epoxy resin disc ceramic capacitor offered by AnXon Electronic, high quality ceramic capacitor supplier

Rated Spec:
 40KV 2200PF, 40KV 222
Tolerance:

 K ±10%, J ±5% available on request

Type:

 Radial leaded / disc / THT through hole mounting

Ceramic Dielectric :

 Y5T

Operating Temperature:

 -40C ~ 85C

Size / Dimension(ΦD×T*F):

 D:32mm, T:17mm, F:20mm

High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage. Used for various AC and DC high voltage circuit applications.

AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.

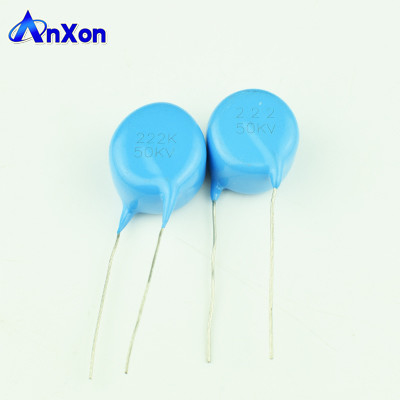

High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor

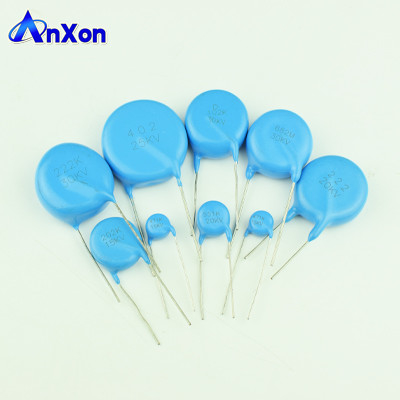

Ultra High Voltage Ceramic Disc Capacitors

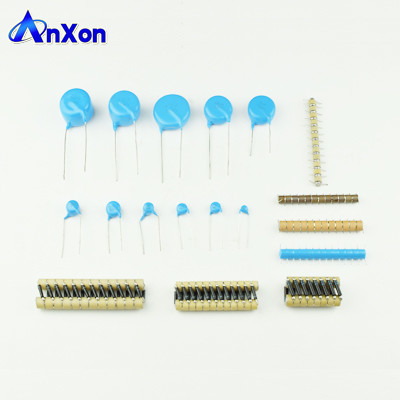

AnXon designs and manufactures high quality ultra high voltage disc ceramic capacitors with blue coating epoxy resin, custom design radial lead disc ceramic capacitors as well as a variety of standard and custom High Voltage & High Capacitance value Ceramic Capacitors.

• Rated Voltage (V): 1KVdc-50KVdc
• Capacitance Range: 10pF - 10000pF
• Operating frequency: 20KHZ-1000KHZ
• Materials: K100, K300, K2500, K3500, K5000, NPO, C0G, SL, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V, Z5U, Z5V

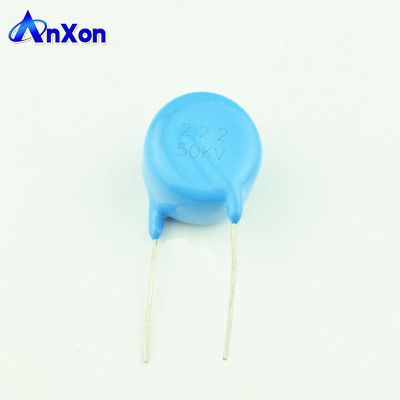

High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor



More related specifications



Custom design radial lead disc ceramic capacitors are available from AnXon electronic, please contact us for details


Capacitor

code

Ceramic Dielectric



Rated Voltage
(kVdc)

Capacitance Max (mm)

C

(pF)

TOL.

(%)

D T F d
40KV 101 N4700 40 100 10 12 11 12.5 0.8
40KV 501 N4700 40 500 10 27 18 20 1.2
40KV 102 N4700 40 1000 10 32 16 20 1.2
40KV 222 Y5T 40 2200 10 32 17 20 1.2
40KV 332 Y5T 40 3300 20 40 18 20 1.2
40KV 103 Y5V 40 10000 20 40 16 20 1.2

50KV 22P

SL 50 22 10 13 11 12.5 0.8
50KV 50P SL 50 50 10 17 11 12.5 0.8
50KV 101 N4700 50 100 10 13 13 12.5 0.8
50KV 501 N4700 50 500 10 27 20 20 1.2
50KV 102 N4700 50 1000 10 32 18 20 1.2


High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor
High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor
High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor



Products Application



High voltage capacitors are specially designed for high voltage applications, such as:

• DC-DC converters, Voltage multipliers,
• Radio and TV receiver, Modems, Interfaces, TV and monitors
• Other electrical appliances where high voltage is present
• High voltage power supplies, HV power supplies
• Electrostatic coating, Arc spray and sputtering, Electrostatic cleaning power supplies, Ion       generator power sources
• X-ray equipment, medical machine



High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor



Quality Control



High voltage radial lead disc ceramic capacitor from AnXon are 100% tested of the below parameters

• Capacitance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance



High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor



Certifications



High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor



Our Company



Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia.



High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor
High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor
High Voltage Ceramic Condenser 40KV 2200PF 222 Lasers Y5T Disc Capacitor



Caution Notice



Caution (Rating)

1. Operating Voltage
When DC-rated capacitors are to be used in AC or ripple current circuits, be sure to maintain the Vp-p value of the applied voltage or the Vo-p which contains DC bias within the rated voltage range.When the voltage is applied to the circuit, starting or stopping may generate irregular voltage for a transit period because of resonance or switching. Be sure to use a capacitor with a rated voltage range that includes these irregular voltages.



2. Operating Temperature and Self-generated Heat

Keep the surface temperature of a capacitor below the upper limit of its rated operating temperature range. Be sure to take into account the heat generated by the capacitor itself. When the capacitor is used in a high frequency current, pulse current or similar current, it may self-generate heat due to dielectric loss. The applied voltage load should be such that the capacitor's self generated heat is within 10°C at an atmosphere temperature of 25°C.


Notice (Rating)


Capacitance change of capacitor


1. Class 1 capacitors
Capacitance might change a little depending on the surrounding temperature or an applied voltage. Please contact us if you intend to use this product in a strict time constant circuit.



2. Class 2 and 3 capacitors
Class 2 and 3 capacitors with temperature characteristics B, E and F have an aging characteristic, whereby the capacitor continually decreases its capacitance slightly if the capacitor is left on for a long time. Moreover, capacitance might change greatly depending on the surrounding temperature or an applied voltage. So, it is not likely to be suitable for use in a time constant circuit. Please contact us if you need detailed information.
