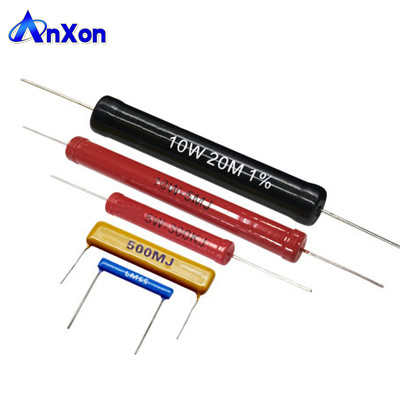

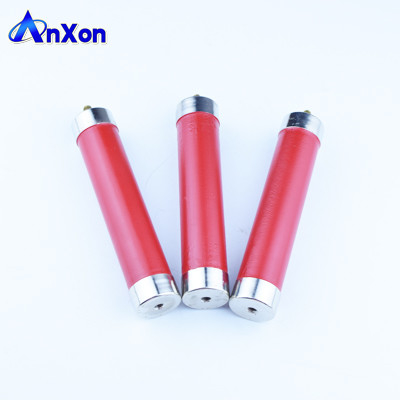

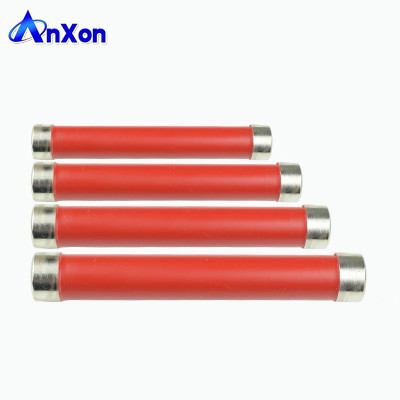

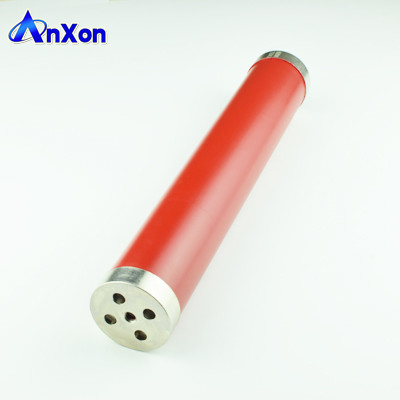

High Voltage X-Ray Equipment Medical Device Non-inductance Resistor

China High Voltage X-Ray Equipment Medical Device Non-inductance Resistor supplier
High Voltage X-Ray Equipment Medical Device Non-inductance Resistor supplier High Voltage X-Ray Equipment Medical Device Non-inductance Resistor supplier High Voltage X-Ray Equipment Medical Device Non-inductance Resistor supplier High Voltage X-Ray Equipment Medical Device Non-inductance Resistor supplier

Large Image :  High Voltage X-Ray Equipment Medical Device Non-inductance Resistor

Product Details:

Place of Origin: CN
Brand Name: China
Certification: RoHS
Model Number: RI80S High Voltage Resistor

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: USD1/PC-USD80/PC
Packaging Details: PE Foam + Carton
Delivery Time: 2-3 Weeks
Payment Terms: Western Union, D/P, T/T, L/C
Supply Ability: 1000000PCS
Detailed Product Description
Product Name: Power Supplies Resistor Rated Power: 5W-500W
Resistance: 50K~999M Packaging: Surface Mount
Application: High Voltage Color: Red, Black , Green
Temperature Coefficient: ≤150ppm/℃ Performance Requirements: R≤ ± (1% R + 0.05Ω)
Reference Standard: GB/T5728-2003 Conditions Of Use: -55 °C - +70 °C

Product Description
High Voltage X-Ray Equipment Medical Device Non-inductance Resistor

High Voltage X-Ray Equipment Medical Device Non-inductance Resistor

Rated Power: 5W 8W 10W 15W 20W 30W 50W 80W 100W 150W 200W 300W 400W 500W

RI80S Outdrawing
High Voltage X-Ray Equipment Medical Device Non-inductance Resistor





Testing





High Voltage X-Ray Equipment Medical Device Non-inductance Resistor
Test items
Testing method
GB / T5729 IEC115-1
Performance requirements
Rapid changes in temperature
Lower category temperature - room temperature - upper category temperature - room temperature, 5 cycles each limit temperature is kept 30min
ΔR≤ ± (1% R + 0.05Ω)
Climatic sequence
Dry heat - Damp heat, cyclic - cold - Low pressure - cycle heat - DC load DC voltage is applied Length 1min
ΔR≤ ± (5% R + 0.1Ω)
Terminal Strength
Rally test
ΔR≤ ± (1% R + 0.05Ω)
Resistance to soldering heat
Groove welding method, the bath temperature: 350 ± 10 ℃ time: 3.5 ± 0.5s Immersion depth: 2 ± 0.5mm
ΔR≤ ± (1% R + 0.05Ω)
overload
Applying a 2.5 or 2 times the rated power load 5s
ΔR≤ ± (1% R + 0.05Ω)
Steady heat
Applying a DC voltage (limit voltage of the rated voltage or elements) Length 1min
ΔR≤ ± (5% R + 0.1Ω)
Upper category temperature durability
Resistor on the upper category temperature specified duration 1000h
ΔR≤ ± (5% R + 0.1Ω)

Reference standard

GB/T5728-2003 Fixed Resistors for Use in Electronic Equipment Part I: General Specifications
GB/T2828-2002 batch inspection technology sampling procedures and sampling tables
GB/T2691-1994 resistor capacitor marking method

Conditions of use

1, the cooling method: natural cooling
2, the use of temperature: -55 °C - +70 °C



How To Order



High Voltage X-Ray Equipment Medical Device Non-inductance Resistor



Related Products

High Voltage X-Ray Equipment Medical Device Non-inductance Resistor

P/N
Rated Power
Resistance
(Ohm)
P/N
Rated Power
Resistance
(Ohm)
AXRI80-2W-1MR-J
2W
1M
AXRI80-10W- 3GR-J
10W
3G
AXRI80-2W-2MR-J
2W
2M
AXRI80-10W- 5GR-J
10W
5G
AXRI80-2W- 3MR-J
2W
3M
AXRI80-10W- 10GR-J
10W
10G
AXRI80-5W- 1MR-J
5W
1M
AXRI80-10W- 20GR-J
10W
20G
AXRI80-5W- 2MR-J
5W
2M
AXRI80-10W- 30GR-J
10W
30G
AXRI80-5W- 3MR-J
5W
3M
AXRI80-10W- 50GR-J
10W
50G
AXRI80-5W- 5MR-J
5W
5M
AXRI80-10W- 100GR-J
10W
100G
AXRI80-5W- 10MR-J
5W
10M
AXRI80-10W- 2KR-J
10W
2K
AXRI80-5W- 20MR-J
5W
20M
AXRI80-10W- 10KR-J
10W
10K
AXRI80-5W- 25MR-J
5W
25M
AXRI80-10W- 11KR-J
10W
11K
AXRI80-5W- 30MR-J
5W
30M
AXRI80-10W- 20KR-J
10W
20K
AXRI80-5W- 50MR-J
5W
50M
AXRI80-10W- 50KR-J
10W
50K
AXRI80-5W- 100MR-J
5W
100M
AXRI80-10W- 100KR-J
10W
100K
AXRI80-5W- 200MR-J
5W
200M
AXRI80-10W- 150KR-J
10W
150K
AXRI80-5W- 300MR-J
5W
300M
AXRI80-10W- 300KR-J
10W
300K
AXRI80-5W- 500MR-J
5W
500M
AXRI80-10W- 200KR-J
10W
200K
AXRI80-5W- 2KR-J
5W
2K
AXRI80-10W- 500KR-J
10W
500K
AXRI80-5W- 5KR-J
5W
5K
AXRI80-20W- 10R-J
20W
10
AXRI80-5W- 10KR-J
5W
10K
AXRI80-20W- 1MR-J
20W
1M
AXRI80-5W- 20KR-J
5W
20K
AXRI80-20W- 5MR-J
20W
5M
AXRI80-5W-50 KR-J
5W
50K
AXRI80-20W- 10MR-J
20W
10M
AXRI80-5W- 100KR-J
5W
100K
AXRI80-20W- 50MR-J
20W
50M
AXRI80-5W- 150KR-J
5W
150K
AXRI80-20W- 100MR-J
20W
100M
AXRI80-5W- 200KR-J
5W
200K
AXRI80-20W- 10KR-J
20W
10K
AXRI80-5W- 300KR-J
5W
300K
AXRI80-20W- 50KR-J
20W
50K
AXRI80-5W- 500KR-J
5W
500K
AXRI80-20W- 100KR-J
20W
100K
AXRI80-5W- 1GR-J
5W
1G
AXRI80-20W- 500KR-J
20W
500K
AXRI80-5W- 2GR-J
5W
2G
AXRI80-50W- 200R-J
50W
200
AXRI80-5W- 3GR-J
5W
3G
AXRI80-50W- 1MR-J
50W
1M
AXRI80-5W- 5GR-J
5W
5G
AXRI80-50W- 2MR-J
50W
2M
AXRI80-5W- 10GR-J
5W
10G
AXRI80-50W- 5MR-J
50W
5M
AXRI80-5W- 20GR-J
5W
20G
AXRI80-50W- 10MR-J
50W
10M
AXRI80-5W- 30GR-J
5W
30G
AXRI80-50W- 100MR-J
50W
100M
AXRI80-5W- 50GR-J
5W
50G
AXRI80-50W- 1KR-J
50W
1K
AXRI80-5W- 100GR-J
5W
100G
AXRI80-50W- 100KR-J
50W
100K
AXRI80-10W- 10R-J
10W
10
AXRI80-50W- 200KR-J
50W
200K
AXRI80-10W- 1MR-J
10W
1M
AXRI80-70W- 50KR-J
70W
50K
AXRI80-10W- 2MR-J
10W
2M
AXRI80-100W- 1MR-J
100W
1M
AXRI80-10W- 3MR-J
10W
3M
AXRI80-100W- 2MR-J
100W
2M
AXRI80-10W- 5MR-J
10W
5M
AXRI80-100W- 5MR-J
100W
5M
AXRI80-10W- 10MR-J
10W
10M
AXRI80-100W- 10MR-J
100W
10M
AXRI80-10W- 20MR-J
10W
20M
AXRI80-100W- 100MR-J
100W
100M
AXRI80-10W-30 MR-J
10W
30M
AXRI80-130W- 1MR-J
130W
1M
AXRI80-10W-50 MR-J
10W
50M
AXRI80-250W- 6KR-J
250W
6K
AXRI80-10W- 100MR-J
10W
100M
AXRI80-250W- 10KR-J
250W
10K
AXRI80-10W- 150MR-J
10W
150M
AXRI80-250W- 27K2R-J
250W
27.2K
AXRI80-10W- 200MR-J
10W
200M
AXRI80-250W- 38KR-J
250W
38K
AXRI80-10W- 300MR-J
10W
300M
AXRI80-250W- 50KR-J
250W
50K
AXRI80-10W- 500MR-J
10W
500M
AXRI80-400W- 100KR-J
400W
100K
