AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power

I'm Online Chat Now

AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power

China AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power supplier
AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power supplier AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power supplier AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power supplier AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power supplier AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power supplier AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power supplier

Large Image :  AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power

Product Details:

Place of Origin: CN
Brand Name: AnXon
Certification: ISO, RoHs
Model Number: CT8G

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Foam + Carton
Delivery Time: 25-28 days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 10000/Month
Detailed Product Description
Name: Doorknob Ceramic Capacitor Voltage: 3.6~150kV
Capacitance: 10pF~20000pF Dielectric: NPO, N4700, Y5T, Y5S, Y5R, Y5U
Color: Red Tolerance: ±10%

Product Description

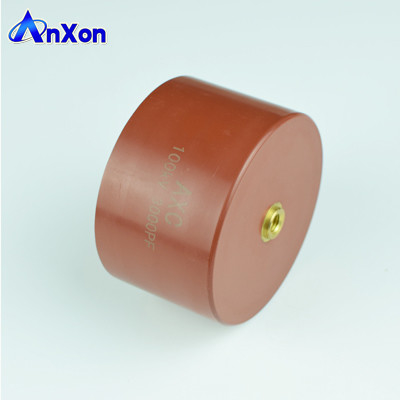

AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power



AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.



Rated Spec:
100KV 3000PF, 100KV 302
Tolerance:
K ±10%, J ±5% available on request
Type:
Molded / Doorknob / Screw Mounting
Ceramic Dielectric :
Y5T
Operating Temperature:
-35C ~ 85C
Size / Dimension(ΦD×T*F):
D:80mm, T:48mm, H:52mm, M8

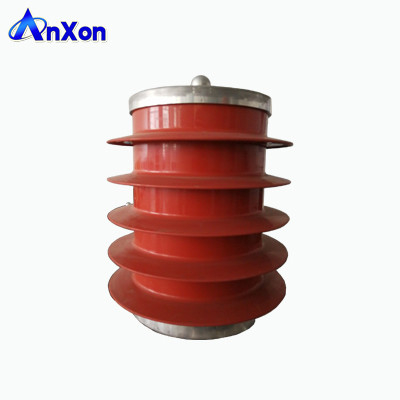

AnXon CT8G series Cylindrical ultra high voltage doorknob ceramic capacitor



The Cylindrical ultra high voltage ceramic capacitors of the AnXon CT8G series have been widely used in power transmission and distribution system power equipment and pulse energy processing equipment. AnXon high voltage ceramic capacitors have excellent charge and discharge performance, high withstand voltage, good frequency characteristics, can withstand high impulse voltage, ultra low partial discharge characteristics, and AC and DC applications for customers to choose.
Main voltage: 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV
• Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
• Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
• Impulse Voltage: 45KVdc-225KVdc
• Capacitance Range: 10pF - 100000pF
• Operating frequency: 20KHZ-1000KHZ
• Materials: K100, K150, K300, K650, K850, K1000, K1500, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V



AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power



Related Products



Part Number
Dielectric
Rated Spec
Remark
Dimensions(mm)
D
T
H
M
AXCT8GD102K100DB
Y5T
100KV 1000PF
DC 125KV BIL
55
54
58
5
AXCT8GD202K100DB
Y5T
100KV 2000PF
DC
70
52
56
5
AXCT8G100D302KDB
Y5T
100KV 3000PF
DC 125KV BIL
80
48
52
8

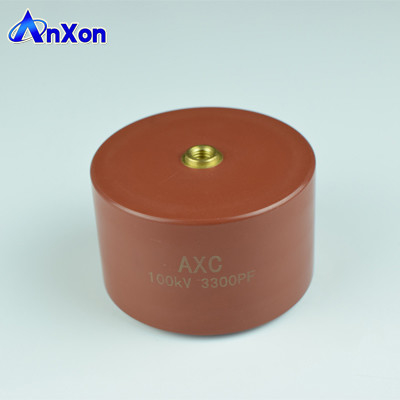

AXCT8GD332K100DB
Y5T
100KV 3300PF
DC 125KV BIL
80
48
52
8
AXCT8G100D402KDC
Y5T
100KV 4000PF
DC
80
52
56
5
AXCT8G150D203KDC

 Y5T

150KV 20000PF
DC
280
360
400
--



High voltage ceramic capacitors



High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage.Common types of class 1 ceramic materials are: NPO, C0G, UJ, SL, N4700, etc. The common types of class 2 ceramic materials are: Y5R, Y5P, Y5T, Y5S, Y5U, Y5V, etc.



AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power

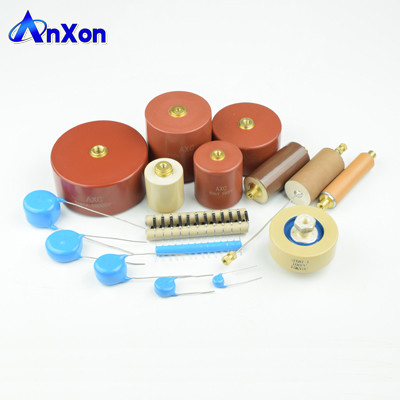

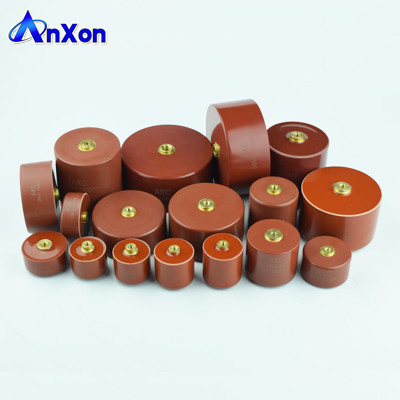

Product Type



AnXon offers a variety of conventional ultra high voltage ceramic capacitors, but also can customize a variety of special-shaped capacitors according to customer requirements



AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power



Product Applications



High voltage doorknob ceramic capacitor main applications



• High voltage supply for gas laser
• High-voltage dividers
• Marx generators, Power generators
• High voltage columns for collider of HV accelerator
• High-voltage coupling devices
• Power line coupling system for Internet & Telecom
• Lightning arresters, voltage distribution systems
• HV Power Supply for X-ray, excimer lasers



AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power



Quality Control



High voltage doorknob ceramic capacitor from AnXon are 100% tested of the below parameters



• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
• Partial discharge: as requested
• impulse voltage: sampling



AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power



Certifications



AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power



Our Company



Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia. In particular, high voltage screw terminal ceramic capacitors, high voltage lead type disc ceramic capacitors, high voltage MLCC, high frequency high power ceramic capacitors, high voltage ceramic capacitors stacks and multiplier assembly, high temperature ceramic capacitors are greatly trusted by the majority of domestic and foreign customers. AnXon Electronics looking forward to cooperate with you in the near future.



AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power
AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power
AnXon ready made CT8G100KVD222M 100KV 2200PF HV doorknob ceramic capacitor for pulse power
