China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor

I'm Online Chat Now

China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor

China China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor supplier
China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor supplier China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor supplier China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor supplier China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor supplier

Large Image :  China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor

Product Details:

Place of Origin: China
Brand Name: China
Certification: ISO, ROHS
Model Number: CKT

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: PE Foam and Carton for Vacuum capacitor
Payment Terms: T/T, Western Union, PayPal
Contact Now
Detailed Product Description
Product Name:: Fixed Vacuum Capacitor Rated Voltage:: 3.5kV~35kV
Capacitance:: 2pF~4000pF Operating Temp: -30°C ~125°C
Test Voltage:: 5kV~49kV Max RF Current:: 8A~400A
Application:: RF / Microwave Operating Freq: Up To 200Mhz



Product Description



China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor



Cixi AnXon Electronic Co., Ltd develops and manufactures high quality vacuum capacitors. These specialized products are used for precise control of plasma processes like thin-film deposition and etching for semiconductors, flat panel displays, solar panels and industrial coatings. With years of experience in designing vacuum capacitors, AnXon combines expertise and technology to meet your demand for high performance vacuum capacitors.



China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor



Model Capacitance

Peak TEST

Voltage

HF Peak

Working

Voltage

Max

RF Current

(13.56MHz)

Max. Weight Remark
(pF) (kV) (kV) (A) (Kg)
AXCT150/21/90 150 30 21 90 0.85 CKT-150-0030
AXCT200/21/95 200 30 21 95 0.88 CKT-200-0030
AXCT250/21/100 250 30 21 100 0.9 CKT-250-0030
AXCT120/21/90 120 30 21 90 0.8 CKT-120-0030
AXCT170/21/95 170 30 21 95 0.8 CKT-170-0030





Products Dimensions



China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor



Related Product



Original High Performance Vacuum Capacitors by AnXon



AnXon's capacitor product line offers the broadest selection of capacitance, power, voltage and drive systems in the market. They are produced with the best materials, fabrication processes and quality standards.

Fixed Capacitors
Fixed capacitors have a single, fixed capacitance value, which cannot be adjusted. They are designed for a wide variety of applications like broadcast and communication transmitters, antenna network systems, output filters, coupling capacitors, industrial RF generators and nuclear research.

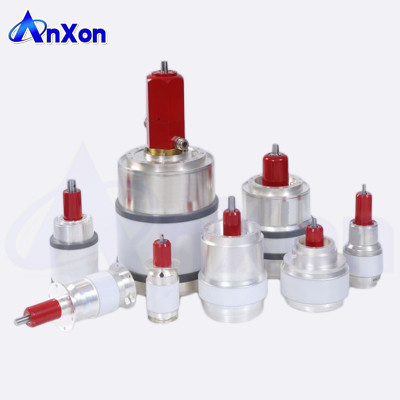

Variable Capacitors
Variable Capacitors are just that: capacitors that can be intentionally and repeatedly changed, both mechanically and electronically.



China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor



Product Application



AnXon High Performance Vacuum Capacitors Applications



AnXon offers you the benefit of more than 50 years of expertise in vacuum technology, producing the world’s finest non-thermionic vacuum components for high voltage and high frequency applications, including:
• Broadcast Radio Transmitters
• Semiconductor Manufacturing Equipment
• Plasma Generating Equipment
• Industrial Dielectric Heating Equipment
• Power Switching and Interrupting
• Avionic and Mobile Radio Systems
• Radar Antenna Switching
• MRI and NMR
• High Voltage Capacitor Banks



China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor



Certifications



China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor



Our Company



Cixi AnXon Electronic Co., Ltd, A China based manufacturing company, specialized manufacturer and supplier of High Performance Vacuum Capacitors, products have convinced as good replacements of Jennings vacuum capacitors & Comet vacuum capacitors



China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor
China made CKT250/21/100 21KV 30KV 250PF 100A CKT-250-0030 High Performance Fixed Vacuum Capacitor
