Product Details:
Payment & Shipping Terms:
|
| Plate Dissipation: | 15kW | Maximum Operation Frequency: | 120MHz |
|---|---|---|---|
| Cooling: | Forced Air |

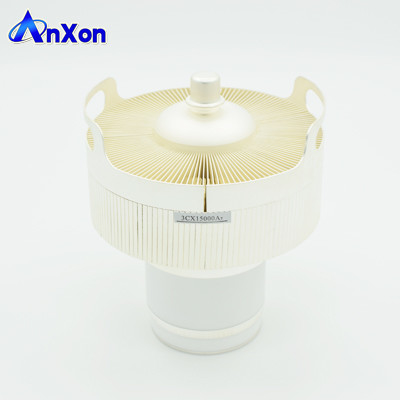

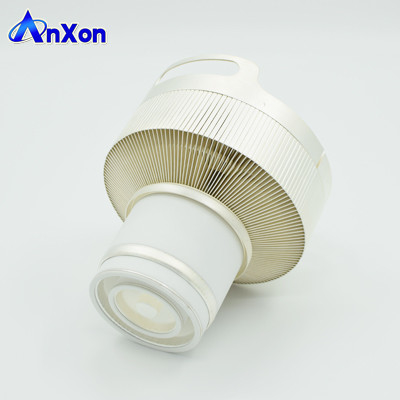

China made 3CX15,000A7 is a cermet structure, a tantalum carbide tungsten cathode, and a high-magnification coefficient forced air-cooled triode. The maximum anode dissipation power is 15kW, the maximum power dissipation of the grid is 500w, and the maximum operating frequency is 110MHz. It is mainly used for zero-bias Class B RF amplifiers or Class C power amplifiers and oscillators. It can also be used as a grounded gate frequency modulation amplifier.
| Filament Voltage | 6.3V |
| Filament Current | 160A |
| Plate Dissipation | 15KW |
| Maximum operating frequency | 110Mhz |
| Cooling | Forced air |
The electron tube is a device that controls electric current flow in a high vacuum between electrodes to which an electric potential difference has been applied. The type known as a thermionic tube or thermionic valve uses the phenomenon of thermionic emission of electrons from a heated cathode and is used for a number of fundamental electronic functions such as signal amplification and current rectification.
|
4CX250B/7203
|
3CX1000A7
|
4CPW1000KA/9009
|
4CX20.000B
|
3CW2500C7/YU-157
|
ML-6425F
|
|
4CX250B/M - 7203A
|
3CX1200A7
|
4CPW1000KB
|
4CX3000A
|
3CW30,000A7
|
ML-6426
|
|
4CX250BC/8957
|
3CX1200D7/YU-121
|
4CPW100KA/Y-841
|
4CX35,000C
|
3CW30,000H7
|
ML-6426K
|
|
4CX250FG/8621
|
3CX1200Z7/YU-181
|
4CPW300,000A/9008
|
3CX2500H3
|
3CW40,000A5
|
ML-6427
|
|
4CX250R/7680W
|
3CX15,000A7
|
4CW30,000B
|
3CX4500F3/YU-108
|
3CW40,000A7
|
ML-7480A
|
|
4CX3000A/8169
|
3CX1500A7/8877
|
4CX5,000R/8170W
|
3CX5000A3
|
3CW5000A7
|
ML-7482
|
|
4CX300A/8167
|
3CX20,000A7
|
5CX1500B
|
3CX5000H3
|
3CW5000H7
|
ML-7560
|

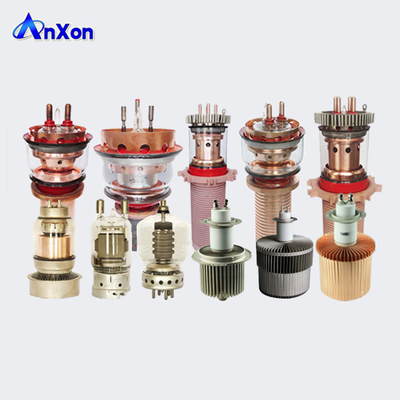

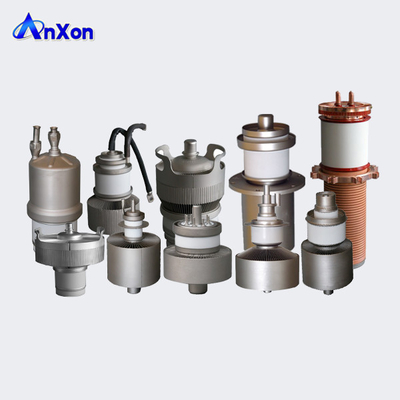

The electron vacuum power tubes are mainly used for broadcast, communications, radar, industrial heating, semiconductor processing, science and medical applications as below
• Induction and dielectric heating
• Steel pipe production
• X-ray spectroscopy
• Television transmission• High Frequency Cylinder Welding
• High-frequency heating
• Vacuum tube amplifier
• Radar scanning
• Radio communications
• Plastic & textile Processing
• Linear accelerator
• RF radio broadcasting
• MRI medical systems
• Semiconductor processing
