Product Details:
Payment & Shipping Terms:
|

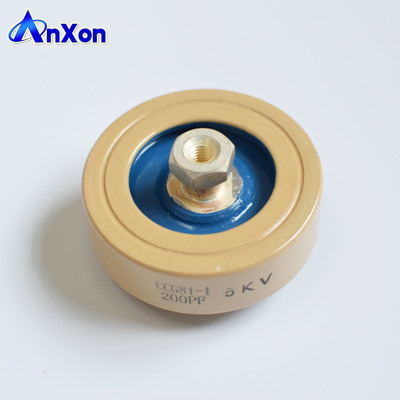

| Product Name: | RF Power Plate Capacitor | Application: | RF / Microwave |
|---|---|---|---|
| Capacitance: | 200PF | Rated Voltage: | 5kV |
| Dielectric: | R85, N750 | Operating Temp: | Erature: -30°C ~ 85°C |
| Dissipation Factor: | Max. 0.08% (1kHz 1V) | Temperature Characteristics: | -750PPM/°C |

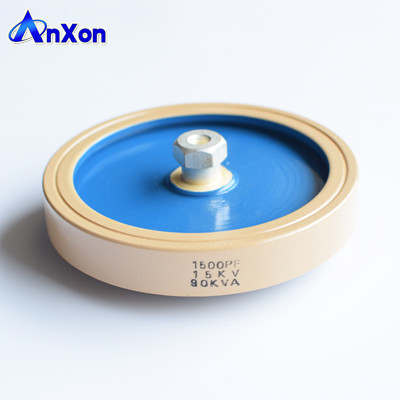

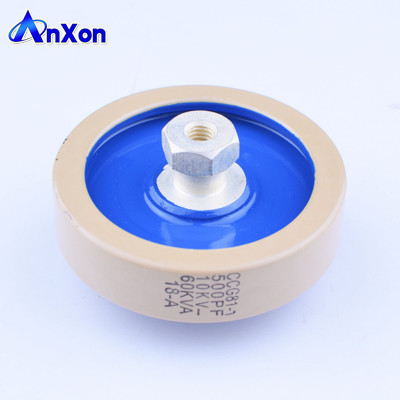

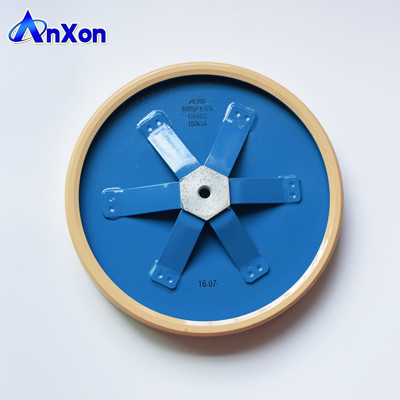

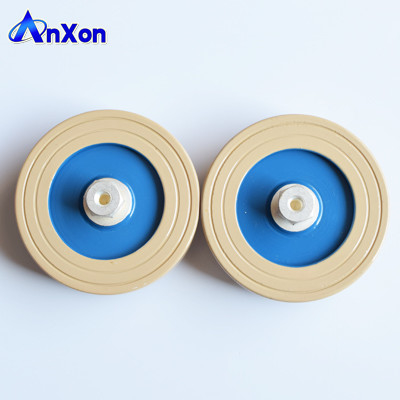

Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. AnXon specializes in the development and production of dielectric and ferroelectric materials and components. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.
| P/N | Rated Spec | Max Current | Size(mm) | ||
| (A) | D | H | d | ||
|
CCG81-0 |
5KV 100PF 30KVA | 15 | 35 | 21 | M6 |
| 5KV 150PF 30KVA | 35 | ||||
| 5KV 200PF 30KVA | 40 | ||||
| 5KV 300PF 30KVA | 45 | ||||
| 5KV 330PF 40KVA | 48 | ||||
|
CCG81-0 |
8KV 300PF 40KVA | 15 | 46 | 21 | M6 |
| 8KV 330PF 40KVA | 50 | ||||
| 8KV 350PF 40KVA | 51 | ||||
| CCG81-3 | 8KV 1000PF 75KVA | 30 | 82 | 33 | M6 |
| CCG140 / DT140 | 8KV 2000PF 90KVA | 30 | 140 | 52 | M8 |
These capacitors are used in oscillators, coupling circuits or bypass capacitors in industrial or medical high frequency equipment. They are suitable to use as coupling capacitors for transmission line and carrier frequency equipment. X-ray equipment, broadcast equipment, induction heating power supplies (tube and solid state), cable fault finders, plasma generators, RF power supplies, dielectric heating, lasers and more.
Low loss Class 1 ceramic dielectric materials
Noble metal electrodes with low self heating
Very low capacitance-temperature characteristics available
Correspondingly low tuned frequency drift.
Low Inductance construction, higher frequency use
High voltage, High Reactive Power Ratings
Low magnetic susceptibility
Radio broadcast transmitters
HF filter, By-Pass & Coupling Circuits
High power matching tuned circuits, Antenna circuits
High power matching networks, Plasma Generators
High quality medical imaging systems (MRI)
Induction and Dielectric Heating Equipment
Industrial Applications
• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.

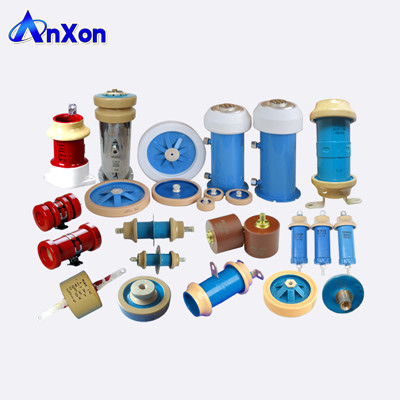

Cixi AnXon Electronic Co., Ltd, A China based manufacturing company, specialized manufacturer and supplier of high voltage ceramic capacitors, doorknob capacitors, pulse power capacitors, RF power capacitors, AC live line capacitors, high Q capacitors, high temperature capacitors.
