AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier

I'm Online Chat Now

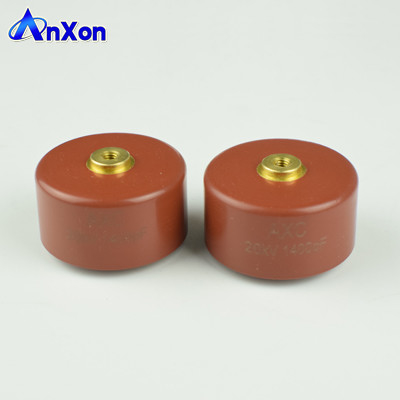

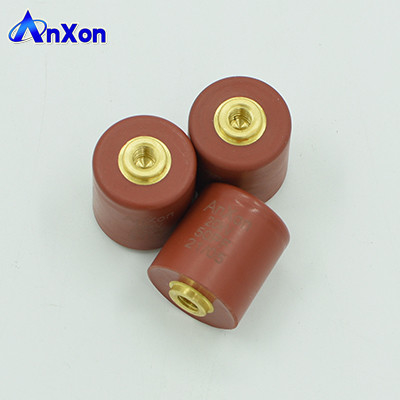

AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier

China AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier supplier
AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier supplier AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier supplier AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier supplier

Large Image :  AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier

Product Details:

Place of Origin: CN
Brand Name: AnXon
Certification: ISO, RoHs
Model Number: CT8G

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Foam + Carton
Delivery Time: 25-28 days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 10000/Month
Detailed Product Description
Name: Doorknob Ceramic Capacitor Voltage: 10KV
Capacitance: 11000PF Dielectric: N4700
Color: Red Tolerance: ±10%

AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier



High Voltage Ceramic Capacitor, Molded type Ultra-high Voltage Ceramic Capacitors offered by AnXon Electronic, high quality ceramic capacitor supplier



Rated Spec: 10KV 11000PF, 10KV 113
Tolerance: K ±10%, J ±5% available on request
Type: Molded / Doorknob / Screw Mounting
Ceramic Dielectric : N4700
Operating Temperature: -35°C ~ 85°C
Size / Dimension(ΦD×T*F): D: 86mm, T: 18mm, H:22mm, M5



Product features


AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier



High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage. voltage from 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV, etc. Used for various AC and DC high voltage circuit applications.



Common types of class 1 ceramic materials are: NPO, C0G, UJ, SL, N4700, etc. The temperature coefficient of these type is quite good. There is a linear relationship of temperature and capacitance. Frequency characteristics and voltage characteristics are also very good, but because the dielectric constant is small, it not suitable to make large capacitance capacitors.



The common types of class 2 ceramic materials are: Y5R, Y5P, Y5T, Y5S, Y5U, Y5V, etc. The temperature coefficient of these ceramic material is non-linear, and the capacity can be quite large, However, the frequency and temperature are not constant.



AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.



AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier



The Cylindrical ultra high voltage ceramic capacitors of the AnXon CT8G series have been widely used in power transmission and distribution system power equipment and pulse energy processing equipment such as: power compensation, current limiting, filtering, metering, energy storage and distribution. The particularity of the power system: AC high voltage, high frequency, in the outdoor environment (-40°C to +60°C), lightning strike, high current, etc. In harsh environments, the capacitor is required to have super stability, ie The rate of change is small; at the same time, the measurement, the voltage, etc., require high precision, which places extremely severe demands on the partial discharge of high voltage ceramic capacitors under such circumstances. AnXon high voltage ceramic capacitors have excellent charge and discharge performance, high withstand voltage, good frequency characteristics, can withstand high impulse voltage, ultra low partial discharge characteristics, and AC and DC applications for customers to choose.



High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:



• Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc

• Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc

• Impulse Voltage: 45KVdc-225KVdc

• Capacitance Range: 10pF - 100000pF

• Operating frequency: 20KHZ-1000KHZ

• Materials: K100, K150, K300, K650, K850, K1000, K1500, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V



High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer.



More related specifications



Part Number Rated
Voltage
Un
(KVDC)
Rated
Capacitance
Cn
(PF)
Ceramic (mm)
Dielectric
Dimensions(mm) Ceramic
Dielectric
Code
D T H M
AXCT8GC40421KYD1B 10 420 DL 38 15 19 4 C4
AXCT8GE40561KYD1B 10 560 N4700 24 14 18 4 E4
AXCT8GE40701KYD1B 10 700 N4700 30 15 19 4 E4
AXCT8GC80102KYD1B 10 1000 DL 40 14 18 4 C8
AXCT8GD30102KYD1B 10 1000 Y5T 30 16 20 4 D3
AXCT8GE40122KYD1B 10 1200 N4700 38 16 20 4 E4
AXCT8GE40152KYD1B 10 1500 N4700 38 17 21 4 E4
AXCT8GE40282KYD1B 10 2800 N4700 40 15 19 4 E4
AXCT8GC80302KYD1B 10 3000 DL 60 14 18 5 C8
AXCT8GD30302KYD1B 10 3000 Y5T 40 18 22 4 D3
AXCT8GD50332KYD1B 10 3300 Y5T 38 18 22 4 D5
AXCT8GE40402KYD1B 10 4000 N4700 60 20 24 5 E4
AXCT8GE40502KYD1B 10 5000 N4700 60 18 24 5 E4
AXCT8GD50852KYD1B 10 8500 Y5T 60 18 22 4 D5
AXCT8GE40103KYD1B 10 10000 N4700 80 17 21 5 E4
AXCT8GP30103KYD1B 10 10000 Y5P 80 22 26 5 P3
AXCT8GD50103KYD1B 10 10000 Y5T 60 16 20 4 D5
AXCT8GE40113KYD1B 10 11000 N4700 86 18 22 5 E4
AXCT8GE40123KYD1B 10 12000 N4700 86 18 22 5 E4
AXCT8GD50153KYD1B 10 15000 Y5T 80 20 24 5 D5
AXCT8GD50203KYD1B 10 20000 Y5T 86 20 24 5 D5


Product types



AnXon offers a variety of conventional ultra high voltage ceramic capacitors, but also can customize a variety of special-shaped capacitors according to customer requirements



AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier



Quick Select guide of mainly used ceramic dielectric



Dielectric class SL N4700 Y5T Y5S
Operating temperature range (ºC) -30/+85°C -30/+85°C -30/+85°C -30/+85°C
Capacitance change with temperature (%) +/-650PPM/°C +22/-33% +22/-33% +22/-22%
Typical dielectric constant 150~1000 1850~2150 2500~6500 3500~4500
Dielectric strength (kVDC/mm) 8.0 8.0 6.0 6.0
Dissipation factor (1kHz/1VRMS/20ºC) 0.06% 0.10% 0.20% 0.20%
Insulation resistance (1000VD/20ºC/60s) >1000GΩ >100GΩ >100GΩ >100GΩ
Rated voltage (UR) 10 to 150kVdc 10 to 150kVdc 10 to 150kVdc 10 to 150kVdc
Test voltage (UTT) (50Hz, in oil, 60s) 12 to 100kVrms 12 to 100kVrms 12 to 100kVrms 12 to 100kVrms
Impulse voltage(UI) 35 to 200kVdc 35 to 200kVdc 35 to 200kVdc 35 to 200kVdc
Capacitance range (20ºC – 1kHz – 1VRMS) 10pF to 500pF 10pF to 5600pF 10pF to 0.02uF 10pF to 0.02uF
Tolerance Standard: ±10% Standard: ±10% Standard: ±10% Standard: ±10%



Product applications



1. Used for high power pulse power supply, particle accelerator, electromagnetic microwave equipment, laser photoelectric equipment, electronic information equipment, radar detection, non-destructive testing X_RAY / CT machinery, material detection, electrostatic precipitator electric field, various types of special pulse power supply.

2. Supply of electricity, acceptance of interrupters of electrical equipment, zero-phase detection, breakers, surge arresters, voltage divider elements of high-voltage measurement equipment, and other circuits that use AC high voltage.

3. High voltage power supply circuit for laser equipment, directional energy/high-energy laser source.

4. High voltage power circuits or other DC high-voltage power circuits for various measurement devices.

5. Power storage, voltage divider and protection circuit.



High voltage doorknob ceramic capacitor applications



• Gas lasers

• High-voltage dividers

• Marx generators, Power generators

• High-voltage power supply, DC HV power supplies

• High-voltage coupling devices

• Power line coupling system for Internet & Telecom

• Lightning arresters, voltage distribution systems

• Electron microscopes, synchroscopes

• Electrostatic coating machines



High voltage doorknob ceramic capacitor Features



• Excellent behavior on pulse and fast discharge conditions

• Low dissipation factor

• Very low partial discharge

• Excellent voltage characteristic

• Molded type, Screw or Axial Leads available

• Coated and uncoated devices available



Quality control



High voltage doorknob ceramic capacitor from AnXon are 100% tested of the below parameters

• Capacitance

• Tolerance

• Dielectric withstanding voltage

• Dissipation Factor

• Insulation Resistance

• Partial discharge: as requested

• impulse voltage: sampling

Rigorous design standards, sophisticated production equipment, advanced production technology, and rigorous testing procedures are the quality assurance of AnXon ultra high voltage ceramic capacitors, and it is also the core of our continuous development and growth. Process and inspection data are maintained on file and available upon special request.



AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier



Company advantage



Since its establishment, Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia. In particular, high voltage screw terminal ceramic capacitors, high voltage lead type disc ceramic capacitors, high voltage MLCC, high frequency high power ceramic capacitors, high voltage ceramic capacitors stacks and multiplier assembly, high temperature ceramic capacitors are greatly trusted by the majority of domestic and foreign customers. AnXon Electronics looking forward to cooperate with you in the near future.



AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier

AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier

AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier

AXCT8GE40113KYD1B 10KV 11000PF N4700 High Voltage Ceramic Capacitor China Supplier



FAQ
What are the Advantages of a High Voltage Doorknob Ceramic Capacitor?



In high voltage ceramic capacitors application field, requiring a small, high voltage and high frequency characteristics. With the progress of materials, electrodes and manufacturing technology, great progress has been made in the development of high voltage ceramic capacitors, and has been widely used. High voltage ceramic capacitors have become an indispensable component of high power high voltage electronic products.

  • Name: doorknob shape high voltage ceramic capacitor
  • Appearance of small size
  • Relative to other material more portable and reliable
  • Rapid pulse charge and discharge performance
  • Capacity with low temperature gradient
  • Under high or low temperature applications
  • Different shapes can be customized

Widely used in high power pulse power, particle accelerators, electromagnetic microwave equipment, laser photoelectric equipment, electronic equipment, radar detection, nondestructive testing, material, electrostatic dust removal electric field, all kinds of special pulse power supply, ect
