30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply

China 30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply supplier
30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply supplier 30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply supplier 30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply supplier 30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply supplier

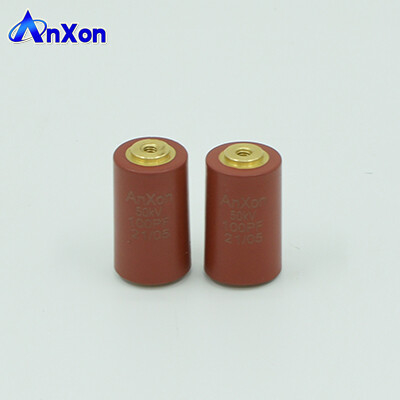

Large Image :  30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply

Product Details:

Place of Origin: CN
Brand Name: AnXon
Certification: ISO, RoHs
Model Number: CT8G

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Foam + Carton
Delivery Time: 25-28 days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 10000/Month
Detailed Product Description
Name: Doorknob Ceramic Capacitor Voltage: 30KV
Capacitance: 900PF Dielectric: N4700
Color: Red Tolerance: ±10%

30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply​



High Voltage Ceramic Capacitor, Molded type Ultra-high Voltage Ceramic Capacitors offered by AnXon Electronic, high quality ceramic capacitor supplier



Rated Spec: 30KV 900PF, 30KV 901
Tolerance: K ±10%, J ±5% available on request
Type: Molded / Doorknob / Screw Mounting
Ceramic Dielectric :        N4700
Operating Temperature: -35°C ~ 85°C
Size / Dimension(ΦD×T*F):

D:38mm, T:24mm, H:28mm, M4



Product features


30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply



High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage. voltage from 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV, etc. Used for various AC and DC high voltage circuit applications.



Common types of class 1 ceramic materials are: NPO, C0G, UJ, SL, N4700, etc. The temperature coefficient of these type is quite good. There is a linear relationship of temperature and capacitance. Frequency characteristics and voltage characteristics are also very good, but because the dielectric constant is small, it not suitable to make large capacitance capacitors.



The common types of class 2 ceramic materials are: Y5R, Y5P, Y5T, Y5S, Y5U, Y5V, etc. The temperature coefficient of these ceramic material is non-linear, and the capacity can be quite large, However, the frequency and temperature are not constant.



AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.



30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply



The Cylindrical ultra high voltage ceramic capacitors of the AnXon CT8G series have been widely used in power transmission and distribution system power equipment and pulse energy processing equipment such as: power compensation, current limiting, filtering, metering, energy storage and distribution. The particularity of the power system: AC high voltage, high frequency, in the outdoor environment (-40°C to +60°C), lightning strike, high current, etc. In harsh environments, the capacitor is required to have super stability, ie The rate of change is small; at the same time, the measurement, the voltage, etc., require high precision, which places extremely severe demands on the partial discharge of high voltage ceramic capacitors under such circumstances. AnXon high voltage ceramic capacitors have excellent charge and discharge performance, high withstand voltage, good frequency characteristics, can withstand high impulse voltage, ultra low partial discharge characteristics, and AC and DC applications for customers to choose.



High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:



• Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc

• Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc

• Impulse Voltage: 45KVdc-225KVdc

• Capacitance Range: 10pF - 100000pF

• Operating frequency: 20KHZ-1000KHZ

• Materials: K100, K150, K300, K650, K850, K1000, K1500, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V



High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer.



More related specifications



Part Number Rated
Voltage
Un
(KVDC)
Rated
Capacitance
Cn
(PF)
Ceramic (mm)
Dielectric
Dimensions(mm) Ceramic
Dielectric
Code
D T H M
AXCT8GN10100K3D1B 30

10

NPO 24 20 24 4 N1
AXCT8GG30100K3D1B 30 10 SL 20 33 37 4 G3
AXCT8GG30200K3D1B 30 20 SL 24 30 34 4 G3
AXCT8GG30250K3D1B 30 25 SL 24 26 30 4 G3
AXCT8GC40500K3D1B 30 50 DL 30 26 30 4 C4
AXCT8GC80101K3D1B 30 100 DL 30 26 30 4 C8
AXCT8GD30131K3D1B 30 130 Y5T 20 30 34 4 D3
AXCT8GC80151K3D1B 30 150 DL 30 26 30 5 C8
AXCT8GP10151K3D1B 30 150 Y5P 24 24 28 4 P1
AXCT8GE40191K3D1B 30 190 N4700 24 24 28 4 E4
AXCT8GE40201K3D1B 30 200 N4700 24 26 30 4 E4
AXCT8GC80331K3D1B 30 330 DL 38 24 28 4 C8
AXCT8GD30461K3D1B 30 460 Y5T 30 26 30 4 D3
AXCT8GE40471K3D1B 30 470 N4700 30 26 30 4 E4
AXCT8GE40501K3D1B 30 500 N4700 38 24 28 4 E4
AXCT8GD30501K3D1B 30 500 Y5T 30 28 32 4 D3
AXCT8GD30561K3D1B 30 560 Y5T 30 24 28 4 D3
AXCT8GE40591K3D1B 30 590 N4700 30 24 28 4 E4
AXCT8GS40591K3D1B 30 590 Y5S 30 26 30 4 S4
AXCT8GE40701K3D1B 30 700 N4700 38 22 26 4 E4
AXCT8GE40901K3D1B 30 900 N4700 38 24 28 4 E4
AXCT8GE40941K3D1B 30 940 N4700 40 24 28 4 E4
AXCT8GD30941K3D1B 30 940 Y5T 34 26 30 4 D3
AXCT8GE40102K3D1B 30 1000 N4700 48 26 30 4 E4
AXCT8GD30102K3D1B 30 1000 Y5T 38 22 26 4 D3
AXCT8GE40112K3D1B 30 1100 N4700 48 24 28 4 E4
AXCT8GE40122K3D1B 30 1200 N4700 48 28 28 4 E4
AXCT8GD30122K3D1B 30 1200 Y5T 38 26 30 4 D3
AXCT8GE40152K3D1B 30 1500 N4700 52 26 30 4 E4
AXCT8GB30152K3D1B 30 1500 BN 40 26 30 4 B3
AXCT8GE40172K3D1B 30 1700 N4700 52 24 28 4 E4
AXCT8GD30172K3D1B 30 1700 Y5T 48 26 30 4 D3
AXCT8GD30182K3D1B 30 1800 Y5T 48 24 28 4 D3
AXCT8GE40202K3D1B 30 2000 N4700 60 28 32 4 E4
AXCT8GE40222K3D1B 30 2200 N4700 60 26 30 4 E4
AXCT8GD30222K3D1B 30 2200 Y5T 48 24 28 4 D3
AXCT8GE40252K3D1B 30 2500 N4700 60 24 28 4 E4
AXCT8GD30252K3D1B 30 2500 Y5T 52 26 30 4 D3
AXCT8GE40272K3D1B 30 2700 N4700 60 24 28 4 E4
AXCT8GD30272K3D1B 30 2700 Y5T 52 24 28 4 D3
AXCT8GE40302K3D1B 30 3000 N4700 70 28 32 5 E4
AXCT8GD50302K3D1B 30 3000 Y5T 48 25 29 4 D5
AXCT8GE40332K3D1B 30 3300 N4700 70 26 30 5 E4
AXCT8GE40352K3D1B 30 3500 N4700 70 26 30 5 E4
AXCT8GS40352K3D1B 30 3500 Y5S 60 26 30 5 S4
AXCT8GE40362K3D1B 30 3600 N4700 70 28 32 5 E4
AXCT8GD30362K3D1B 30 3600 Y5T 60 28 32 4 D3
AXCT8GE40452K3D1B 30 4500 N4700 80 24 28 5 E4
AXCT8GD30472K3D1B 30 4700 Y5T 70 28 32 5 D3
AXCT8GD30532K3D1B 30 5300 Y5T 70 28 32 5 D3
AXCT8GD50103K3D1B 30 10000 Y5T 80 26 30 5 D5


Product types



AnXon offers a variety of conventional ultra high voltage ceramic capacitors, but also can customize a variety of special-shaped capacitors according to customer requirements



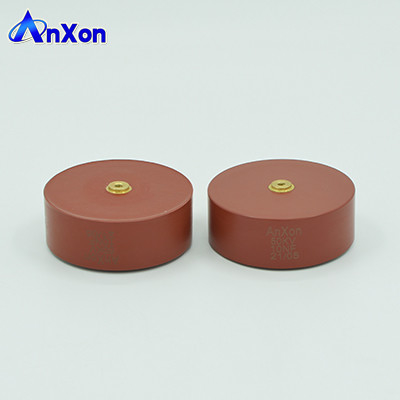

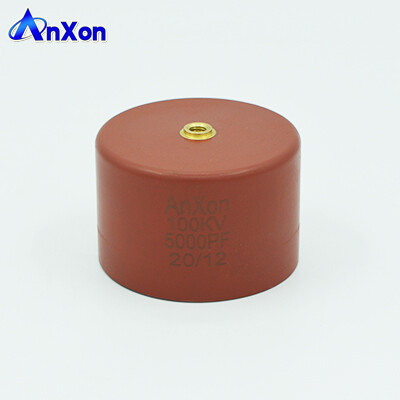

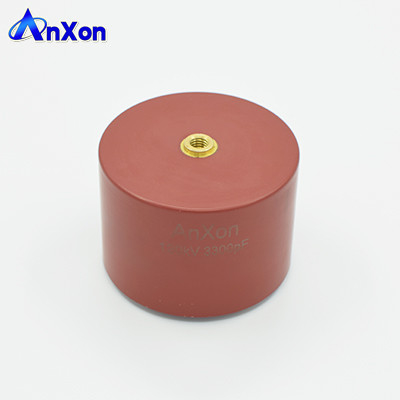

30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply



Quick Select guide of mainly used ceramic dielectric



Dielectric class SL N4700 Y5T Y5S
Operating temperature range (ºC) -30/+85°C -30/+85°C -30/+85°C -30/+85°C
Capacitance change with temperature (%) +/-650PPM/°C +22/-33% +22/-33% +22/-22%
Typical dielectric constant 150~1000 1850~2150 2500~6500 3500~4500
Dielectric strength (kVDC/mm) 8.0 8.0 6.0 6.0
Dissipation factor (1kHz/1VRMS/20ºC) 0.06% 0.10% 0.20% 0.20%
Insulation resistance (1000VD/20ºC/60s) >1000GΩ >100GΩ >100GΩ >100GΩ
Rated voltage (UR) 10 to 150kVdc 10 to 150kVdc 10 to 150kVdc 10 to 150kVdc
Test voltage (UTT) (50Hz, in oil, 60s) 12 to 100kVrms 12 to 100kVrms 12 to 100kVrms 12 to 100kVrms
Impulse voltage(UI) 35 to 200kVdc 35 to 200kVdc 35 to 200kVdc 35 to 200kVdc
Capacitance range (20ºC – 1kHz – 1VRMS) 10pF to 500pF 10pF to 5600pF 10pF to 0.02uF 10pF to 0.02uF
Tolerance Standard: ±10% Standard: ±10% Standard: ±10% Standard: ±10%



Product applications



1. Used for high power pulse power supply, particle accelerator, electromagnetic microwave equipment, laser photoelectric equipment, electronic information equipment, radar detection, non-destructive testing X_RAY / CT machinery, material detection, electrostatic precipitator electric field, various types of special pulse power supply.

2. Supply of electricity, acceptance of interrupters of electrical equipment, zero-phase detection, breakers, surge arresters, voltage divider elements of high-voltage measurement equipment, and other circuits that use AC high voltage.

3. High voltage power supply circuit for laser equipment, directional energy/high-energy laser source.

4. High voltage power circuits or other DC high-voltage power circuits for various measurement devices.

5. Power storage, voltage divider and protection circuit.



High voltage doorknob ceramic capacitor applications



• Gas lasers

• High-voltage dividers

• Marx generators, Power generators

• High-voltage power supply, DC HV power supplies

• High-voltage coupling devices

• Power line coupling system for Internet & Telecom

• Lightning arresters, voltage distribution systems

• Electron microscopes, synchroscopes

• Electrostatic coating machines



High voltage doorknob ceramic capacitor Features



• Excellent behavior on pulse and fast discharge conditions

• Low dissipation factor

• Very low partial discharge

• Excellent voltage characteristic

• Molded type, Screw or Axial Leads available

• Coated and uncoated devices available



Quality control



High voltage doorknob ceramic capacitor from AnXon are 100% tested of the below parameters

• Capacitance

• Tolerance

• Dielectric withstanding voltage

• Dissipation Factor

• Insulation Resistance

• Partial discharge: as requested

• impulse voltage: sampling

Rigorous design standards, sophisticated production equipment, advanced production technology, and rigorous testing procedures are the quality assurance of AnXon ultra high voltage ceramic capacitors, and it is also the core of our continuous development and growth. Process and inspection data are maintained on file and available upon special request.



30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply



Company advantage



Since its establishment, Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia. In particular, high voltage screw terminal ceramic capacitors, high voltage lead type disc ceramic capacitors, high voltage MLCC, high frequency high power ceramic capacitors, high voltage ceramic capacitors stacks and multiplier assembly, high temperature ceramic capacitors are greatly trusted by the majority of domestic and foreign customers. AnXon Electronics looking forward to cooperate with you in the near future.



30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply

30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply

30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply

30KV 900PF N4700 AXCT8GE40901K3D1B Ultra Hv Capacitor For Gas Lasers Power Supply



FAQ
What are the Advantages of a High Voltage Doorknob Ceramic Capacitor?



In high voltage ceramic capacitors application field, requiring a small, high voltage and high frequency characteristics. With the progress of materials, electrodes and manufacturing technology, great progress has been made in the development of high voltage ceramic capacitors, and has been widely used. High voltage ceramic capacitors have become an indispensable component of high power high voltage electronic products.

  • Name: doorknob shape high voltage ceramic capacitor
  • Appearance of small size
  • Relative to other material more portable and reliable
  • Rapid pulse charge and discharge performance
  • Capacity with low temperature gradient
  • Under high or low temperature applications
  • Different shapes can be customized

Widely used in high power pulse power, particle accelerators, electromagnetic microwave equipment, laser photoelectric equipment, electronic equipment, radar detection, nondestructive testing, material, electrostatic dust removal electric field, all kinds of special pulse power supply, ect
