CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B

I'm Online Chat Now

CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B

China CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B supplier
CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B supplier CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B supplier CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B supplier CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B supplier CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B supplier

Large Image :  CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B

Product Details:

Place of Origin: CN
Brand Name: AnXon
Certification: ISO, RoHs
Model Number: CT8G

Payment & Shipping Terms:

Minimum Order Quantity: 5

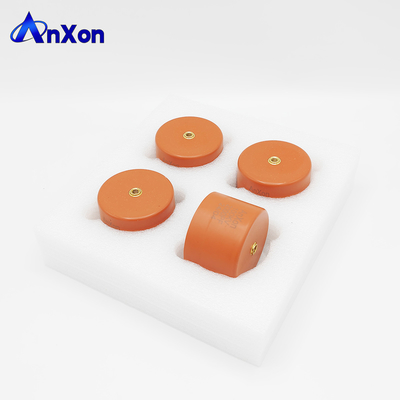

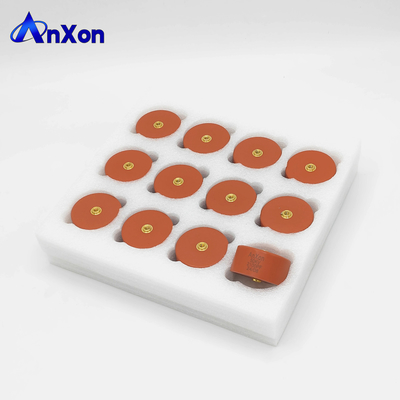

Packaging Details: Foam + Carton
Delivery Time: 25-28 days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 10000/Month
Detailed Product Description
Name: Doorknob Ceramic Capacitor Voltage: 50KV
Capacitance: 10000PF Dielectric: Y5T
Color: Red Tolerance: ±10%

CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B


High Voltage Ceramic Capacitor, Molded type Ultra-high Voltage Ceramic Capacitors offered by AnXon Electronic, high quality ceramic capacitor supplier



Rated Spec: 50KV 10000PF, 50KV 103
Tolerance: K ±10%, J ±5% available on request
Type: Molded / Doorknob / Screw Mounting
Ceramic Dielectric :        Y5T
Operating Temperature: -35°C ~ 85°C
Size / Dimension(ΦD×T*F):

D:86mm, T:31mm, H:35mm, M5



Product features


CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B



High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage. voltage from 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV, etc. Used for various AC and DC high voltage circuit applications.



Common types of class 1 ceramic materials are: NPO, C0G, UJ, SL, N4700, etc. The temperature coefficient of these type is quite good. There is a linear relationship of temperature and capacitance. Frequency characteristics and voltage characteristics are also very good, but because the dielectric constant is small, it not suitable to make large capacitance capacitors.



The common types of class 2 ceramic materials are: Y5R, Y5P, Y5T, Y5S, Y5U, Y5V, etc. The temperature coefficient of these ceramic material is non-linear, and the capacity can be quite large, However, the frequency and temperature are not constant.



AnXon high voltage ceramic capacitors can be customized according to special requirements, take internal parallel or series design to achieve high voltage, large capacity, high operating frequency, high withstand impulse voltage, ultra low partial discharge requirements and other requirements can meet the different needs of customers.



CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B



The Cylindrical ultra high voltage ceramic capacitors of the AnXon CT8G series have been widely used in power transmission and distribution system power equipment and pulse energy processing equipment such as: power compensation, current limiting, filtering, metering, energy storage and distribution. The particularity of the power system: AC high voltage, high frequency, in the outdoor environment (-40°C to +60°C), lightning strike, high current, etc. In harsh environments, the capacitor is required to have super stability, ie The rate of change is small; at the same time, the measurement, the voltage, etc., require high precision, which places extremely severe demands on the partial discharge of high voltage ceramic capacitors under such circumstances. AnXon high voltage ceramic capacitors have excellent charge and discharge performance, high withstand voltage, good frequency characteristics, can withstand high impulse voltage, ultra low partial discharge characteristics, and AC and DC applications for customers to choose.



High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:



• Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc

• Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc

• Impulse Voltage: 45KVdc-225KVdc

• Capacitance Range: 10pF - 100000pF

• Operating frequency: 20KHZ-1000KHZ

• Materials: K100, K150, K300, K650, K850, K1000, K1500, N4700, Y5R, Y5S, Y5T, Y5P, Y5U, Y5V



High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer.



More related specifications



Part Number Rated
Voltage
Un
(KVDC)
Rated
Capacitance
Cn
(PF)
Ceramic (mm)
Dielectric
Dimensions(mm) Ceramic
Dielectric
Code
D T H M
AXCT8GC40120K5D1B 50 12 DL 20 38 42 4 C4
AXCT8GN10180K5D1B 50 18 NPO 38 34 38 4 N1
AXCT8GN10200K5D1B 50 20 NPO 38 32 36 4 N1
AXCT8GC40200K5D1B 50 20 DL 20 36 40 4 C4
AXCT8GC40250K5D1B 50 25 DL 24 36 40 4 C4
AXCT8GD20900K5D1B 50 90 Y5T 20 36 40 4 D2
AXCT8GE40101K5D1B 50 100 N4700 20 31 35 4 E4
AXCT8GE40201K5D1B 50 200 N4700 30 31 35 4 E4
AXCT8GC60301K5D1B 50 300 DL 48 26 30 4 C6
AXCT8GE40301K5D1B 50 300 N4700 38 36 40 4 E4
AXCT8GC60331K5D1B 50 330 DL 48 26 30 4 C6
AXCT8GE40391K5D1B 50 390 N4700 38 31 35 4 E4
AXCT8GE40401K5D1B 50 400 N4700 38 34 38 4 E4
AXCT8GD30401K5D1B 50 400 Y5T 30 33 37 4 D3
AXCT8GE40441K5D1B 50 440 N4700 38 31 35 4 E4
AXCT8GE40501K5D1B 50 500 N4700 40 36 40 4 E4
AXCT8GE40561K5D1B 50 560 N4700 40 33 37 4 E4
AXCT8GC60601K5D1B 50 600 DL 60 34 38 5 C6
AXCT8GS40701K5D1B 50 700 Y5S 38 36 40 4 S4
AXCT8GE40911K5D1B 50 910 N4700 48 34 38 4 E4
AXCT8GE40102K5D1B 50 1000 N4700 52 37 41 5 E4
AXCT8GD30102K5D1B 50 1000 Y5T 40 36 40 4 D3
AXCT8GE40112K5D1B 50 1100 N4700 52 34 38 4 E4
AXCT8GD30112K5D1B 50 1100 Y5T 48 34 38 4 D3
AXCT8GS40152K5D1B 50 1500 Y5S 48 38 42 4 S4
AXCT8GD50152K5D1B 50 1500 Y5T 48 36 40 4 D5
AXCT8GD31651K5D1B 50 1650 Y5T 58 36 40 5 D3
AXCT8GE40172K5D1B 50 1700 N4700 60 33 37 5 E4
AXCT8GE40182K5D1B 50 1800 N4700 70 40 44 5 E4
AXCT8GE40202K5D1B 50 2000 N4700 70 36 40 5 E4
AXCT8GD50202K5D1B 50 2000 Y5T 48 34 38 4 D5
AXCT8GE40212K5D1B 50 2100 N4700 70 36 40 5 E4

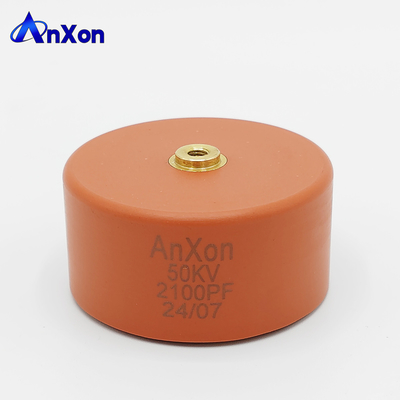

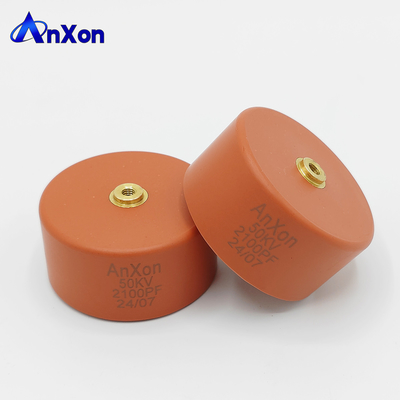

AXCT8GS40212K5D1B 50 2100 Y5S 52 36 40 5 S4
AXCT8GD30222K5D1B 50 2200 Y5T 60 39 43 5 D3
AXCT8GE40252K5D1B 50 2500 N4700 80 36 40 5 E4
AXCT8GD50252K5D1B 50 2500 Y5T 52 34 38 5 D5
AXCT8GE40302K5D1B 50 3000 N4700 80 33 37 5 E4
AXCT8GD30302K5D1B 50 3000 Y5T 60 31 35 5 D3
AXCT8GP30302K5D1B 50 3000 Y5P 60 33 37 5 P3
AXCT8GE40332K5D1B 50 3300 N4700 86 36 40 5 E4
AXCT8GE40402K5D1B 50 4000 N4700 86 32 36 5 E4
AXCT8GD30402K5D1B 50 4000 Y5T 80 35 39 5 D3
AXCT8GD50402K5D1B 50 4000 Y5T 60 33 37 5 D5
AXCT8GD50502K5D1B 50 5000 Y5T 70 36 40 5 D5
AXCT8GD50562K5D1B 50 5600 Y5T 80 36 40 5 D5
AXCT8GD50652K5D1B 50 6500 Y5T 80 36 40 5 D5
AXCT8GD50752K5D1B 50 7500 Y5T 86 36 40 5 D5
AXCT8GD50802K5D1B 50 8000 Y5T 86 36 40 5 D5
AXCT8GD50103K5D1B 50 10000 Y5T 86 31 35 5 D5


Product types



AnXon offers a variety of conventional ultra high voltage ceramic capacitors, but also can customize a variety of special-shaped capacitors according to customer requirements



CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B



Quick Select guide of mainly used ceramic dielectric



Dielectric class SL N4700 Y5T Y5S
Operating temperature range (ºC) -30/+85°C -30/+85°C -30/+85°C -30/+85°C
Capacitance change with temperature (%) +/-650PPM/°C +22/-33% +22/-33% +22/-22%
Typical dielectric constant 150~1000 1850~2150 2500~6500 3500~4500
Dielectric strength (kVDC/mm) 8.0 8.0 6.0 6.0
Dissipation factor (1kHz/1VRMS/20ºC) 0.06% 0.10% 0.20% 0.20%
Insulation resistance (1000VD/20ºC/60s) >1000GΩ >100GΩ >100GΩ >100GΩ
Rated voltage (UR) 10 to 150kVdc 10 to 150kVdc 10 to 150kVdc 10 to 150kVdc
Test voltage (UTT) (50Hz, in oil, 60s) 12 to 100kVrms 12 to 100kVrms 12 to 100kVrms 12 to 100kVrms
Impulse voltage(UI) 35 to 200kVdc 35 to 200kVdc 35 to 200kVdc 35 to 200kVdc
Capacitance range (20ºC – 1kHz – 1VRMS) 10pF to 500pF 10pF to 5600pF 10pF to 0.02uF 10pF to 0.02uF
Tolerance Standard: ±10% Standard: ±10% Standard: ±10% Standard: ±10%



Product applications



1. Used for high power pulse power supply, particle accelerator, electromagnetic microwave equipment, laser photoelectric equipment, electronic information equipment, radar detection, non-destructive testing X_RAY / CT machinery, material detection, electrostatic precipitator electric field, various types of special pulse power supply.

2. Supply of electricity, acceptance of interrupters of electrical equipment, zero-phase detection, breakers, surge arresters, voltage divider elements of high-voltage measurement equipment, and other circuits that use AC high voltage.

3. High voltage power supply circuit for laser equipment, directional energy/high-energy laser source.

4. High voltage power circuits or other DC high-voltage power circuits for various measurement devices.

5. Power storage, voltage divider and protection circuit.



High voltage doorknob ceramic capacitor applications



• Gas lasers

• High-voltage dividers

• Marx generators, Power generators

• High-voltage power supply, DC HV power supplies

• High-voltage coupling devices

• Power line coupling system for Internet & Telecom

• Lightning arresters, voltage distribution systems

• Electron microscopes, synchroscopes

• Electrostatic coating machines



High voltage doorknob ceramic capacitor Features



• Excellent behavior on pulse and fast discharge conditions

• Low dissipation factor

• Very low partial discharge

• Excellent voltage characteristic

• Molded type, Screw or Axial Leads available

• Coated and uncoated devices available



Quality control



High voltage doorknob ceramic capacitor from AnXon are 100% tested of the below parameters

• Capacitance

• Tolerance

• Dielectric withstanding voltage

• Dissipation Factor

• Insulation Resistance

• Partial discharge: as requested

• impulse voltage: sampling

Rigorous design standards, sophisticated production equipment, advanced production technology, and rigorous testing procedures are the quality assurance of AnXon ultra high voltage ceramic capacitors, and it is also the core of our continuous development and growth. Process and inspection data are maintained on file and available upon special request.



CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B



Company advantage



Since its establishment, Cixi AnXon Electronics Co., Ltd. has been committed to provide customers with proven, reliable and customized electronic components. After more than ten years of development, AnXon ceramic capacitor products have successfully replaced imported international brands AVX, TDK, Murata, Vishay also exports a large number of markets in North America, South America, Europe, Middle East and Southeast Asia. In particular, high voltage screw terminal ceramic capacitors, high voltage lead type disc ceramic capacitors, high voltage MLCC, high frequency high power ceramic capacitors, high voltage ceramic capacitors stacks and multiplier assembly, high temperature ceramic capacitors are greatly trusted by the majority of domestic and foreign customers. AnXon Electronics looking forward to cooperate with you in the near future.



CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B

CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B

CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B

CT8G 50KV 10000PF Y5T High Voltage Circuit Breaker Capacitor Mfg AXCT8GD50103K5D1B



FAQ
What are the Advantages of a High Voltage Doorknob Ceramic Capacitor?



In high voltage ceramic capacitors application field, requiring a small, high voltage and high frequency characteristics. With the progress of materials, electrodes and manufacturing technology, great progress has been made in the development of high voltage ceramic capacitors, and has been widely used. High voltage ceramic capacitors have become an indispensable component of high power high voltage electronic products.

  • Name: doorknob shape high voltage ceramic capacitor
  • Appearance of small size
  • Relative to other material more portable and reliable
  • Rapid pulse charge and discharge performance
  • Capacity with low temperature gradient
  • Under high or low temperature applications
  • Different shapes can be customized

Widely used in high power pulse power, particle accelerators, electromagnetic microwave equipment, laser photoelectric equipment, electronic equipment, radar detection, nondestructive testing, material, electrostatic dust removal electric field, all kinds of special pulse power supply, ect
