Product Details:
Payment & Shipping Terms:
|
| Capacitance: | 0.2UF | Rated Voltage: | 1000V |
|---|---|---|---|
| Max Current: | 400A | Peak Voltage: | 1410V |
| Stray Inductance: | ＜5nH | Max Power: | 300kVAr |
| Frequency Range: | 239-425kHz | Dimension: | 68x60x30.2mm |
| Weight: | 0.5Kg |
| Rated Voltage | Capacitance | Max Current | Peak voltage | Frequency | Stray Inductance |
Max power | Dimensions | Ordering Code |
| Vrms | uF | A | V | kHz | nH | kVAr | mm | |
| 1000 | 0.1 | 400 | 1410 | 478-847
|
＜5 | 300 | 68x60x30.2 | AXPS00U10K1000A4R0 |

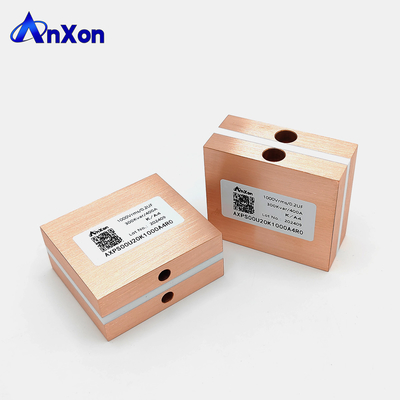

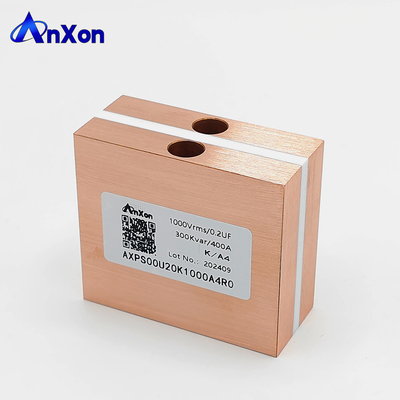

| 0.2 | 239-425 | AXPS00U20K1000A4R0 | ||||||
| 900 | 0.33 | 500 | 1270 | 179-402 | AXPS00U33K0900A4R0 | |||
| 800 | 0.66 | 1130 | 113-201 | AXPS00U66K0800A4R0 | ||||
| 700 | 1 | 650 | 990 | 97-224 | AXPS01U00K0700A4R0 | |||
| 1.32 | 74-170 | AXPS01U32K0700A4R0 | ||||||

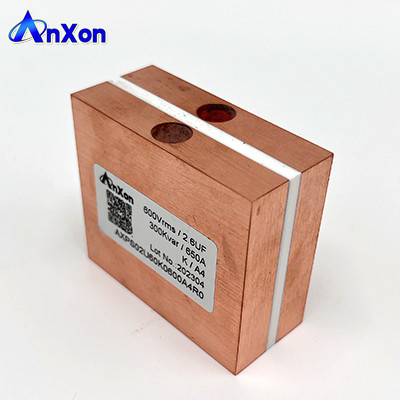

| 600 | 2.6 | 850 | 51-86 | AXPS02U60K0600A4R0 | ||||
| 500 | 5 | 800 | 710 | 38-68 | AXPS05U00K0500A4R0 |
AnXon power Film capacitors and foil-type high-frequency induction heating capacitors are widely used in induction heating, railways, plasma generators, magnetizers, electric power, new energy, medical equipment, wireless power transfer and auxiliary power supplies and resonant circuits applications.
AnXon power Film capacitors’ features are with a wide frequency range 5 Khz to 1 MHz, current ratings 200 to 1250 Arms, voltage ratings 400 to 1200 Vrms and power ratings 150 to 1000 KVAR.
AnXon high-frequency induction heating capacitor adopts a high-temperature-resistant polypropylene film and foil composite structure for non-inductive winding, a special spray gold process, a flame-retardant epoxy resin potting, and a copper plate electrode lead. It has the characteristics of small size, small stray inductance, strong over-current capability, and good stability. It is widely used in series and parallel LC resonant circuits of various medium and high-frequency electronic equipment. Installation is simple, convenient, and flexible.
Application
Induction heating
Plasma generators/Plasma applications
Medical equipment/Medical imaging
Magnetizers
Electric vehicle chargers
Auxiliary power supplies
Resonant circuits
Heat Treatment
Wireless Power Transfer
IPT
High Frequency Inverters
