Product Details:

Place of Origin: CN
Brand Name: AnXon
Certification: RoHS
Model Number: CT81

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: 0.1-99 USD/pc
Packaging Details: Bag + Box + Carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 500000/month
Detailed Product Description
Name: Leaded Disc Ceramic Capacitor Voltage: 20KV
Capacitance: 550pf Color: Blue
Dielectric: Y5T

Made in China Blue Disc Type AnXon 20KV 550PF Lasers Ceramic Capacitor

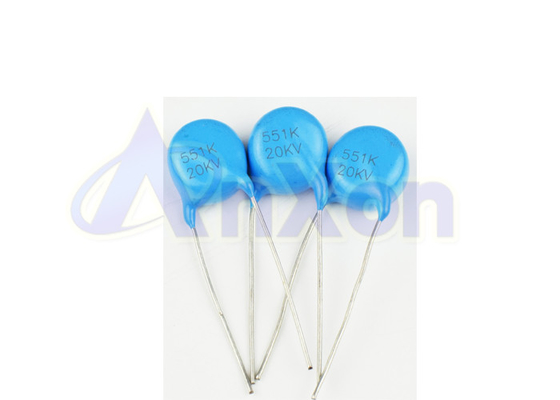

High Voltage Ceramic Capacitor 20KV 550PF, Leaded disc ceramic capacitor 20KV, 20KV 550PF high voltage ceramic capacitor China supplier AnXon Brand.



Rated Spec: 20KV 550PF , 20KV551
Tolerance: K, ±10%
Type: Radial leaded disc type
Ceramic Dielectric : Y5T
Operating Temperature: -30°C ~ 85°C
Size / Dimension(ΦD×T*F):

D:12.0mm, T:8.0mm, F:10.0mm



 High voltage disc ceramic capacitor Supplier, Manufacturer supply ceramic capacitors.



Made in China Blue Disc Type AnXon 20KV 550PF Lasers Ceramic Capacitor

.Related Products

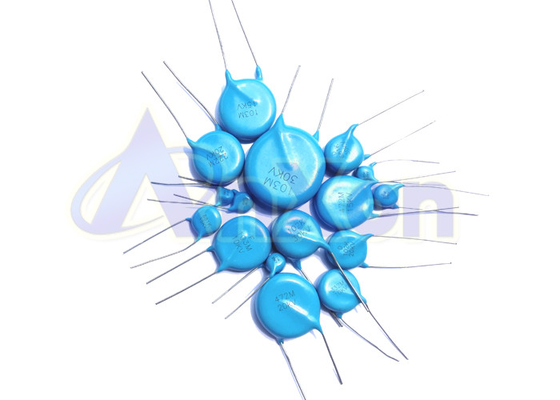

High Voltage Ceramic Capacitor 6KV, 10KV, 15KV, 20KV, 25KV, 30KV, 35KV, 40KV, 50KV Informations:



Part Number Spec. Voltage Capacitance Tolerance Dielectric D(mm) T(mm) F(mm)
AXCT81D6KV270K 6KV27pf 6KV 27pf K,±10% Y5T 7.4 3.6 7.5
AXCT81D6KV680K 6KV68pf 6KV 68pf K,±10% Y5T 12.0
AXCT81D6KV820K 6KV82pf 6KV 82pf K,±10% Y5T 6.0 5.5 8.0
AXCT81D6KV221K 6KV220pf 6KV 220pf K,±10% Y5T 4 2.5
AXCT81D6KV331K 6KV330pf 6KV 330pf K,±10% Y5T 4 2.5
AXCT81D6KV331K 6KV330pf 6KV 330pf K,±10% Y5T 8 3.5
AXCT81D6KV102K 6KV1000pf 6KV 1000pf K,±10% Y5T 9.8 4.8 10.0
AXCT81E6KV222M 6KV2200pf 6KV 2200pf M,±20% Y5U
AXCT81D6KV103M 6KV10000pf 6KV 10000pf M,±20% Y5T 15.5 6.0 10.0
AXCT81DL10KV470K 10KV47pf 10KV 47pf K,±10% DL 6.5 6.0 7.5
AXCT81D10KV101K 10KV100pf 10KV 100pf K,±10% Y5T 5.8 5.0 7.5
AXCT81D10KV221K 10KV220pf 10KV 220pf K,±10% Y5T 7.5 5.1 7.5
AXCT81D10KV331K 10KV330pf 10KV 330pf K,±10% Y5T 7.8 5.9 7.5
AXCT81D10KV471K 10KV470pf 10KV 470pf K,±10% Y5T 8.8 5.8 10.0
AXCT81D10KV681K 10KV680pf 10KV 680pf K,±10% Y5T 10.0 6.0 10.0
AXCT81D10KV102K 10KV1000pf 10KV 1000pf K,±10% Y5T 11.3 6.0 10.0
AXCT81D10KV102K 10KV1000pf 10KV 1000pf K,±10% Y5T 13.9 6.6 10.0
AXCT81D10KV102K 10KV1000pf 10KV 1000pf K,±10% Y5T 15.9 6.9 10.0
AXCT81D10KV222K 10KV2200pf 10KV 2200pf K,±10% Y5T 16.6 6.3 10.0
AXCT81E10KV222M 10KV2200pf 10KV 2200pf M,±20% Y5U 13.5 6.9 10.0
AXCT81D10KV332K 10KV3300pf 10KV 3300pf K,±10% Y5T 20.0 6.4 12.0
AXCT81E10KV332M 10KV3300pf 10KV 3300pf M,±20% Y5U 15.8 6.3 10.0
AXCT81E10KV472M 10KV4700pf 10KV 4700pf M,±20% Y5U 19.2 7.0 12.0
AXCT81F10KV682M 10KV6800pf 10KV 6800pf M,±20% Y5V 16.5 7.5 12.0
AXCT81F10KV103M 10KV10000pf 10KV 10000pf M,±20% Y5V 17.4 6.0 12.0
AXCT81F10KV103M 10KV10000pf 10KV 10000pf M,±20% Y5V 20.3 6.8 12.0
AXCT81D15KV470K 15KV47pf 15KV 47pf K,±10% Y5T
AXCT81D15KV560K 15KV56pf 15KV 56pf K,±10% Y5T
AXCT81D15KV101K 15KV100pf 15KV 100pf K,±10% Y5T 6.7 6.8 7.5
AXCT81D15KV221K 15KV220pf 15KV 220pf K,±10% Y5T 6.5 6.5 7.5
AXCT81D15KV331K 15KV330pf 15KV 330pf K,±10% Y5T 7.5 6.5 7.5
AXCT81D15KV471K 15KV470pf 15KV 470pf K,±10% Y5T 8.9 6.0 10.0
AXCT81D15KV681K 15KV680pf 15KV 680pf K,±10% Y5T 11.0 6.6 10.0
AXCT81D15KV102K 15KV1000pf 15KV 1000pf K,±10% Y5T 12.9 6.9 10.0
AXCT81D15KV102K 15KV1000pf 15KV 1000pf K,±10% Y5T 18.9 6.7 12.0
AXCT81D15KV152K 15KV1500pf 15KV 1500pf K,±10% Y5T 15.0 6.8 10.0
AXCT81D15KV222K 15KV2200pf 15KV 2200pf K,±10% Y5T 18.3 7.3 12.0
AXCT81E15KV332M 15KV3300pf 15KV 3300pf M,±20% Y5U 18.5 8.2 12.0
AXCT81E15KV472M 15KV4700pf 15KV 4700pf M,±20% Y5U 20.0 7.0 12.0
AXCT81F15KV682M 15KV6800pf 15KV 6800pf M,±20% Y5V 17.7 7.6 12.0
AXCT81F15KV103M 15KV10000pf 15KV 10000pf M,±20% Y5V 21.5 7.5 12.0
AXCT81SL20KV200K 20KV20pf 20KV 20pf K,±10% SL 9.5 8.0 10.0
AXCT81D20KV220K 20KV22pf 20KV 22pf K,±10% Y5T 9.0 7.5 10.0
AXCT81D20KV470K 20KV47pf 20KV 47pf K,±10% Y5T
AXCT81D20KV600K 20KV60pf 20KV 60pf K,±10% Y5T
AXCT81D20KV101K 20KV100pf 20KV 100pf K,±10% Y5T 6.7 6.8 7.5
AXCT81D20KV121K 20KV120pf 20KV 120pf K,±10% Y5T 6.2 6.0 7.5
AXCT81D20KV221K 20KV220pf 20KV 220pf K,±10% Y5T 6.9 7.0 7.5
AXCT81D20KV331K 20KV330pf 20KV 330pf K,±10% Y5T 8.4 7.0 7.5
AXCT81D20KV471K 20KV470pf 20KV 470pf K,±10% Y5T 10.1 7.4 10.0
AXCT81D20KV501K 20KV500pf 20KV 500pf K,±10% Y5T 11.6 8.0 10.0
AXCT81D20KV551K 20KV550pf 20KV 550pf K,±10% Y5T 12.0 8.0 10.0
AXCT81D20KV681K 20KV680pf 20KV 680pf K,±10% Y5T 12.2 8.2 10.0
AXCT81D20KV102K 20KV1000pf 20KV 1000pf K,±10% Y5T 14.4 8.1 10.0
AXCT81D20KV102K 20KV1000pf 20KV 1000pf K,±10% Y5T 17.0 8.6 12.0
AXCT81D20KV102K 20KV1000pf 20KV 1000pf K,±10% Y5T 19.4 7.9 12.0
AXCT81E20KV102K 20KV1000pf 20KV 1000pf K,±10% Y5U 11.3 7.6 10.0
AXCT81D20KV152K 20KV1500pf 20KV 1500pf K,±10% Y5T 17.3 8.4 10.0
AXCT81D20KV222K 20KV2200pf 20KV 2200pf K,±10% Y5T 20.5 8.4 12.0
AXCT81E20KV332M 20KV3300pf 20KV 3300pf M,±20% Y5U 20.2 8.2 12.0
AXCT81E20KV472M 20KV4700pf 20KV 4700pf M,±20% Y5U 22.5 8.4 12.0
AXCT81F20KV682M 20KV6800pf 20KV 6800pf M,±20% Y5V 20.0 8.7 12.0
AXCT81F20KV103M 20KV10000pf 20KV 10000pf M,±20% Y5V 23.4 8.4 12.0
AXCT81D25KV101K 25KV100pf 25KV 100pf K,±10% Y5T 7.6 8.1 7.5
AXCT81D25KV221K 25KV220pf 25KV 220pf K,±10% Y5T 8.5 8.2 7.5
AXCT81D25KV331K 25KV330pf 25KV 330pf K,±10% Y5T 9.2 8.4 10.0
AXCT81D25KV471K 25KV470pf 25KV 470pf K,±10% Y5T 10.4 8.1 10.0
AXCT81D25KV681K 25KV680pf 25KV 680pf K,±10% Y5T 12.8 8.9 10.0
AXCT81D25KV102K 25KV1000pf 25KV 1000pf K,±10% Y5T 15.1 8.9 12.0
AXCT81D25KV222M 25KV2200pf 25KV 2200pf M,±20% Y5T 21.7 9.4 12.0
AXCT81F25KV472M 25KV4700pf 25KV 4700pf M,±20% Y5V 16.7 8.7 12.0
AXCT81F25KV103M 25KV10000pf 25KV 10000pf M,±20% Y5V 25.0 10.4 16.0
AXCT81SL30KV220K 30KV22pf 30KV 22pf K,±10% SL 11.0 10.0 10.0
AXCT81D30KV101K 30KV100pf 30KV 100pf K,±10% Y5T 7.5 8.6 10.0
AXCT81D30KV151K 30KV150pf 30KV 150pf K,±10% Y5T 9.3 11.0 15.0
AXCT81D30KV221K 30KV220pf 30KV 220pf K,±10% Y5T 10.6 10.5 15.0
AXCT81D30KV331K 30KV330pf 30KV 330pf K,±10% Y5T 10.6 10.0 10.0
AXCT81D30KV471K 30KV470pf 30KV 470pf K,±10% Y5T 11.2 9.7 12.0
AXCT81D30KV501K 30KV500pf 30KV 500pf K,±10% Y5T 12.0 9.0 12.0
AXCT81D30KV681K 30KV680pf 30KV 680pf K,±10% Y5T 13.2 9.7 12.0
AXCT81D30KV102K 30KV1000pf 30KV 1000pf K,±10% Y5T 16.7 9.9 12.0
AXCT81D30KV202K 30KV2000pf 30KV 2000pf K,±10% Y5T 24.0 11.0 14.0
AXCT81D30KV222M 30KV2200pf 30KV 2200pf M,±20% Y5T 23.2 10.3 14.0
AXCT81D30KV222M 30KV2200pf 30KV 2200pf M,±20% Y5T 26.0 12.7 18.0
AXCT81E30KV332M 30KV3300pf 30KV 3300pf M,±20% Y5U 22.1 12.2 13.0
AXCT81F30KV472M 30KV4700pf 30KV 4700pf M,±20% Y5V 21.2 12.5 15.0
AXCT81F30KV682M 30KV6800pf 30KV 6800pf M,±20% Y5V
AXCT81F30KV103M 30KV10000pf 30KV 10000pf M,±20% Y5V 28.0 11.7 16.0
AXCT81F30KV103M 30KV10000pf 30KV 10000pf M,±20% Y5V 31.0 14.2 16.0
AXCT81SL40KV500K 40KV50pf 40KV 50pf K,±10% SL 22.0 16.3 16.0
AXCT81D40KV101K 40KV100pf 40KV 100pf K,±10% Y5T 7.5 11.2 10.0
AXCT81D40KV251K 40KV250pf 40KV 250pf K,±10% Y5T 9.7 11.5 12.0
AXCT81D40KV501K 40KV500pf 40KV 500pf K,±10% Y5T 14.4 13.5 15.0
AXCT81D40KV102K 40KV1000pf 40KV 1000pf K,±10% Y5T 19.2 13.0 17.5
AXCT81E40KV222M 40KV2200pf 40KV 2200pf M,±20% Y5U 21.1 13.8 16.0
AXCT81D40KV222M 40KV2200pf 40KV 2200pf M,±20% Y5T 33.0 17.0 18.0
AXCT81D50KV220K 50KV22pf 50KV 22pf K,±10% Y5T 15.0 16.5 15.0
AXCT81D50KV251K 50KV250pf 50KV 250pf K,±10% Y5T 10.7 13.3 16.0
AXCT81D50KV501K 50KV500pf 50KV 500pf K,±10% Y5T 15.4 15.1 16.0
AXCT81D50KV561K 50KV560pf 50KV 560pf K,±10% Y5T 26.8 20.7 25.0
AXCT81D50KV102K 50KV1000pf 50KV 1000pf K,±10% Y5T 22.0 17.1 16.0
AXCT81E50KV222K 50KV2200pf 50KV 2200pf M,±20% Y5U 25.2 17.9 20.0
AXCT81E50KV222K 50KV2200pf 50KV 2200pf M,±20% Y5U



HV Capacitor Disc Ceramic Application Guide

• TV and monitors, Color TV doublers and triplers

• DC and pulse high voltage

• X-ray equipment, Medical power supplies

• High voltage DC power supplies (PPCs, X-ray apparatus, air cleaner, lasers, etc.)

•Tuning capacitor in focus circuit for display

• Voltage multipliers

• By-pass circuits, Coupling circuits, Filters

• SMPS



HV Capacitor Ceramic Disc Features

• Low losses, High stability

• High capacitance in small sizes

• Radial leads

• Ceramic single layer capacitor

• Excellent heat-proof, humidity-proof and high dielectric strength voltage.

• Coated with flame-retardant epoxy resin.
