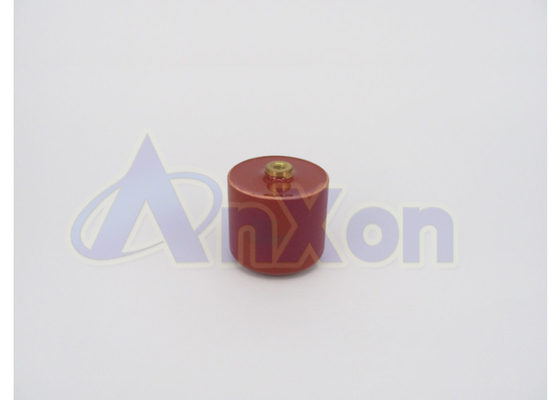

AnXon Capacitor High Voltage Ceramic 7.2KVrms 250PF Doorkonb Ceramic Capacitor

I'm Online Chat Now

AnXon Capacitor High Voltage Ceramic 7.2KVrms 250PF Doorkonb Ceramic Capacitor

China AnXon Capacitor High Voltage Ceramic 7.2KVrms 250PF Doorkonb Ceramic Capacitor supplier
AnXon Capacitor High Voltage Ceramic 7.2KVrms 250PF Doorkonb Ceramic Capacitor supplier AnXon Capacitor High Voltage Ceramic 7.2KVrms 250PF Doorkonb Ceramic Capacitor supplier

Large Image :  AnXon Capacitor High Voltage Ceramic 7.2KVrms 250PF Doorkonb Ceramic Capacitor

Product Details:

Place of Origin: CN
Brand Name: AnXon
Model Number: CT8G

Payment & Shipping Terms:

Minimum Order Quantity: 50
Packaging Details: Foam + Carton
Delivery Time: 25-28 days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 10000/Month
Detailed Product Description
Voltage: 7.2KVrms Capacitance: 250PF
Dielectric: Y5P

Product Name: AnXon Capacitor High Voltage Ceramic 7.2KVrms 250PF Doorkonb Ceramic Capacitor



High Voltage Ceramic Capacitor 7.2KVrms 250PF, Molded type Ultra-high Voltage Ceramic Capacitors 7.2KVAC 251 high voltage doorknob capacitor, UHV doorknob ceramic capacitor offered by AnXon Electronic



Rated Spec: 7.2KVrms 250PF , 7.2KV251
AnXon P/N AXCT8GD251K7K2DA
Tolerance: K, ±10%
Type: Molded / Doorknob / Screw Mounting
Ceramic Dielectric : Y5P
Operating Temperature: -30C ~ 85C
Size / Dimension(ΦD×T*H):

D:26mm, H:31mm



High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:

  • Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
  • Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
  • Impulse Voltage: 45KVdc-225KVdc
  • Capacitance Range: 10pF - 100000pF
  • Operating frequency: 20KHZ-1000KHZ
  • Materials: N4700, Y5T, Y5P, Y5V, Y5U

High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer.



Rated Products

Part No. Spec. Dimension(mm) Replacement of P/ N.
  D H L M
CT8G15KVDL371K 15KV 370PF 20 20 24 5 DHS4E4C371KC2B
CT8G15KVDL561K 15KV 560PF 28 18 22 5 HP30EX0561M
CT8G15KVDL751M 15KV 750PF 28 18 22 5 HP30EX0751M
CT8G15KVDL102K 15KV 1000PF 30 18 22 5 HP30EX0102M
CT8G15KVDL112K 15KV 1100PF 30 14 18 4 DHS4E4C112KH2B
CT8G15KVDL152K 15KV 1500PF 38 18 22 5 HP40EX0152M
CT8G15KVDL182K 15KV 1800PF 38 18 22 5 HP40EX0182M
CT8G15KVDL192K 15KV 1900PF 38 14 18 4 DHS4E4C192KL2B
CT8G15KVDL202K 15KV 2000PF 38 18 22 5 HP40EX0202M
CT8G15KVDL222M 15KV 2200PF 45 18 22 5
CT8G15KVDL252K 15KV 2500PF 48 18 22 5 HP50EX0252M
CT8G15KVDL272K 15KV 2700PF 48 18 22 5 HP50EX0272M
CT8G15KVDL302M 15KV 3000PF 45 18 22 5
CT8G15KVDL332K 15KV 3300PF 48 18 22 5 HP50EX0332M
CT8G15KVDL342K 15KV 3400PF 52 14 18 4 DHS4E4C342KR2B
CT8G15KVDL372K 15KV 3700PF 58 18 22 5 HP60EX0372M
CT8G15KVDL402K 15KV 4000PF 58 18 22 5 HP60EX0402M
CT8G15KVDL472M 15KV 4700PF 58 18 22 5 715C15DKD47
CT8G15KVDL502M 15KV 5000PF 58 18 22 5 HP60EX0502M
CT8G15KVDL532M 15KV 5300PF 60 14 18 4 DHS4E4C532KT2B
CT8G15KVDL562M 15KV 5600PF 58 18 22 5 HP60EX0562M
CT8G15KVDL702M 15KV 7000PF 60 18 22 5 FHV-153AN



HV Capacitor Application Guide

• Gas lasers

• High-voltage dividers

• Marx generators, Power generators

• High-voltage power supply, DC HV power supplies

• High-voltage coupling devices

• Power line coupling system for Internet & Telecom

• Lightning arresters, voltage distribution systems

• Electron microscopes, synchroscopes

• Electrostatic coating machines



HV Doorknob Capacitor Features

• Excellent behavior on pulse and fast discharge conditions

• Low dissipation factor

• Very low partial discharge

• Excellent voltage characteristic

• Molded type, Screw or Axial Leads available

• Coated and uncoated devices available

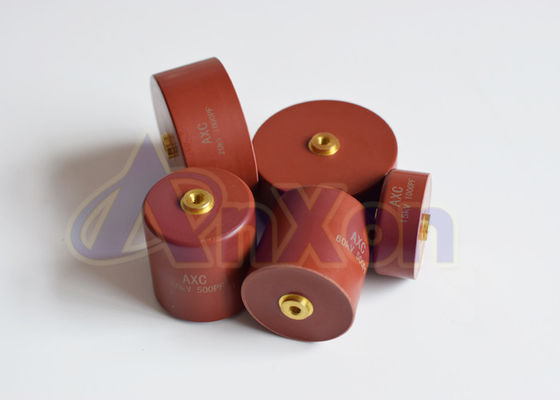

power pulse ceramic capacitor.jpg



power pulse ceramic capacitor.jpg



power pulse ceramic capacitor.jpg



power pulse ceramic capacitor.jpg



power pulse ceramic capacitor.jpg



AnXon Capacitor High Voltage Ceramic 7.2KVrms 250PF Doorkonb Ceramic Capacitor



AnXon Capacitor High Voltage Ceramic 7.2KVrms 250PF Doorkonb Ceramic Capacitor
