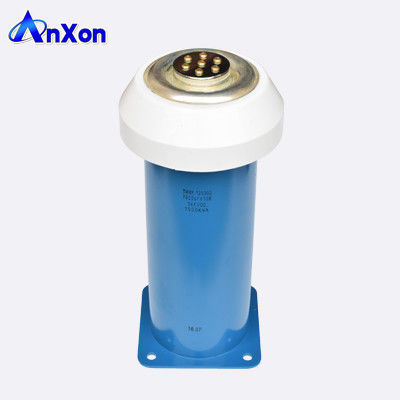

TWXF142314 24KV 5000PF 3000KVA Low losses ceramic water cooled RF power capacitor



Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. AnXon specializes in the development and production of dielectric and ferroelectric materials and components. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.



TWXF142314 24KV 5000PF 3000KVA Low losses ceramic water cooled RF power capacitor



Part No. Spec. Dimensions
D(mm) H(mm) H1(mm) H2(mm) d
TWXF095220 12KV 5000PF 1275KVA 95 220 18 110 7-M5
TWXF095162 14KV 1500PF 1000KVA 95 162 18 55 7-M5
TWXF095162 14KV 2000PF 1500KVA 95 162 18 55 7-M5
TWXF095162 14KV 2200PF 1500KVA 95 162 18 55 7-M5
TWXF095162 14KV 2500PF 1500KVA 95 162 18 55 7-M5
TWXF110250 14KV 4000PF 2000KVA 110 250 20 115 7-M5
TWXF110250 14KV 5000PF 2000KVA 110 250 20 115 7-M5
TWXF125300 14KV 7600PF 2500KVA 125 300 30 180 7-M5
TWXF125405 14KV 10000PF 2800KVA 125 405 30 280 7-M5
TWXF135218 16KV 4000PF 2500KVA 135 218 22 108 7-M5
TWXF135250 16KV 5000PF 2830KVA 135 250 22 128 7-M5
TWXF135272 16KV 6000PF 2830KVA 135 272 22 134 7-M5
TWXF095162 20KV 500PF 1000KVA 95 162 18 55 7-M5
TWXF110195 20KV 600PF 2000KVA 110 195 20 80 7-M5
TWXF110195 20KV 1000PF 2000KVA 110 195 20 80 7-M5
TWXF135242 20KV 2000PF 2000KVA 135 242 22 108 7-M5
TWXF135242 20KV 3000PF 2000KVA 135 242 22 108 7-M5
TWXF135285 20KV 5000PF 3000KVA 135 285 22 134 7-M5
TWXF135320 20KV 6000PF 3000KVA 135 320 22 170 7-M5
TWXF142285 24KV 4000PF 3000KVA 142 285 25 134 7-M5
TWXF142314 24KV 5000PF 3000KVA 142 314 25 134 7-M5
TWXF135242 25KV 2500PF 2500KVA 135 242 22 108 7-M5
CCGSF-4 30KV 5000PF 3500KVA 158 340 30 170 M10



Related Products



High frequency high power RF ceramic capacitors one stop solutions by AnXon



These capacitors are used in oscillators, coupling circuits or bypass capacitors in industrial or medical high frequency equipment. They are suitable to use as coupling capacitors for transmission line and carrier frequency equipment. X-ray equipment, broadcast equipment, induction heating power supplies (tube and solid state), cable fault finders, plasma generators, RF power supplies, dielectric heating, lasers and more.



TWXF142314 24KV 5000PF 3000KVA Low losses ceramic water cooled RF power capacitor



Product Type



AnXon High frequency high power RF Watercooled ceramic capacitors Features



Low loss Class 1 ceramic dielectric materials
Noble metal electrodes with low self heating
Very low capacitance-temperature characteristics available
Correspondingly low tuned frequency drift.
Low Inductance construction, higher frequency use
High voltage, High Reactive Power Ratings
Low magnetic susceptibility



TWXF142314 24KV 5000PF 3000KVA Low losses ceramic water cooled RF power capacitor



Product Application



AnXon High frequency high power RF watercooled ceramic capacitors Applications



Radio broadcast transmitters
HF filter, By-Pass & Coupling Circuits
High power matching tuned circuits, Antenna circuits
High power matching networks, Plasma Generators
High quality medical imaging systems (MRI)
Induction and Dielectric Heating Equipment
Industrial Applications



TWXF142314 24KV 5000PF 3000KVA Low losses ceramic water cooled RF power capacitor



Quality Control



AnXon High frequency high power RF plate ceramic capacitors are 100% tested of the below parameters



• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.
