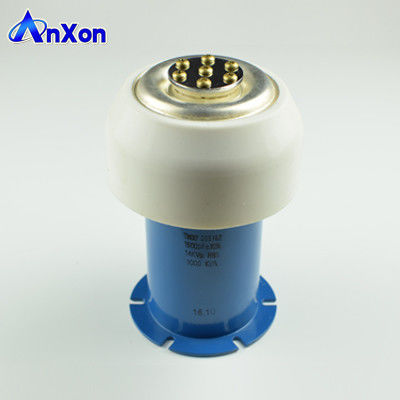

Name: | Watercooled Capacitor | Dielectric: | R85, N750 |
---|---|---|---|
Voltage: | 12kV~30kV | Capacitance: | 1500pF~10000pF |
Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. AnXon specializes in the development and production of dielectric and ferroelectric materials and components. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.
Part No. | Spec. | Dimensions | ||||
D(mm) | H(mm) | H1(mm) | H2(mm) | d | ||
TWXF095220 | 12KV 5000PF 1275KVA | 95 | 220 | 18 | 110 | 7-M5 |
TWXF095162 | 14KV 1500PF 1000KVA | 95 | 162 | 18 | 55 | 7-M5 |
TWXF095162 | 14KV 2000PF 1500KVA | 95 | 162 | 18 | 55 | 7-M5 |
TWXF095162 | 14KV 2200PF 1500KVA | 95 | 162 | 18 | 55 | 7-M5 |
TWXF095162 | 14KV 2500PF 1500KVA | 95 | 162 | 18 | 55 | 7-M5 |
TWXF110250 | 14KV 4000PF 2000KVA | 110 | 250 | 20 | 115 | 7-M5 |
TWXF110250 | 14KV 5000PF 2000KVA | 110 | 250 | 20 | 115 | 7-M5 |
TWXF125300 | 14KV 7600PF 2500KVA | 125 | 300 | 30 | 180 | 7-M5 |
TWXF125405 | 14KV 10000PF 2800KVA | 125 | 405 | 30 | 280 | 7-M5 |
TWXF135218 | 16KV 4000PF 2500KVA | 135 | 218 | 22 | 108 | 7-M5 |
TWXF135250 | 16KV 5000PF 2830KVA | 135 | 250 | 22 | 128 | 7-M5 |
TWXF135272 | 16KV 6000PF 2830KVA | 135 | 272 | 22 | 134 | 7-M5 |
TWXF095162 | 20KV 500PF 1000KVA | 95 | 162 | 18 | 55 | 7-M5 |
TWXF110195 | 20KV 600PF 2000KVA | 110 | 195 | 20 | 80 | 7-M5 |
TWXF110195 | 20KV 1000PF 2000KVA | 110 | 195 | 20 | 80 | 7-M5 |
TWXF135242 | 20KV 2000PF 2000KVA | 135 | 242 | 22 | 108 | 7-M5 |
TWXF135242 | 20KV 3000PF 2000KVA | 135 | 242 | 22 | 108 | 7-M5 |
TWXF135285 | 20KV 5000PF 3000KVA | 135 | 285 | 22 | 134 | 7-M5 |
TWXF135320 | 20KV 6000PF 3000KVA | 135 | 320 | 22 | 170 | 7-M5 |
TWXF142285 | 24KV 4000PF 3000KVA | 142 | 285 | 25 | 134 | 7-M5 |
TWXF142314 | 24KV 5000PF 3000KVA | 142 | 314 | 25 | 134 | 7-M5 |
TWXF135242 | 25KV 2500PF 2500KVA | 135 | 242 | 22 | 108 | 7-M5 |
CCGSF-4 | 30KV 5000PF 3500KVA | 158 | 340 | 30 | 170 | M10 |
These capacitors are used in oscillators, coupling circuits or bypass capacitors in industrial or medical high frequency equipment. They are suitable to use as coupling capacitors for transmission line and carrier frequency equipment. X-ray equipment, broadcast equipment, induction heating power supplies (tube and solid state), cable fault finders, plasma generators, RF power supplies, dielectric heating, lasers and more.
Low loss Class 1 ceramic dielectric materials
Noble metal electrodes with low self heating
Very low capacitance-temperature characteristics available
Correspondingly low tuned frequency drift.
Low Inductance construction, higher frequency use
High voltage, High Reactive Power Ratings
Low magnetic susceptibility
Radio broadcast transmitters
HF filter, By-Pass & Coupling Circuits
High power matching tuned circuits, Antenna circuits
High power matching networks, Plasma Generators
High quality medical imaging systems (MRI)
Induction and Dielectric Heating Equipment
Industrial Applications
• Capacitance
• Tolerance
• Dielectric withstanding voltage
• Dissipation Factor
• Insulation Resistance
Process and inspection data are maintained on file and available upon special request.
