2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode

I'm Online Chat Now

2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode

China 2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode supplier
2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode supplier 2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode supplier 2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode supplier 2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode supplier 2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode supplier

Large Image :  2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode

Product Details:

Place of Origin: CN
Brand Name: China
Model Number: 2×2CLG10KV/1A

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: USD 2-3 /piece
Packaging Details: Plastic bag + Box + Carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 100000 piece per week
Detailed Product Description
Product Name: High Voltage Diode Repetitive Peak Reverse Voltage: 7.5-300KV
Average Forward Current: 0.1-6A Reverse Recovery Time: 80-200nS
Maximum Surge Current: 0.5-120A Peak Forward Voltage: 11-400V
Peak Reverse Current (Irrm1): 5uA Peak Reverse Current (Irrm2): 50uA
Package: Through Hole Operation Temperature: -40~+100℃

Product Description



2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode



Product name: 2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode



Items
Symbols
Condition
2×2CLG10KV/1A
Units
Repetitive Peak Reverse Voltage
VRRM
TA=25°C, IR=0.5μA
2×10
KV
Max Average Forward Current
IFAVM
50Hz at TA=55°C
1
A
Max Reverse Recovery Time
Trr
TA=25°C
150
nS
Max Surge Current
IFSM

30
A
Max Forward Voltage Drop
VFM
TA=25°C
2×12
V
Max Reverse Current
IRRM1
TA=25°C & VRRM
5
μA
IRRM2
TA=100°C & VRRM
50
μA
Operating Temperature
Ta

-40~+100
°C
Storage Temperature
Tstg

-40~+120
°C



Out Drawing





2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode

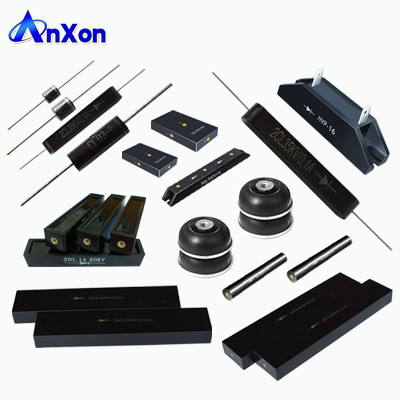

Related Products



2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode



2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode

Application



2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode



Features                                                         Applications
• High speed switching                                      • High voltage, Medium Power
• High voltage power supply                              • High voltage generator
• High reliability design                                      • Small package, Epoxy resin
• Voltage multiplier assembly                             • Microwave Power



Packing & Delivery



2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode



Our Company



2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode



Contact us
2×2CLG10KV/1A 2×10KV 1A 150nS Through Hole Global Market Rectifier Diode
