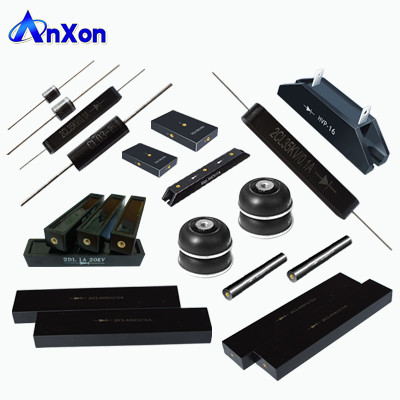

Product Name: | High Voltage Diode | Repetitive Peak Reverse Voltage: | 7.5-300KV |
---|---|---|---|
Average Forward Current: | 0.1-6A | Reverse Recovery Time: | 80-200nS |
Maximum Surge Current: | 0.5-120A | Peak Forward Voltage: | 11-400V |
Peak Reverse Current (Irrm1): | 5uA | Peak Reverse Current (Irrm2): | 50uA |
Package: | Through Hole | Operation Temperature: | -40~+100℃ |

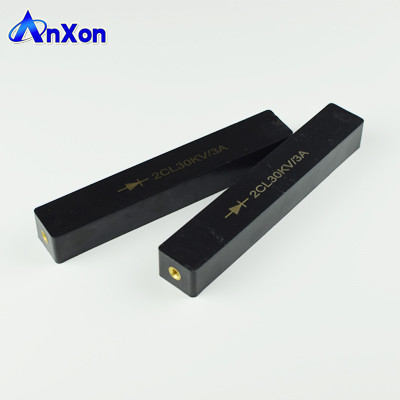

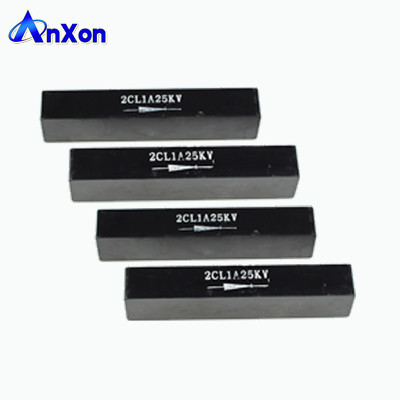

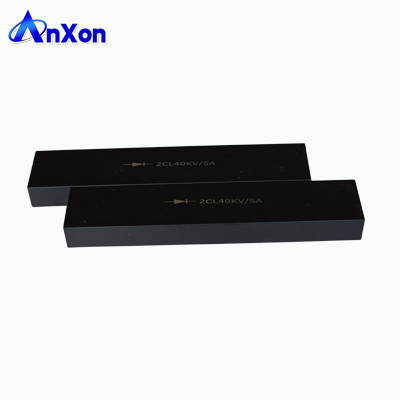

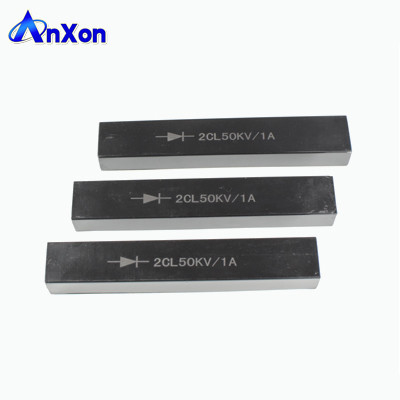

Product name: 2×2CLG30KV/1A 2×30KV 1A 150nS Fast Recovery Rectifier Device Silicon High Voltage Diode
Items
|
Symbols
|
Condition
|
2×2CLG30KV/1A
|
Units
|
Repetitive Peak Reverse Voltage
|
VRRM
|
TA=25°C, IR=0.5μA
|
2×30 |
KV
|
Max Average Forward Current
|
IFAVM
|
50Hz at TA=55°C
|
1 |
A
|
Max Reverse Recovery Time
|
Trr
|
TA=25°C
|
150 |
nS
|
Max Surge Current
|
IFSM
|
|
30 |
A
|
Max Forward Voltage Drop
|
VFM
|
TA=25°C
|
2×60 |
V
|
Max Reverse Current
|
IRRM1
|
TA=25°C & VRRM
|
5 |
μA
|
IRRM2
|
TA=100°C & VRRM
|
50
|
μA
|
|
Operating Temperature
|
Ta
|
|
-40~+100
|
°C
|
Storage Temperature
|
Tstg
|
|
-40~+120
|
°C
|
Features Applications
• High speed switching • High voltage, Medium Power
• High voltage power supply • High voltage generator
• High reliability design • Small package, Epoxy resin
• Voltage multiplier assembly • Microwave Power
