750V 3.0UF Power Film Capacitors for High Frequency Inverters

I'm Online Chat Now

750V 3.0UF Power Film Capacitors for High Frequency Inverters

China 750V 3.0UF Power Film Capacitors for High Frequency Inverters supplier
750V 3.0UF Power Film Capacitors for High Frequency Inverters supplier 750V 3.0UF Power Film Capacitors for High Frequency Inverters supplier 750V 3.0UF Power Film Capacitors for High Frequency Inverters supplier 750V 3.0UF Power Film Capacitors for High Frequency Inverters supplier

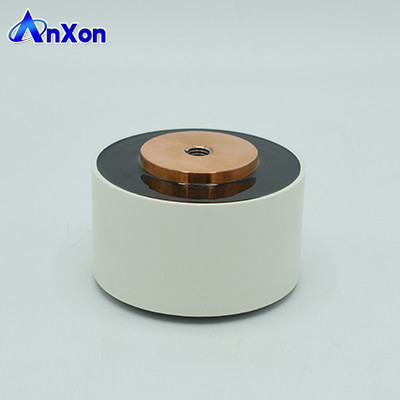

Large Image :  750V 3.0UF Power Film Capacitors for High Frequency Inverters

Product Details:

Place of Origin: China
Brand Name: AnXon
Certification: RoHs
Model Number: SN0500STM8 (D1)

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: CNY / USD / EUR
Packaging Details: Pearl cotton + Carton
Delivery Time: 18-20 days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 9000-10000pcs
Contact Now
Detailed Product Description
Capacitance: 3.0UF Rated Voltage: 750V
Peak Voltage: 1060V Max Current: 800A
Max Power: 500kVAr Frequency Range: 47-68
Inductance: <10nH Dimension: D=80mm H=56mm L=71.5mm
Weight: 1.1kg

750V 3.0UF Power Film Capacitors for High Frequency Inverters

Product Description
750V 3.0UF Power Film Capacitors for High Frequency Inverters

Type SN0500STM8 (D1)
Rated Voltage Vrms 1100 750 900 700 500 550 500
Capacitance
(±10%)
μF 1.40 3.00 4.00 6.30 8.50 10.00 21.00 27.00 37.00
Peak Voltage V 1560 1060 1270 990 710 780 710
Current Arms 600 800 700 1000
Max.Power kVAr 500
Freq. Range
@FullPower
kHz 47-82 47-68 25-39 26-51 19-37 16-32 15-51 10-12 9-9
Stray Inductance nH < 10
Dimensions(D) mm Φ80 Φ101 Φ80 Φ88 Φ94 Φ80 Φ101
Weight Kg 1.1 1.4 1.1 1.2 1.3 1.1 1.5


 750V 3.0UF Power Film Capacitors for High Frequency Inverters

AnXon power Film capacitors and foil-type high-frequency induction heating capacitors are widely used in induction heating, railways, plasma generators, magnetizers, electric power, new energy, medical equipment, wireless power transfer and auxiliary power supplies and resonant circuits applications.
AnXon power Film capacitors’ features are with a wide frequency range 5 Khz to 1 MHz, current ratings 200 to 1250 Arms, voltage ratings 400 to 1200 Vrms and power ratings 150 to 1000 KVAR.
AnXon high-frequency induction heating capacitor adopts a high-temperature-resistant polypropylene film and foil composite structure for non-inductive winding, a special spray gold process, a flame-retardant epoxy resin potting, and a copper plate electrode lead. It has the characteristics of small size, small stray inductance, strong over-current capability, and good stability. It is widely used in series and parallel LC resonant circuits of various medium and high-frequency electronic equipment. Installation is simple, convenient, and flexible.

Application


Induction heating
Plasma generators/Plasma applications
Medical equipment/Medical imaging
Magnetizers
Electric vehicle chargers
Auxiliary power supplies
Resonant circuits
Heat Treatment
Wireless Power Transfer
IPT
High Frequency Inverters
